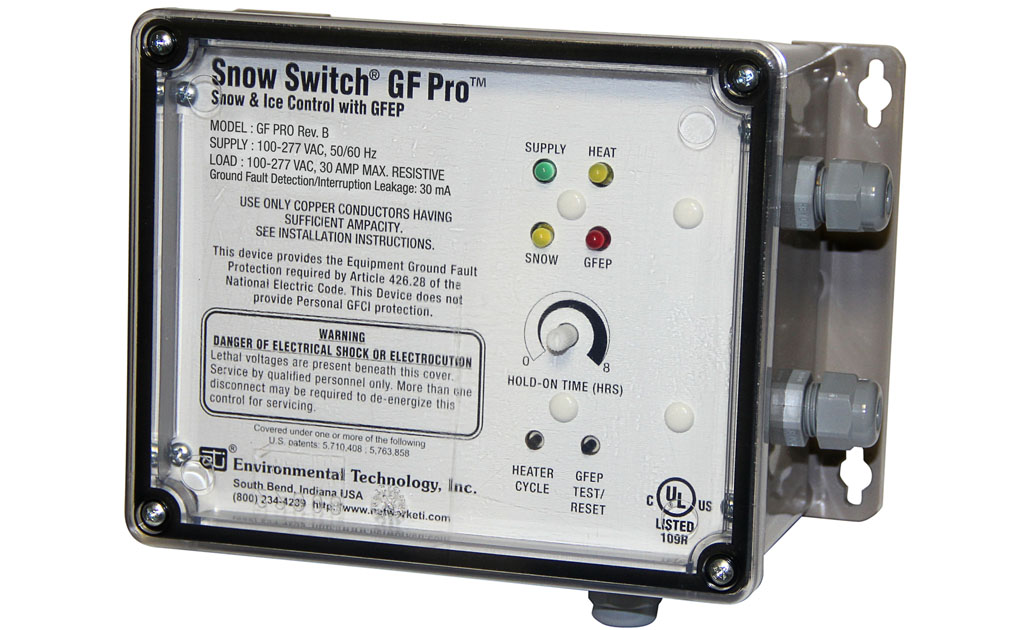

The Snow Switch Model GF Pro is an automatic snow and ice melting control system. Utilizing standard snow and ice sensors (sold separately), applications include snow and ice detection and melting for pavement, sidewalks, loading docks, roofs, gutters and downspouts in commercial and residential environments.
- Automatic snow and ice melting control
- Supply Voltage: 100 –277 VAC; 50/60 Hz
- Rated for up to 30 amp resistive loads
- Integral 30mA of Ground Fault Equipment Protection (GFEP)
- Weather-resistant NEMA 4X enclosure
- Adjustable Hold-On timer continues heater operation after snow and ice stop to ensure complete melting
- Dual sensor capability to meet site performance requirements
- Automatic and manual-override operator controls for changing environmental conditions
- Imported to King Specifications
Available Models
Ordering Information - Snow Melt Controls
| MODEL | UPC | DESCRIPTION |
|---|---|---|
| DS-2C | 42331 | Rain/Snow controller w/built-in sensor, 100-277V - 30amp w/Adjustable Temperature Trigger Points, used for snow melt cable projects |
| DS-5C | 42332 | Rain/Snow controller w/built-in sensor, 100-277V - 2-30amp w/Adjustable Temperature Trigger Points, used for snow melt cable projects |
| GF PRO | 40497 | GF Snow Switcj 100-277VAC w/ GFEP Protection |
| SIT-6E | 40505 | SIT-6E Pavement Sensor (requires 23832 Pavement Sensor Housing) |
| 23832 Sensor Housing | 40506 | Snow Melt Pavement Sensor Housing (For SIT-6E HSC-4 HSC-5) |
| CIT-1 | 40504 | CIT Aerial Snow Sensor |
| SMNPLT | 40507 | Snow Melt Name Plate |
| SCS1 | 40502 | Cable Strapping 25', Metal for Concrete Slab |
