KRF-24V-KIT is a 24-Volt RF wireless thermostat platform designed for virtually every type of HVAC system. Designed for applications where you don’t have enough wires, have a broken wire, or if you are adding equipment like an add-on heat pump or a multi-stage system—without the need to run additional wires. The kit includes a 7-day programmable thermostat and a 24V HVAC relay.

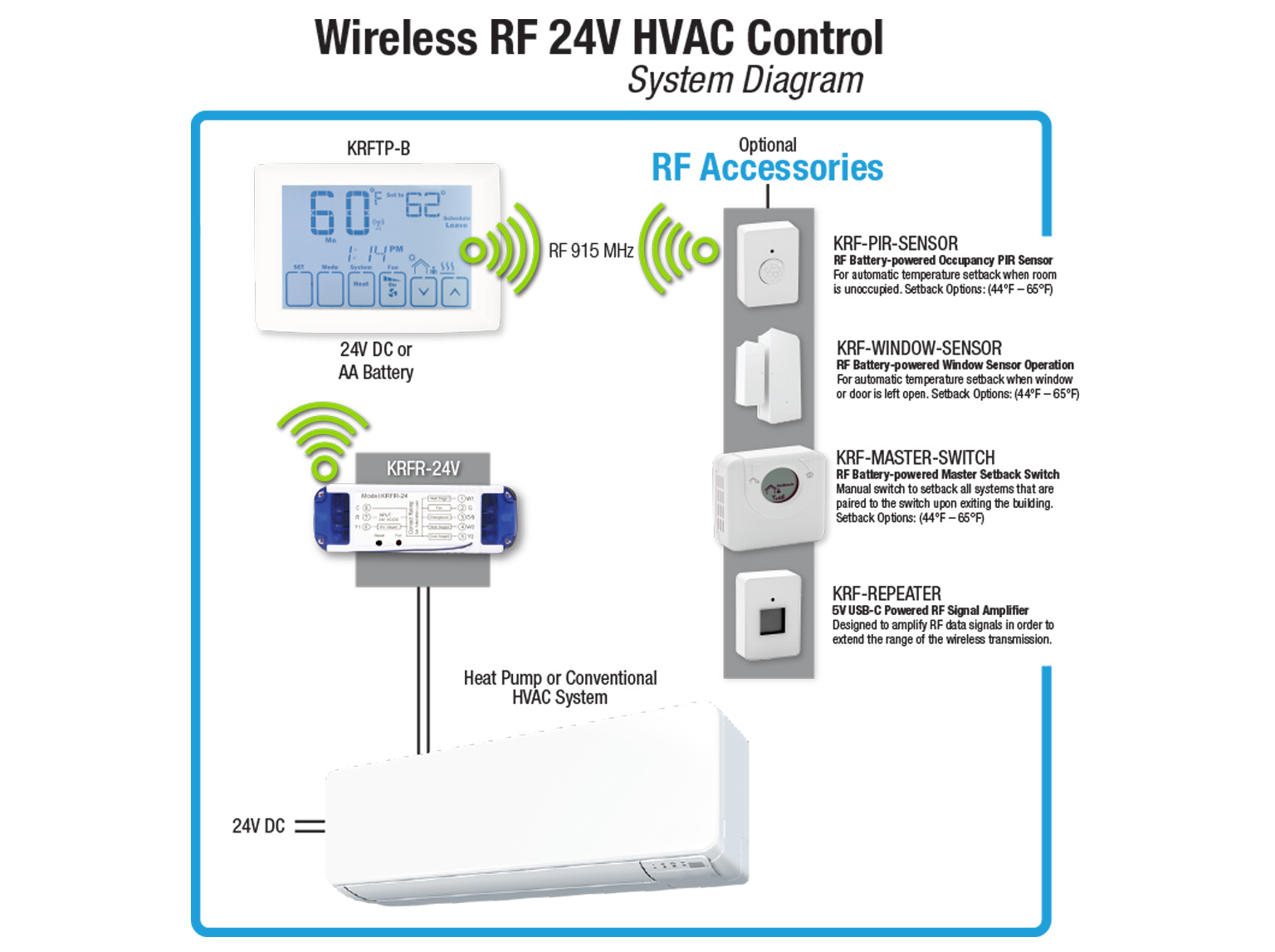

ThermaLink wireless RF thermostat is more than just a thermostat. It wirelessly controls any 24V Heat Pump or Conventional System by communicating wirelessly to a 24V relay that is wired to the HVAC unit.
For added flexibility, the system supports optional RF sensors for customized comfort control. It can detect when people are in the room or when a window or door is left open, adjusting the temperature accordingly.
Plus, multiple rooms can be paired to an optional wireless master switch, allowing the entire building to be set back with the push of a button.

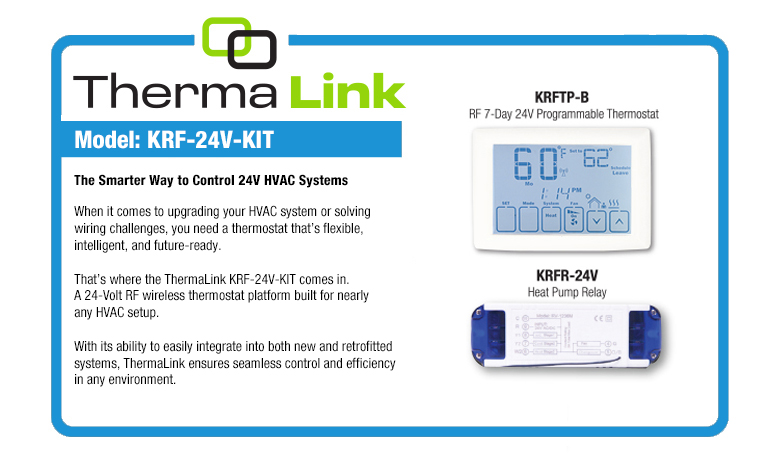

- Kit Includes KRFTP-B RF 24V RF Thermostat & KRFR-24V 24V RF HVAC Relay
- Wireless Two-way RF Communication - 915 MHz
- 24V Heat pump or HVAC unit control (Heating & Cooling) with Touch Screen display.
- 7-day programmable schedule
- Modes: Auto/Cool/Fan Only/Off/Heat with Auto Emergency Heat/ Manual E. Heat
- Range:44°F to 90°F (7°C to 32°C) Accuracy: ± 1°F
- KRFTP-B RF: Power Source: 18 to 30 VAC, 50/60 Hz hardwired or Battery powered
- KRFR-24V: Input Rating: 24Vac/24Vdc, 2A
- Optimal Start/Stop
- Keypad lockout
- UL Certified For USA & Canada
- Maximum Cooling & Heat Temperature Limits 44°F to 90°F
- Optional RF Accessories Include: KRF-PIR-SENSOR, KRF-WINDOW-SENSOR, & KRF-MASTER-SWTCH
- 2 Year Limited Warranty

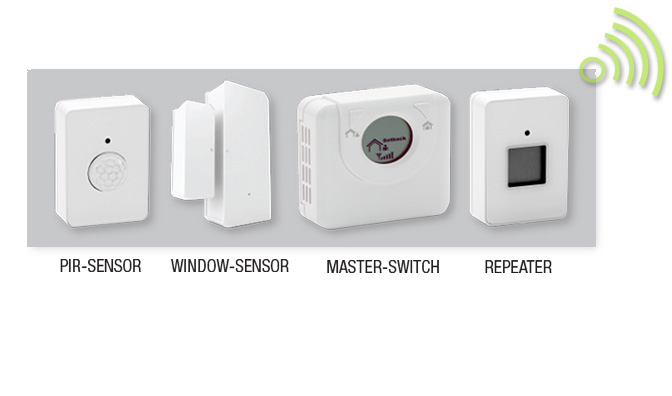

Expand Your Control With Optional RF Sensors

RF Occupancy PIR Sensor
For automatic temperature setback when room is unoccupied. Setback Options: (44°F – 65°F)
RF Window/Door Sensor Operation
For automatic temperature setback when window or door is left open. Setback Options: (44°F – 65°F)
RF Master Setback Switch
Manual switch to setback all systems that are paired to the switch upon exiting the building. Setback Options: (44°F – 65°F)
RF Outdoor Temperature Sensor
Electric Heat will only turn ON when outdoor temp is below Boost Emergency Backup Temp setting (0°F – 65°F)
Available Models
Ordering Information - Complete Kit
MODEL | UPC | DESCRIPTION |
---|---|---|
KRF-24V-KIT | 70426 | RF Thermostat Kit, w/ KRFTP-B Programmable BP Thermostat, KRFR-24V HVAC Relay |
Ordering Information - Order A'la Carte
MODEL | UPC | DESCRIPTION |
---|---|---|
KRFTP-B | 70134 | Programmable Battery Powered RF Thermostat |

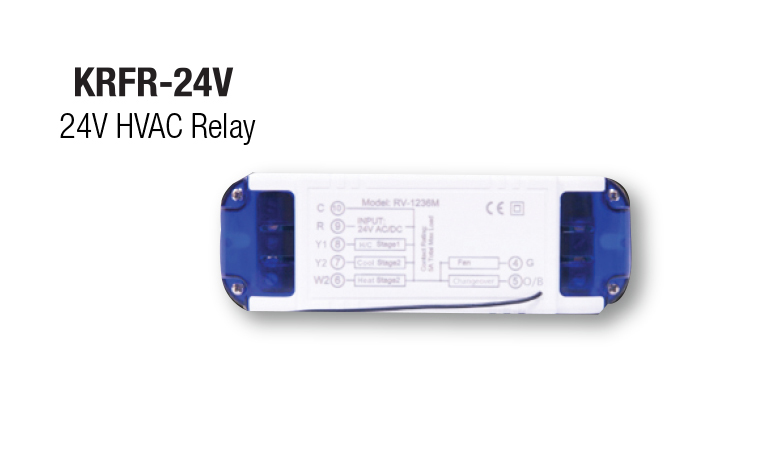

KRFR-24V | 70136 | 24V HVAC Relay, 24VAC/VDC, 5A |
Ordering Information - Optional Accessories
MODEL | UPC | DESCRIPTION |
---|---|---|
KRF-PIR-SENSOR | 70152 | PIR Sensor, Battery Powered, For KRFTP Thermostat |
KRF-REPEATER | 70154 | RF Repeater, USB Powered, For KRFTP Thermostat |
KRF-WINDOW-SENSOR | 70155 | Window/Door Sensor, Battery Powered, For KRFTP Thermostat |
KRF-MASTERSWITCH | 70156 | Master Switch, Battery Powered, For KRFTP Thermostat |
