Model SR

self-regulating roof/gutter

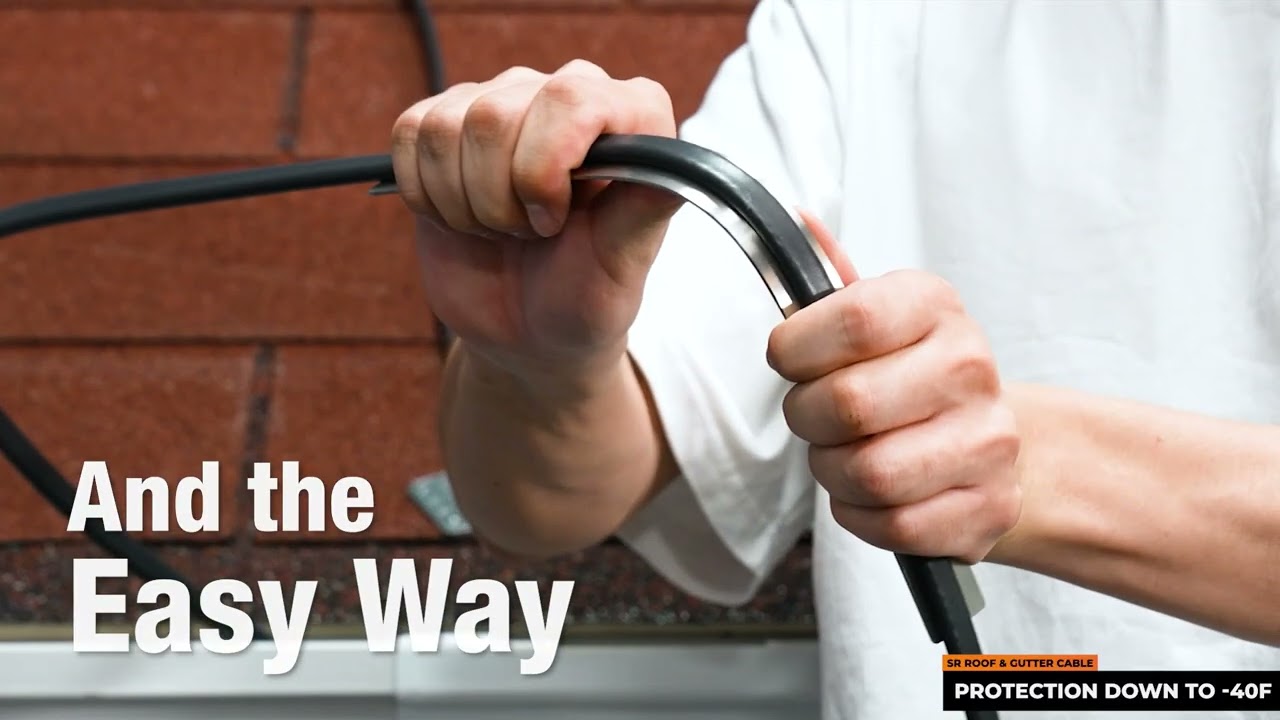

SR Series Self-Regulating Roof & Gutter De-Icing Heating Cable is designed for commercial and industrial roof & gutter de-icing applications. The cable is constructed so that it will not burn out or overheat when overlapped, and can be used on shingled or metal roofs. Suitable For Metallic and Non-Metallic Gutters & Downspouts. The cable is available in 100 and 250 foot coils and also 500 and 1,000 foot reels.

  • Prevent Ice Damns From Forming On Roof & In Gutters
  • Suitable For Metallic and Non-Metallic Gutters & Downspouts
  • Cable Will Not Burn Out Or Overheat When Overlapped
  • Suitable For Use On Metal and Plastic Pipes
  • Available in 5W, 8W, 12.1W or 14.8W / Linear Foot
  • Wattage Rating Is Determined @ 32°F
  • 16 Gauge Heating Cable Bus Wire
  • Flouropolymer Insulation and Rugged PVC Jacket
  • cULus Certified for USA and Canada
  • Imported to King Specifications
  • 2-year limited warranty

Experience A Worry-Free Winter

Self-regulating heating cable, often called Roof & Gutter Heating cable, automatically adjusts heat output based on surface temperature and is designed for a variety of roof & gutter de-icing applications.

Now That’s Smart!

Self-Regulating Design For Simple Installation and Operation

The cable is constructed so that it will not burn out or overheat when overlapped, and can be used on metal and plastic pipes.  Self-Regulating design offering 8 Watts/Linear Foot @ 32°F

Available Models

Ordering Information - 120V Models

100 FT. LENGTH MODELUPCVOLTSLENGTHPIPE RATING** WATTS/FT.DEICING RATING*** WATTS/FT.Purchase
SR123-10040513120100 FT.35Buy Now
SR125-10040514120100 FT.58
SR128-10040515120100 FT.812.1Buy Now
SR1210-10040516120100 FT.1014.8Buy Now
SR123-25040414120250 FT.35Buy Now
SR125-25040418120250 FT.58Buy Now
SR128-25040422120250 FT.812.1Buy Now
SR1210-25040426120250 FT.1014.8Buy Now
SR123-50048735120500 FT.35Buy Now
SR125-50048736120500 FT.58Buy Now
SR128-50048737120500 FT.812.1Buy Now
SR1210-50048742120500 FT.1014.8Buy Now
SR123-1000404161201000 FT.35Buy Now
SR125-1000404201201000 FT.58Buy Now
SR128-1000404241201000 FT.812.1Buy Now
SR1210-1000404281201000 FT.1014.8Buy Now
* Approved for 208, 220, 240, 277 volt operation, refer to wattage adjustment tables for output rating (Table 4 Page 28).
** Wattage rating for pipe freeze protection application is determined at 50˚F (10˚C).
*** Wattage rating for roof and gutter de-icing application is determined at 32˚F (0˚C).

Ordering Information - 240V Models

100 FT. LENGTH MODELUPCVOLTSLENGTHPIPE RATING** WATTS/FT.DEICING RATING*** WATTS/FT.Purchase
SR243-10040517240*100 FT.35Buy Now
SR245-10040518240*100 FT.58
SR248-10040519240*100 FT.812.1
SR2410-10040520240*100 FT.1014.8Buy Now
SR243-25040430240*250 FT.35Buy Now
SR245-25040434240*250 FT.58
SR248-25040438240*250 FT.812.1Buy Now
SR2410-25040442240*250 FT.1014.8Buy Now
SR243-50048739240*500 FT.35Buy Now
SR245-50048740240*500 FT.58Buy Now
SR248-50048741240*500 FT.812.1Buy Now
SR2410-50048746240*500 FT.1014.8Buy Now
SR243-100040432240*1000 FT.35Buy Now
SR245-100040436240*1000 FT.58Buy Now
SR248-100040440240*1000 FT.812.1Buy Now
SR2410-100040444240*1000 FT.1014.8Buy Now
* Approved for 208, 220, 240, 277 volt operation, refer to wattage adjustment tables for output rating (Table 4 Page 28).
** Wattage rating for pipe freeze protection application is determined at 50˚F (10˚C).
*** Wattage rating for roof and gutter de-icing application is determined at 32˚F (0˚C).
**** Weight: 0.080 LBS./FT.

Ordering Information - Roof & Gutter Controls

MODELUPCDESCRIPTION
DS-8C42335Gutter ice melting controller, NEMA 3R, 120/208/240/277V, 30amp, adjustable temperature range 34F to 44F, 1/2" hub
DS-82440481Gutter ice melting controller, NEMA 3R, 24V, 30amp, adjustable temperature range 34F to 44F, 1/2" hub
DS-9C42426Gutter ice melting controller, NEMA 3R, 120/208/240/277V, 2-30amp, adjustable temperature range 34F to 44F, 1/2" hub
CDP-240482Indoor sensor control display, manual/auto/standby modes, includes 18" lead
GIT-140508GIT-1 Gutter De-Icing sensor

Ordering Information - SR Cable Accessories

MODELUPCDESCRIPTIONWEIGHTPurchase
SRK0040462Hard wired power connection kit, includes end seal0.3 lbs.Buy Now
SRK0240461Connection kit, includes end seal0.3 lbs.Buy Now
SRK0340464Pipe trace tape (66 ft.) and 10 labels per pack0.3 lbs.Buy Now
SRK04617132.5" x 50 yards 2 Mil foil tape0.3 lbs.Buy Now
SRK0840466Plug in 120V connection kit with GFCI device, includes end seal1.0 lbs.Buy Now
SRK1040468Weatherproof splice/tee kit, includes end seal0.2 lbs.Buy Now
SRK1240470End seal kit (2 per package)0.1 lbs.Buy Now
SRK1340472Roof Clip (25 per package)0.2 lbs.Buy Now
SRK14404733M VHB double sided acrylic foam pads (25 per package)0.1 lbs.
SRK1540476Downspout hanger and cable ties0.3 lbs.Buy Now
SRK174047711 & 13mm Gel end seal0.1 lbs.Buy Now
SRK1840512LIGHTED END SEAL, 85-277V1.0 lbs.Buy Now

Ordering Information - CT Accessories

MODELCT ACCESSORIES FOR HAZARDOUS APPLICATIONS
CT-9002CT square box
CT-9003CT splice connection
CT-9004CT tee connection
CT-9005CT end seal

Ordering Information - Roof & Drain Systems

MODELUPCDESCRIPTION
4RDDJ2240509Canale/Scupper Jig, consists of 1 frame and 4 rays
6RDDJ2240510Flat Roof Dain Jig, consists of 1 frame and 6 rays
3625R14 RAY40511Cable Keeper / RDDJ-Grid
