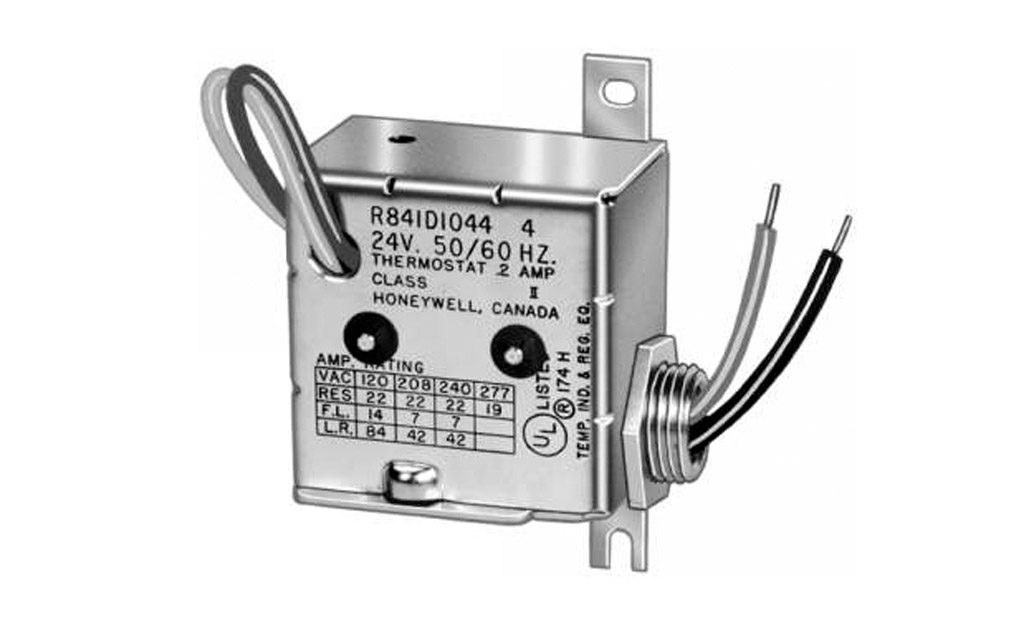

Designed for single pole applications. Compatible with 24V thermostats with 2-wire connections (R,W) or 3-wire connections (R,W,C). Immediate relay activation provides improved temperature control and comfort.
- Control Voltage 24 VAC
- 208/240V Model / 22amps
277V Model / 19amps - SPST
- Imported to King Specifications
Available Models
Ordering Information - Field Mount Accessories
| MODEL | DESCRIPTION | Voltage | Control Voltage | Resistive Rating | Switch Action | WT. (lbs.) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RC840T-240/U | Electronic Heat Relay With a 24V-208/240V Transformer | 208/240V | 24V | 22A | SPST | 0.5 | |||||||
| RC840T-277/U | Electronic Heat Relay With a 24V-277V Transformer | 277V | 24V | 19A | SPST | 0.5 |
