ECO2S PRO Support – Wattage Selection – ECO2S PRO Heaters

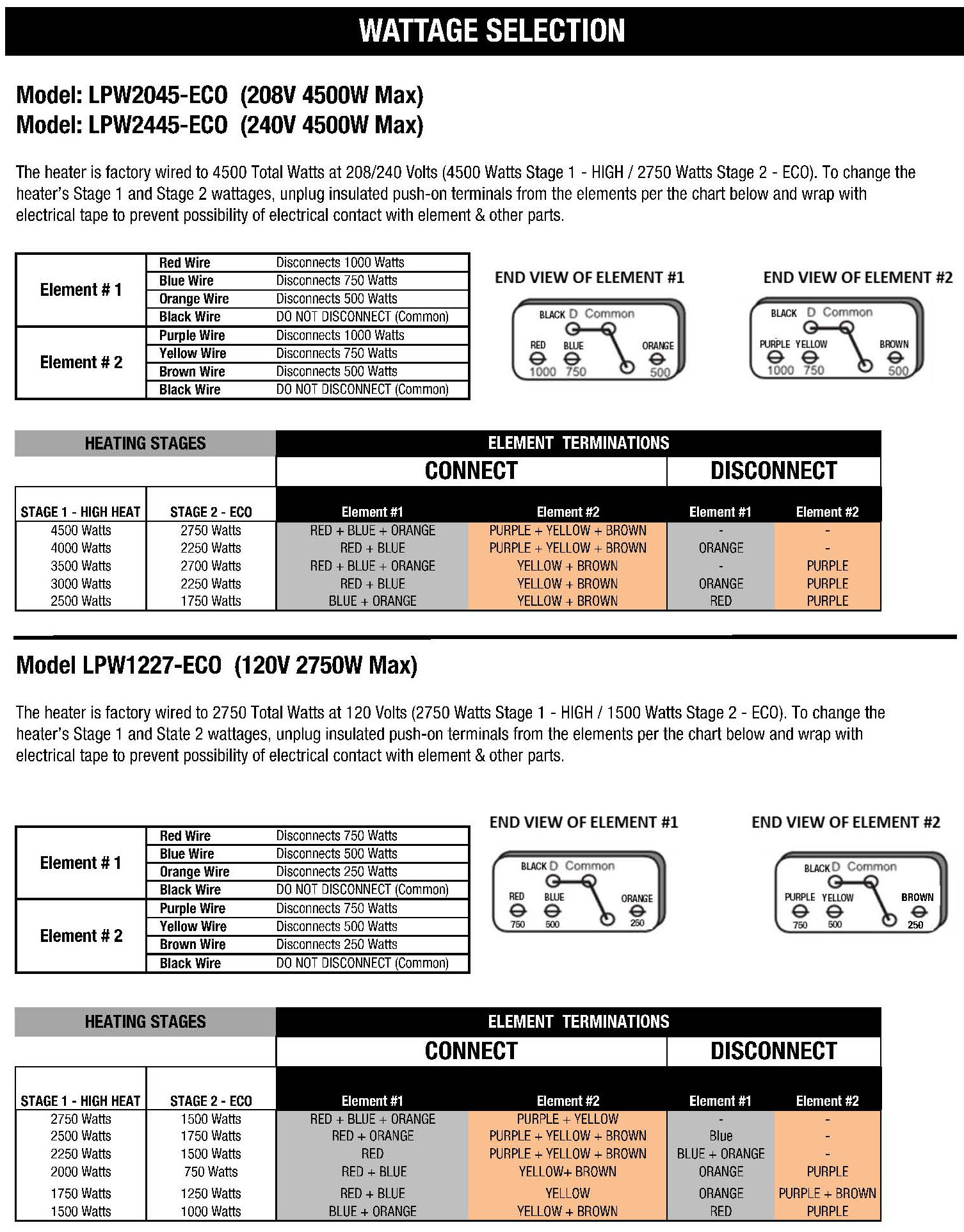

How To Select The Desired Wattage on LPW ECO2S PRO Heater

LPW-ECO2S-PRO-Wattage Selection Settings_2

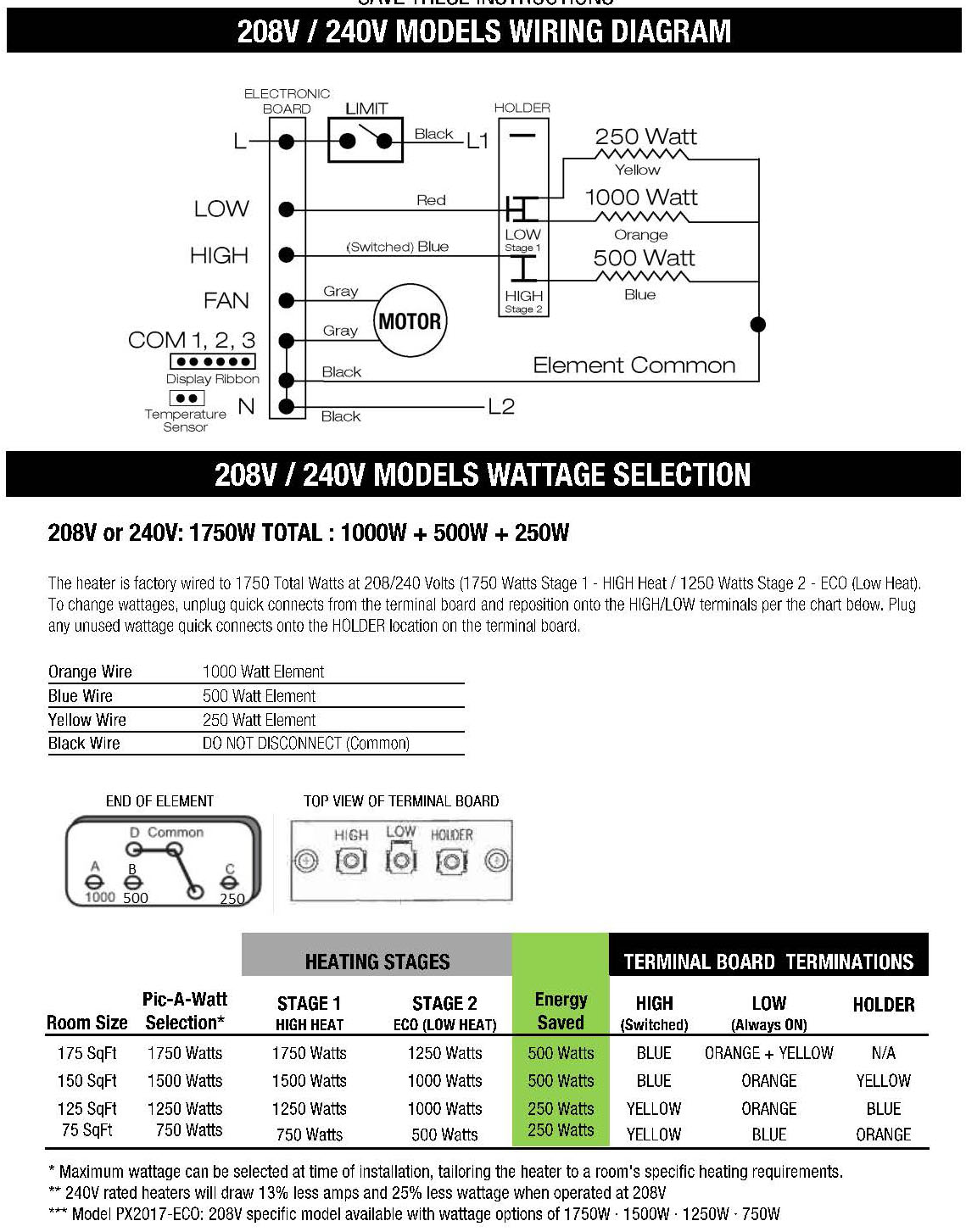

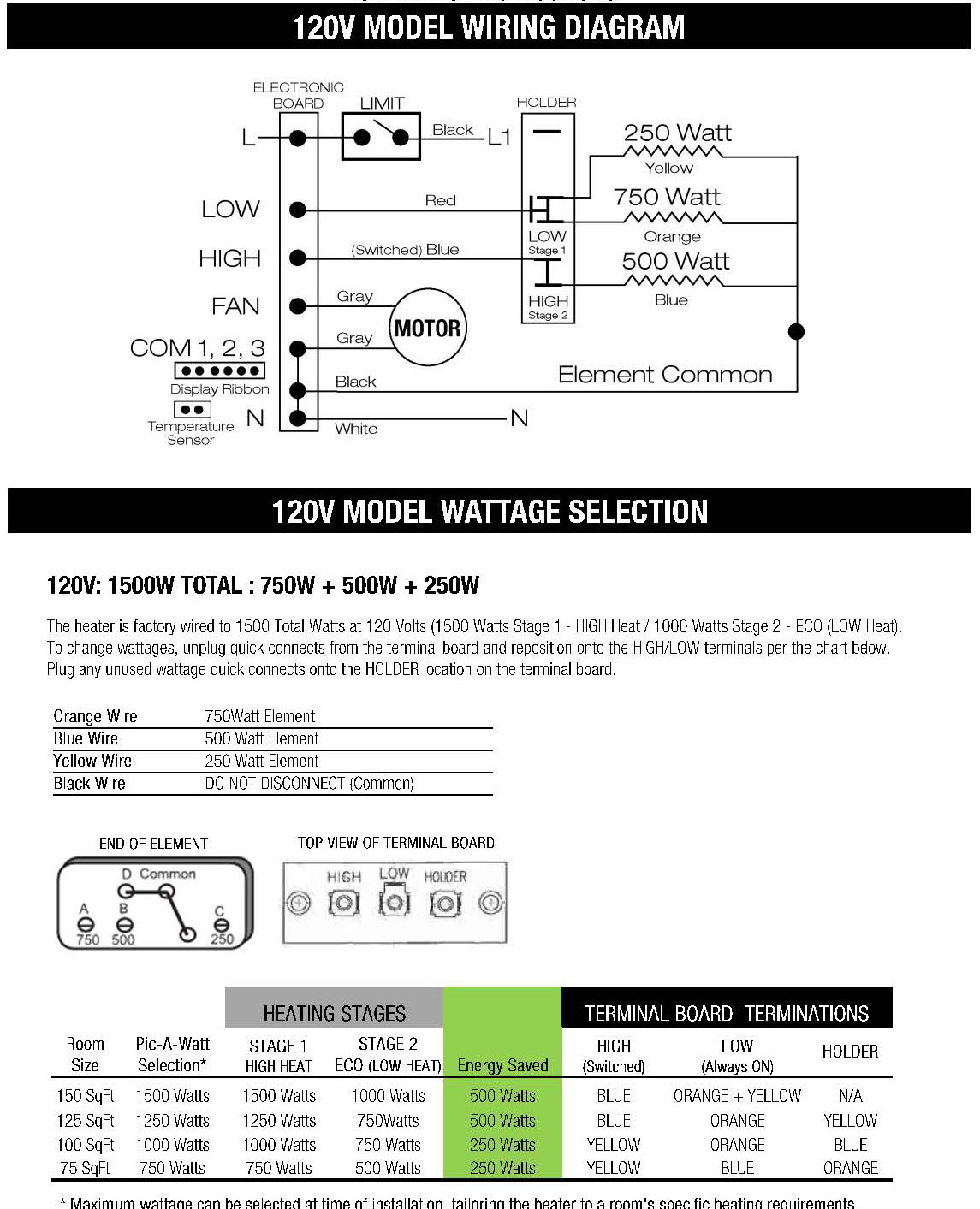

How To Select The Desired Wattage on PX ECO2S PRO Heater

PX-ECO-PRO-Wattage Selectio_1

PX-ECO-PRO-Wattage Selectio_1_b
