The KBP is the industry standard for multi-wattage garage / shop heaters. It even provides an idea solution for Greenhouse heating. Designed for rugged performance, the flow-through design efficiently moves air by pulling air from the back of the heater and discharges it out the front, easily heating a large space. Built with high quality components and suitable for both residential and commercial applications. All models include a 3-position switch (Heat/Fan/OFF-DISCONNECT) and standard models include a built-in thermostat. The integral fan delay continues to dissipate heat from the elements during the cool down period, maximizing the heat exchange in the room. King’s exclusive dual Pic-A-Watt steel fin elements allow customers to select from a range of wattage options, tailoring the heater to an area’s specific heating requirements.
- New Standard Color: Onyx Gray
- Original Pic-A-Watt® Element
- Multiple Wattage Options, to Tailor to a Room’s Specific Heating Requirements
- 385 CFM Output
- Patented Smart Limit Protection®
- Standard Models Include Built-in Thermostat
-RT24 Models Include Provision For 24V Remote Themrostat
-RT Models Include Provision For LV Remote Themrostat
- Selector Switch: Fan/Heat/Off-Disconnect
- Long Life Cast Iron Motor
- Fan Delay To Dissipate Heat
- Universal Wall/Ceiling Bracket Included
- Proudly Made in the USA with U.S. & Global Materials
- 5-Year Limited Warranty
Product Features
The Industry Standard.

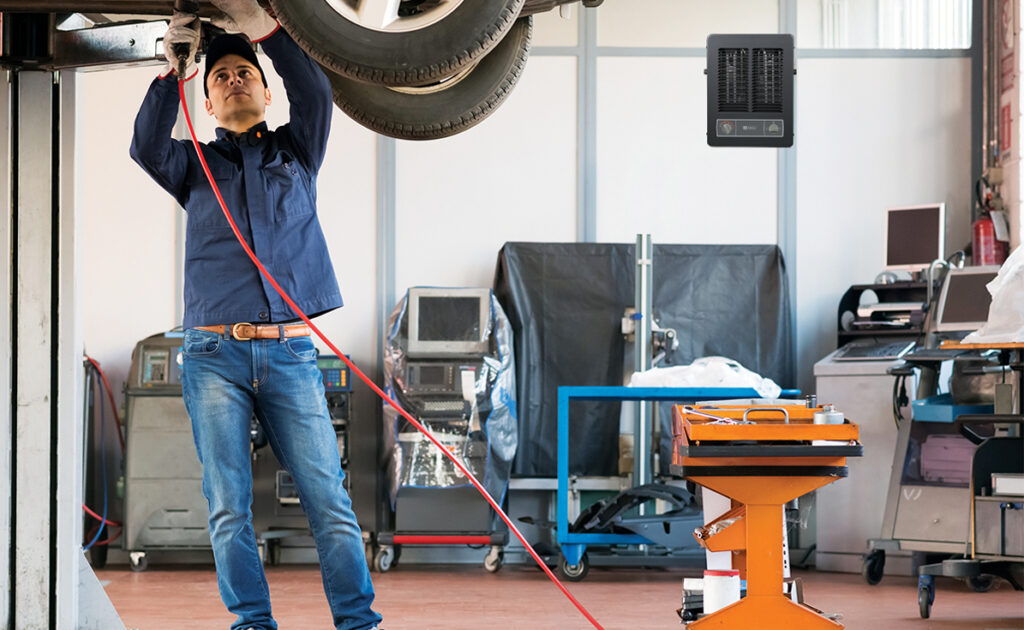

The industry standard for multi-wattage garage , shop and even greenhouse heaters. All models include a 3-position switch (Heat/Fan/OFF-DISCONNECT) and standard models include a built-in thermostat. Designed for rugged performance, the flow-through design efficiently moves air by pulling air from the back and discharges it out the front, easily heating a large space.
Now That’s Smart!
Safe Comfort For Large Spaces
Patented Smart Limit Protection (U.S. Patent #6,748,163 B2) automatically shuts power off to the heater in an abnormal event and must be manually reset for safety.
Available Models
Ordering Information - Single Phase
| MODEL | UPC | THERMOSTAT TYPE | WATTS | BTUH | PHASE | VOLTS | AMPS | CFM | TEMP. RISE RANGE | AIR THROW | MAX. MOUNT HEIGHT | WT. (lbs.) | Purchase |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KBP1230 | 15191** | In-Built | 2850-1900-950 | 9,727 - 3,242 | 1 | 120 | 23.8-15.8-7.9 | 385 | 23F - 8F | 12ft. | 8ft. | 26 | Buy Now |
| KBP2406 | 15190** | In-Built | 5700-4750-3800-2850-1900-950 | 19,454 - 3,242 | 1 | 240/208* | 23.8-19.8-15.8-11.9-7.9-4 | 385 | 47F - 8F | 12ft. | 8ft. | 24 | Buy Now |
| KBP2704 | 15187** | In-Built | 4000-3000-2000-1000 | 13,652 - 3,413 | 1 | 277 | 14.5-10.8-7.2-3.6 | 385 | 33F - 8F | 12ft. | 8ft. | 26 | Buy Now |
| KBP1230-RT24 | 70375** | 24V Remote Provision | 2850-1900-950 | 9,727 - 3,242 | 1 | 120 | 23.8-15.8-7.9 | 385 | 23F - 8F | 12ft. | 8ft. | 26 | |
| KBP2406-RT24 | 70376** | 24V Remote Provision | 5700-4750-3800-2850-1900-950 | 19,454 - 3,242 | 1 | 240/208* | 23.8-19.8-15.8-11.9-7.9-4 | 385 | 47F - 8F | 12ft. | 8ft. | 24 | |
| KBP2704-RT24 | 70377** | 24V Remote Provision | 4000-3000-2000-1000 | 13,652 - 3,413 | 1 | 277 | 14.5-10.8-7.2-3.6 | 385 | 33F - 8F | 12ft. | 8ft. | 26 | |
| KBP1230-RT | 15219** | Line Voltage Remote Provision | 2850-1900-950 | 9,727 - 3,242 | 1 | 120 | 23.8-15.8-7.9 | 385 | 23F - 8F | 12ft. | 8ft. | 26 | |
| KBP2406-RT | 15178** | Line Voltage Remote Provision | 5700-4750-3800-2850-1900-950 | 19,454 - 3,242 | 1 | 240/208* | 23.8-19.8-15.8-11.9-7.9-4 | 385 | 47F - 8F | 12ft. | 8ft. | 24 | |
| KBP2704-RT | 15186** | Line Voltage Remote Provision | 4000-3000-2000-1000 | 13,652 - 3,413 | 1 | 277 | 14.5-10.8-7.2-3.6 | 385 | 33F - 8F | 12ft. | 8ft. | 26 |
Ordering Information - Multi-Phase
| MODEL | UPC | THERMOSTAT TYPE | WATTS | BTUH | PHASE | VOLTS | AMPS | CFM | TEMP. RISE RANGE | AIR THROW | MAX. MOUNT HEIGHT | WT. (lbs.) | Purchase |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KBP2006-3MP-DS | 70012** | In-Built | 5700-2850 | 19,454 - 9,727 | 1-3 | 208 | 15.8-7.9 | 385 | 47F - 23F | 12ft. | 8ft. | 26 | |
| KBP2406-3MP-DS | 70013** | In-Built | 5700-2850 | 19,454 - 9,727 | 1-3 | 240/208* | 13.7-6.9 | 385 | 47F - 8F | 12ft. | 8ft. | 25 | |
| KBP4804-3MP-DS | 70014** | In-Built | 4160 | 14,198 | 1-3 | 480*** | 5 | 385 | 34F | 12ft. | 8ft. | 26 | Buy Now |
| KBP4806-3MP-DS | 70015** | In-Built | 6000 | 20,478 | 1-3 | 480*** | 7.2 | 385 | 49F | 12ft. | 8ft. | 26 | |
| KBP2006-3MP-RT24-DS | 70378** | 24V Remote Provision | 5700-2850 | 19,454 - 9,727 | 1-3 | 208 | 15.8-7.9 | 385 | 47F - 23F | 12ft. | 8ft. | 26 | |
| KBP2406-3MP-RT24-DS | 70379** | 24V Remote Provision | 5700-2850 | 19,454 - 9,727 | 1-3 | 240/208* | 13.7-6.9 | 385 | 47F - 8F | 12ft. | 8ft. | 25 | |
| KBP4804-3MP-RT24-DS | 70380** | 24V Remote Provision | 4160 | 14198 | 1-3 | 480*** | 5 | 385 | 34F | 12ft. | 8ft. | 26 | |
| KBP4806-3MP-RT24-DS | 70381** | 24V Remote Provision | 6000 | 20478 | 1-3 | 480*** | 7.2 | 385 | 49F | 12ft. | 8ft. | 26 | |
| KBP2006-3MP-RT-DS | 70382** | Line Voltage Remote Provision | 5700-2850 | 19,454 - 9,727 | 1-3 | 208 | 15.8-7.9 | 385 | 47F - 23F | 12ft. | 8ft. | 26 | |
| KBP2406-3MP-RT-DS | 70383** | Line Voltage Remote Provision | 5700-2850 | 19,454 - 9,727 | 1-3 | 240/208* | 13.7-6.9 | 385 | 47F - 8F | 12ft. | 8ft. | 25 |
Engineering Specs
Contractor shall supply and install KBP Series unit heaters manufactured by King Electrical Mfg. Company. Heaters shall be of the wattage and voltage as indicated on the plans.
Pic-A-Watt Heating Element: Exclusive King multi-tap element allows field adjustment to several wattages at time of installation. Steel sheath elements of various resistance are copper brazed to steel plate fins producing a multi-wattage heating element.
Thermostat Options:
Standard models include a built-in Single pole factory installed hydraulic capillary tube thermostat for heating control. Operating range 40° to 90° F.
-RTLV models include a provision to connect a 24V remote thermostat (purchased separately).
-RT models include a provision to connect a Line Voltage remote thermostat (purchased separately).
Fan/Heat/Off-Disconnect Switch: 3-position switch provides heating, summer fan only operation, and double pole Disconnect.
Fan Delay Switch: The fan continues to operate after the thermostat shuts off in order to remove the residual heat left in the elements. Power must not be interrupted.
CFM: 385
Universal Mounting Bracket: Combination ceiling/wall bracket is included with every heater.
Unit Bearing Motor: Permanently lubricated, long life, unit bearing 4-Pole motor with 20 cc of oil. Enclosed rotor provides long-lasting, trouble-free operation. Thermally protected. 1500 RPM.
Electrically Held Smart Limit Protection: Heater shuts off when an over temperature condition exists and automatically resets when the normal operating temperature returns.
New Standard Color: Onyx Gray
Tested: UL 2021
Approval: cCSAus
