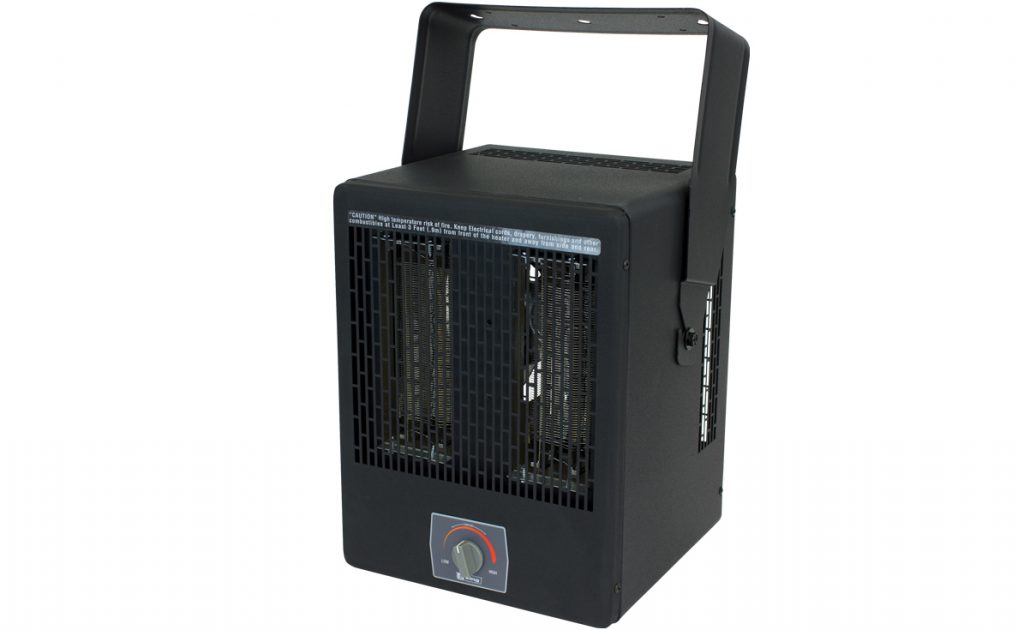

The EKB is designed to be an affordable, high-capacity garage / shop heater. Combining King’s patented Smart Limit safety technology with dual NiChrome coil elements for rapid heat transfer, the EKB is ideal for many residential applications. The flow-through design efficiently moves air by pulling air from the back and sides of the heater and discharges it out the front, easily heating a large space. The built-in thermostat has a temperature range from 40 to 85 degrees. The universal mounting bracket can be wall or ceiling mounted at a minimum of 6 feet above the floor. Good air distribution and comfort is achieved by swiveling the bracket to specific work areas.
Affordable Comfort for Large Spaces
Designed to be an affordable, high-capacity garage / shop heater with the durability of more expensive models . The NiChrome open-coil element dissipates heat quickly heating the draftiest of spaces. The flow-through design efficiently moves air by pulling air from the back and sides of the heater and discharges it out the front, easily heating a large space.
Now That’s Smart!
Safe Comfort For Large Spaces
Patented Smart Limit Protection (U.S. Patent #6,748,163 B2) automatically shuts power off to the heater in an abnormal event and must be manually reset for safety.
|MODEL||UPC||VOLTS||WATTS||AMPS||WIRE||BREAKER SIZE||TEMP RISE||HEATING SQ FT|
|EKB1230TB||16506||120||2850||24||10-2 w/ground||30 Amp 1 pole||40||500|
|EKB1220TB||16507||120||1920||16||12-2 w/ground||20 Amp 1 pole||40||300|
|EKB2050TB||16501||208||5000||24||10-2 w/ground||30 Amp 2 pole||80||750|
|EKB2040TB||16503||208||3750||18||10-2 w/ground||30 Amp 2 pole||70||600|
|EKB2030TB||16505||208||2850||14||12-2 w/ground||20 Amp 2 pole||50||500|
|EKB2450TB||16500||240||5000||20||10-2 w/ground||30 Amp 2 pole||80||750|
|EKB2440TB||16502||240||3850||16||12-2 w/ground||20 Amp 2 pole||70||600|
|EKB2430TB||16504||240||2850||12||14-2 w/ground||15 Amp 2 pole||50||500|
Heating Elements: Rigid Muscovite Mica construction with 80-20 NiChrome heating wire provides quick heating without cold air start ups, heat is wiped from elements as fans slows to a stop. Manual reset Safety sensor on each element.
Thermostat: Factory installed single pole operation range 40 to 85 degrees F.
Unit Bearing Motor: Permanently lubricated, cast aluminum unit bearing, 6-watt output 4 pole motor, 1550 rpm, 20 cc oil supply.
Mounting Bracket: 18 ga steel, multiple mounting options – ceiling/wall.
CFM: 270 Maximum
Thermal Overload: Heaters shall be equipped with King’s patented thermal overload Smart Limit Protection®, which disconnects elements and motor in the event normal operating temperatures are exceeded. If thermal overload trips due to abnormal operating temperatures, thermal overload shall remain open until manually reset by turning the heater off for 15 minutes. U.S. PATENT #6,748,163 B2 • CIPO PATENT #2,393,882
Case: 22 ga steel, inlet and outlet perforation, special side and top safety air inlets.
Exterior: Durable textured finish.
Approval: cULus (E41422)
