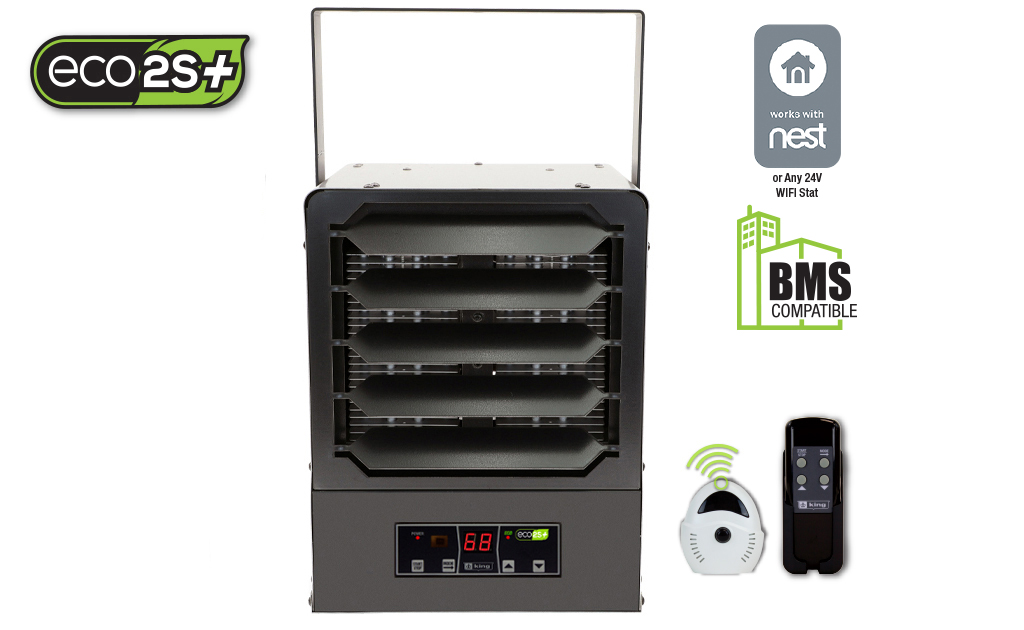

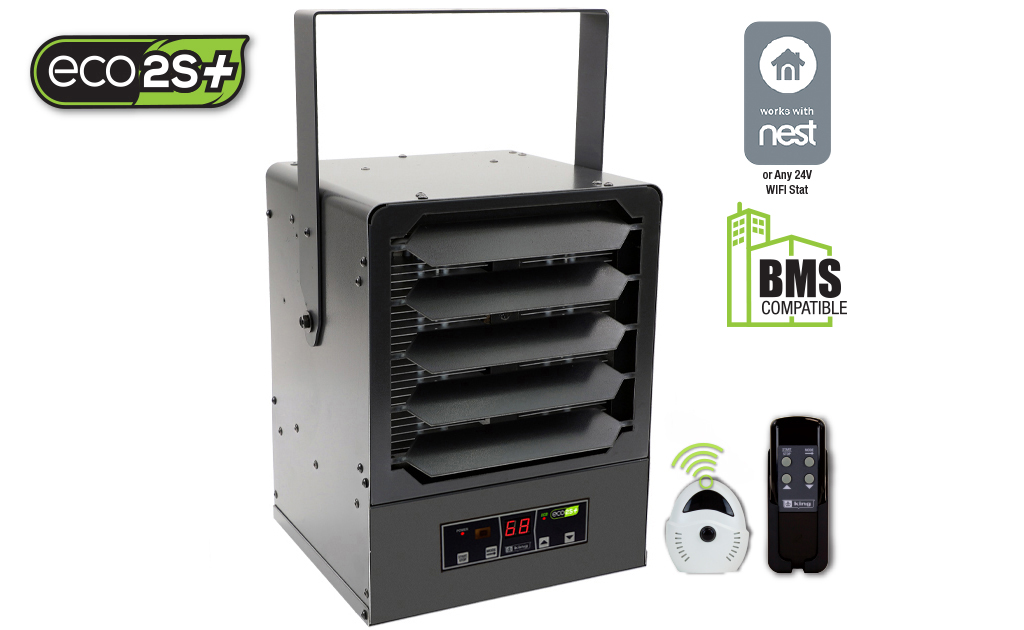

The KBP ECO2S+ series compact unit heater delivers exceptional performance, energy efficiency, and user control, featuring King’s innovative built-in ECO2S+ electronic thermostat with remote control. The heaters provide energy-efficient 2-stage heating, an Eco mode that automatically uses the lowest wattage needed, integrated fan-only and timer modes, and a convenient remote for simple operation.
With the ECO2S+ Remote Temperature Sensor, the heater detects the room’s cold spots and adjusts to maintain comfort throughout. Simply place the sensor on a wall or shelf to ensure the ideal temperature exactly where you need it.
The unit also includes a standard provision for an optional 24V thermostat, allowing for remote temperature control or integration with a building management system (BMS). Combined with summer fan-only and thermostat timer modes, the KBP ECO2S+ adapts to your needs year-round.
Built for rugged performance, the flow-through design efficiently draws air in from the back and discharges it out the front, quickly heating large spaces. An integral fan delay continues to circulate heat during cool down, maximizing warmth. King’s exclusive dual Pic-A-Watt steel fin elements provide a range of wattage options, letting you tailor the heater to the specific requirements of any area.

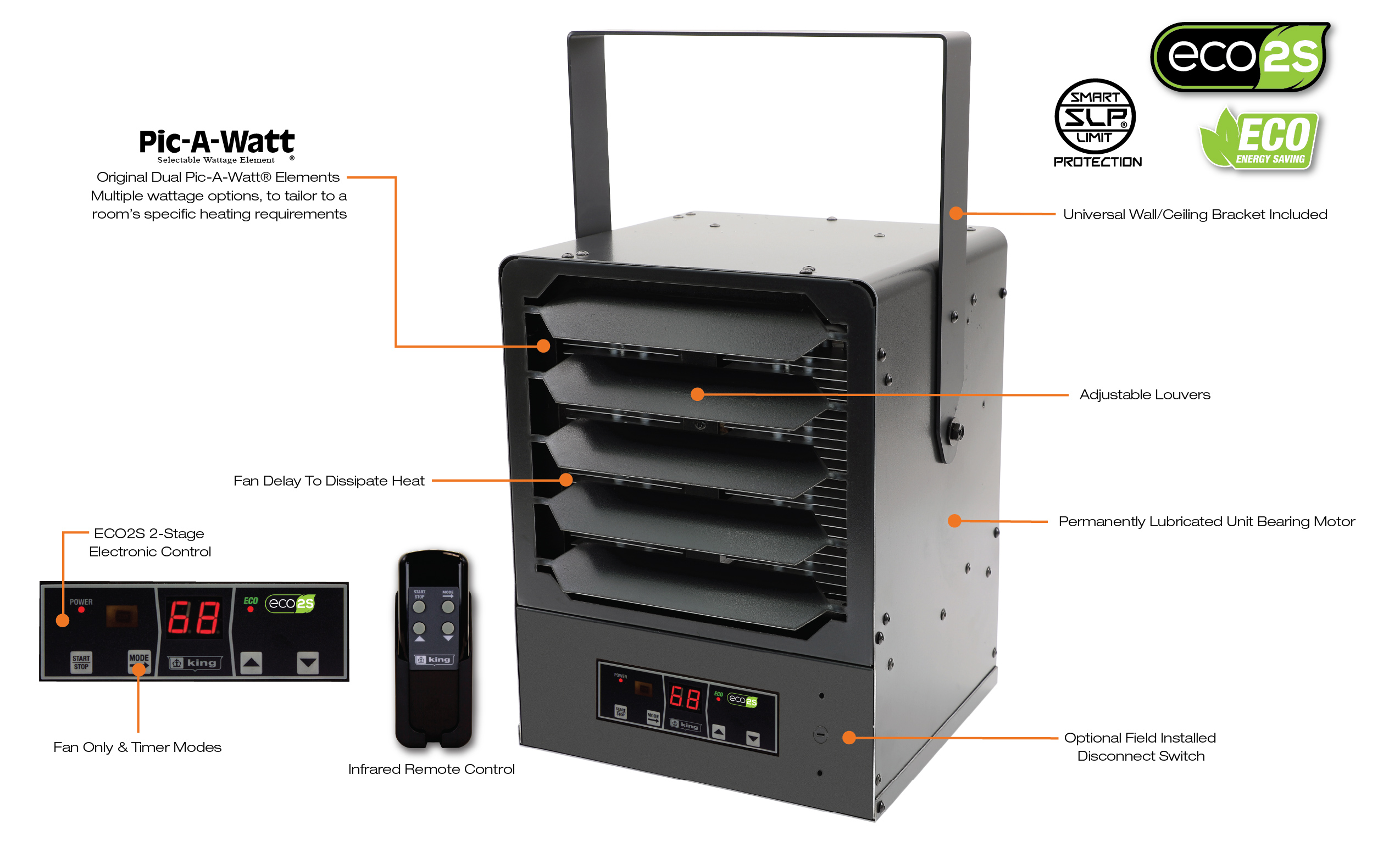

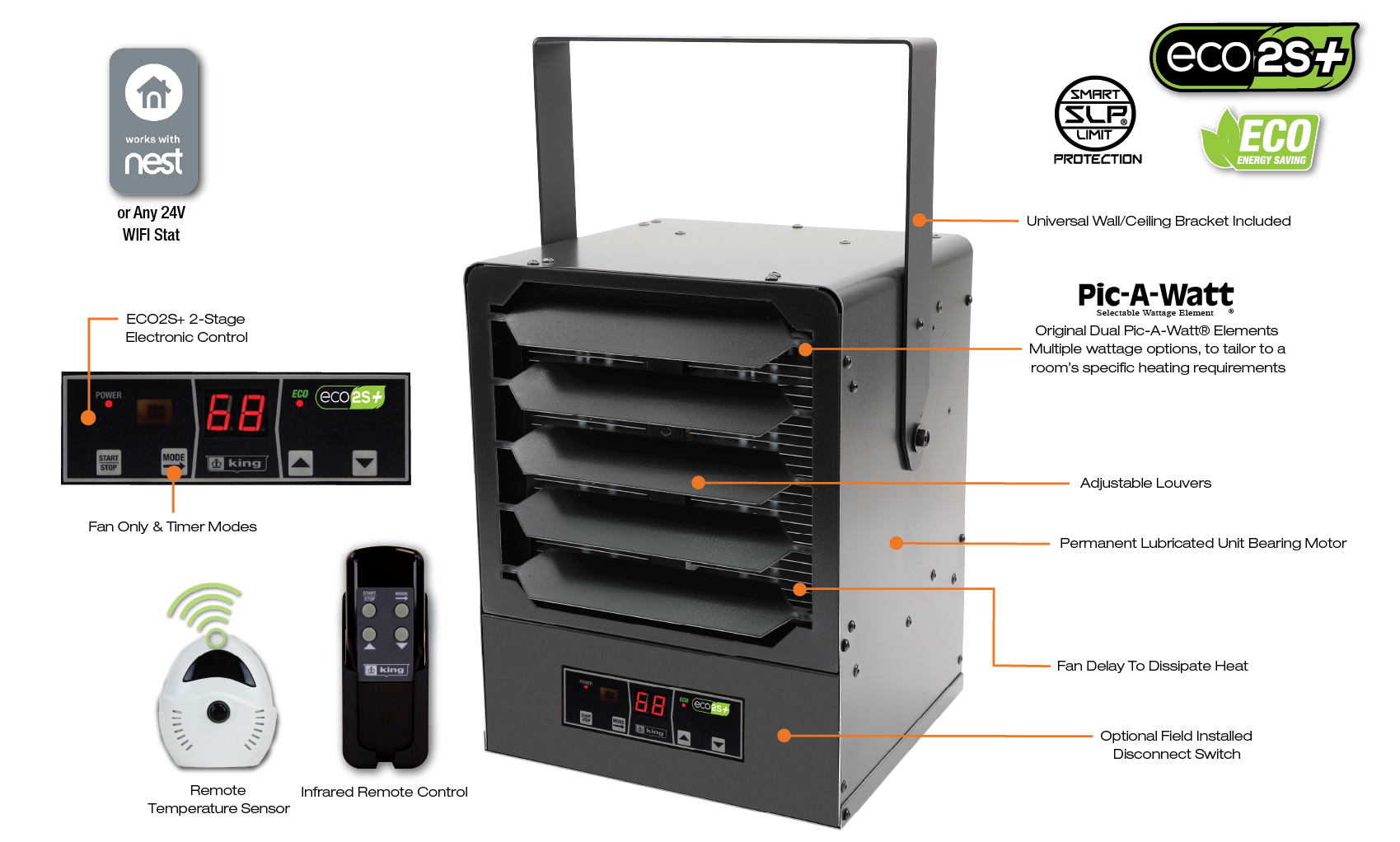

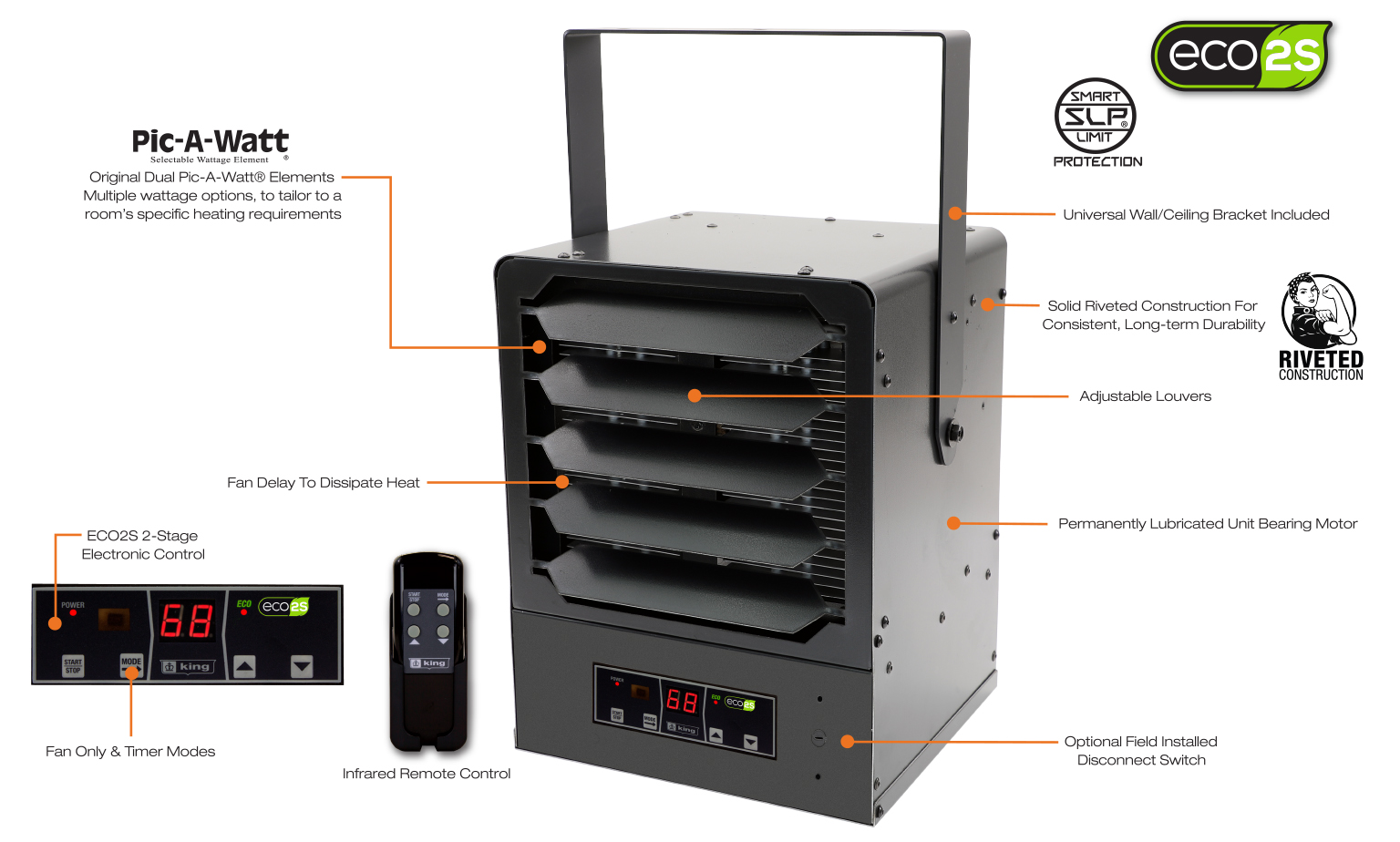

- Smart ECO2S+® Energy-Saving Design
- 2-Stage Heating: Automatically Uses Lowest Wattage Needed
- Thermostat Temperature Range: 40℉ to 95℉
- Includes ECO2S+ Remote Temperature Sensor, Your ECO2S+ Heater Knows Exactly Where the Room's Cold Spot is & Works Smarter to Keep the Entire Room Comfortable. Just Place It On a Wall or Shelf & Get the Right Temperature, Right Where You Want It.
- Hand Held Remote Control & Wall Holder Included
- Built-In Provision For Using Any 24V Remote Thermostat (Optional)
- Compatible with NEST / Any 24V Thermostat, including WIFI stats
- Compatible with BMS systems
- Timer & Summer Fan Only Modes
- Auto Memory Feature: Returns Unit To Last Settings After Power Outage
- Adjustable Louvers to Direct Air
- Built-In Fan Delay To Dissipate Heat
- Dual Pic-A-Watt® Elements
- Patented Smart Limit Protection®
- Permanent Lubricated Unit Bearing Motor
- Universal Wall/Ceiling Bracket Included
- Optional Power Supply For ECO2S Temp Sensor # ECO2S-5V-PWRSPLY, Purchased Separately.
- Proudly Made in the USA with U.S. & Global Materials
- 5-Year Limited Warranty
Product Features
2-Stage Energy-Saving Technology in Comfort Heating
KB ECO2S+ Works Smarter Not Harder by delivering exceptional performance, energy efficiency, and user control, featuring King’s innovative built-in ECO2S+ electronic thermostat with remote control. The heaters provide energy-efficient 2-stage heating, an Eco mode that automatically uses the lowest wattage needed, integrated fan-only and timer modes, and a convenient remote for simple operation.
Now That’s Smart!
Meet the ECO2S Temperature Sensor
Let’s face it, most garages have cold spots and don’t ever seem to maintain an even temperature throughout. With the ECO2S+ Temperature Sensor, your ECO2S+ heater knows exactly where that cold spot is and works smarter to keep the entire room comfortable. Just place it on a wall or shelf and get the right temperature, right where you want it.

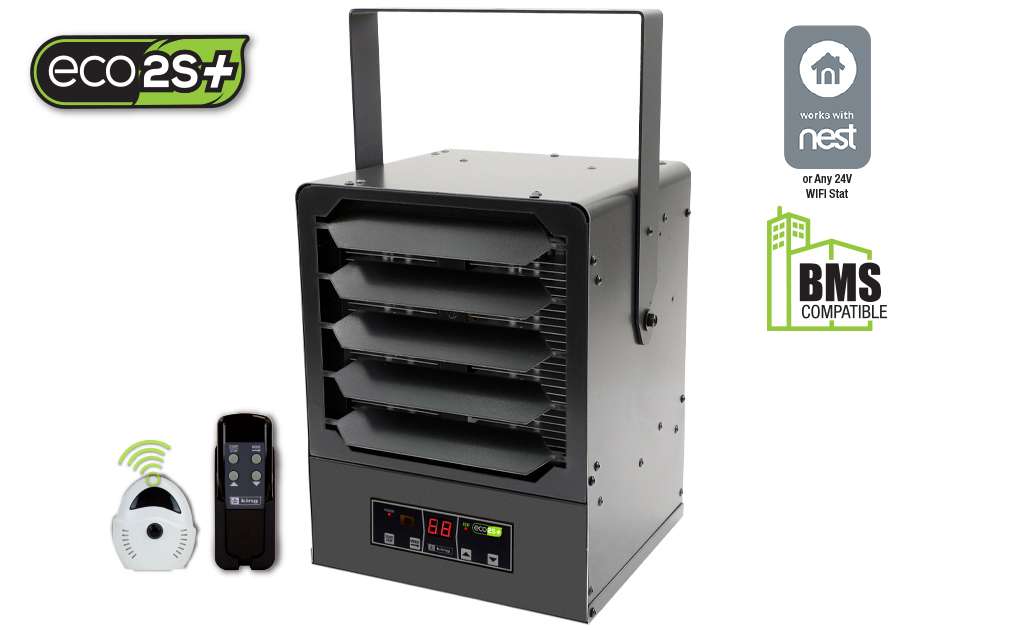

KB ECO2S+ Works with NEST
ince the KB ECO2S+ includes a standard provision for an optional 24V thermostat, installing a Nest WiFi or any 24V WiFi thermostat is simple and straightforward. This 24V provision also allows for seamless integration with a building management system (BMS).
Safe Comfort For Large Spaces
Patented Smart Limit Protection (U.S. Patent #6,748,163 B2) automatically shuts power off to the heater in an abnormal event and must be manually reset for safety.

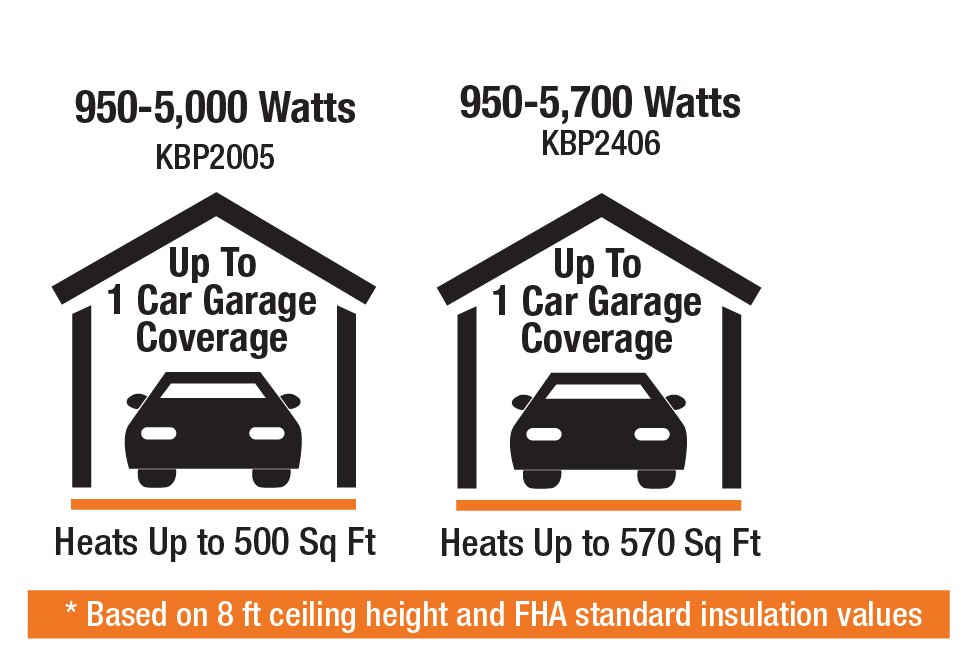

Available Models
Ordering Information - Electronic 2-Stage Thermostat
| MODEL | UPC | WATTS | BTUH | PHASE | VOLTS | AMPS | CFM | TEMP. RISE RANGE | AIR THROW | MAX. MOUNT HEIGHT | WT. (lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KBP2005-1-MB-ECO2S-PLUS | 70455 | 5000-4000-3600-2900-1450-950 | 17,060 - 3,242 | 1 | 208 | 27.4-22.8-13.7-9.1-4.6 | 385 | 41F - 8F | 12ft. | 8ft. | 26 |
| KBP2406-1-MB-ECO2S-PLUS | 70456 | 5700-4750-3800-2850-1900-950 | 19,454 - 3,242 | 1 | 240/208* | 23.8-19.8-15.8-11.9-7.9-4 | 385 | 47F - 8F | 12ft. | 8ft. | 26 |
Ordering Information - Optional Field-Installed Disconnect Kit
| MODEL | UPC | DESCRIPTION |
|---|---|---|
| KBP-HFD-KIT | 70470 | KBP HEAT/DISCONNECT SWITCH, 120-277V, FIELD INSTALLED KIT |

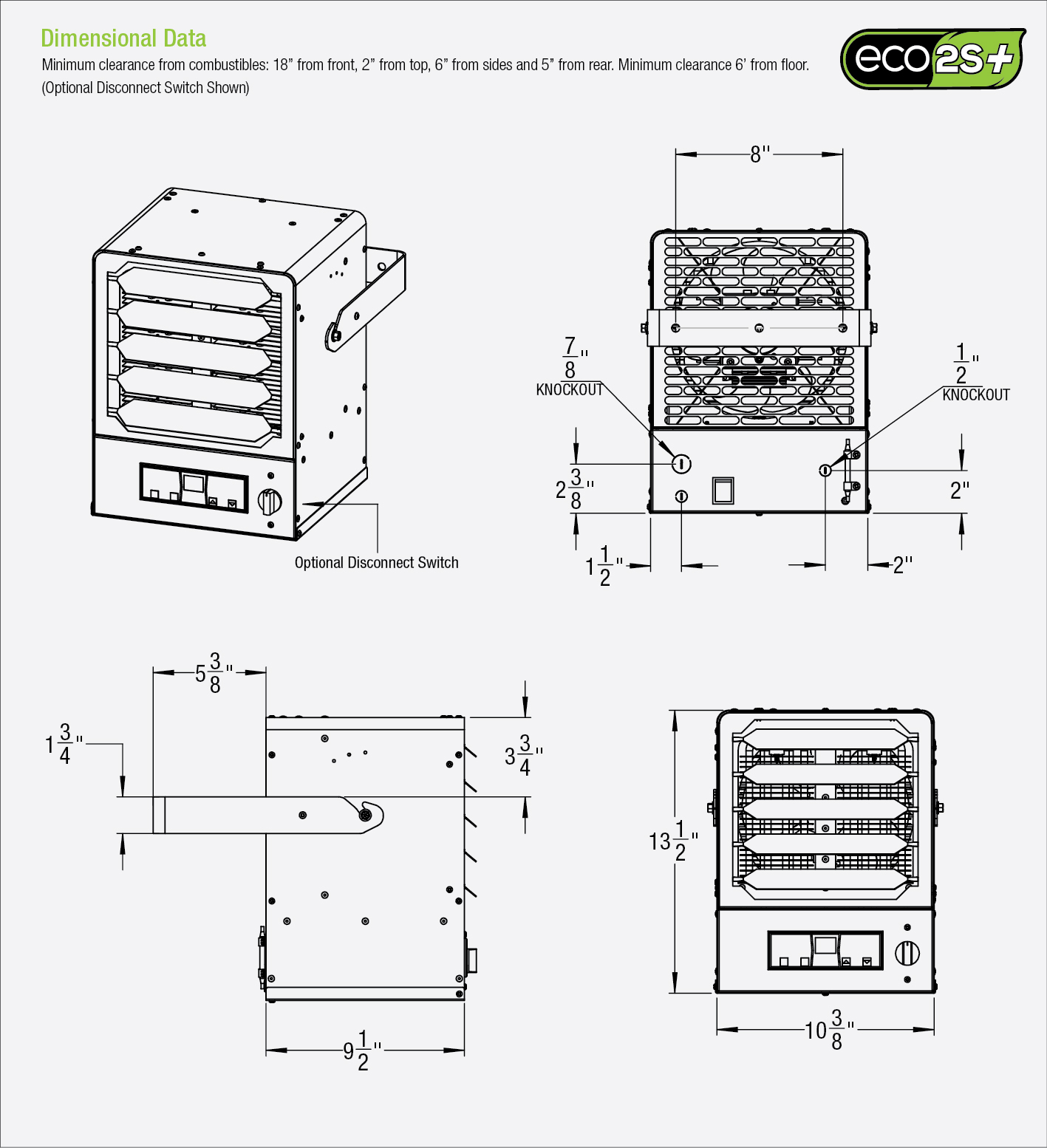

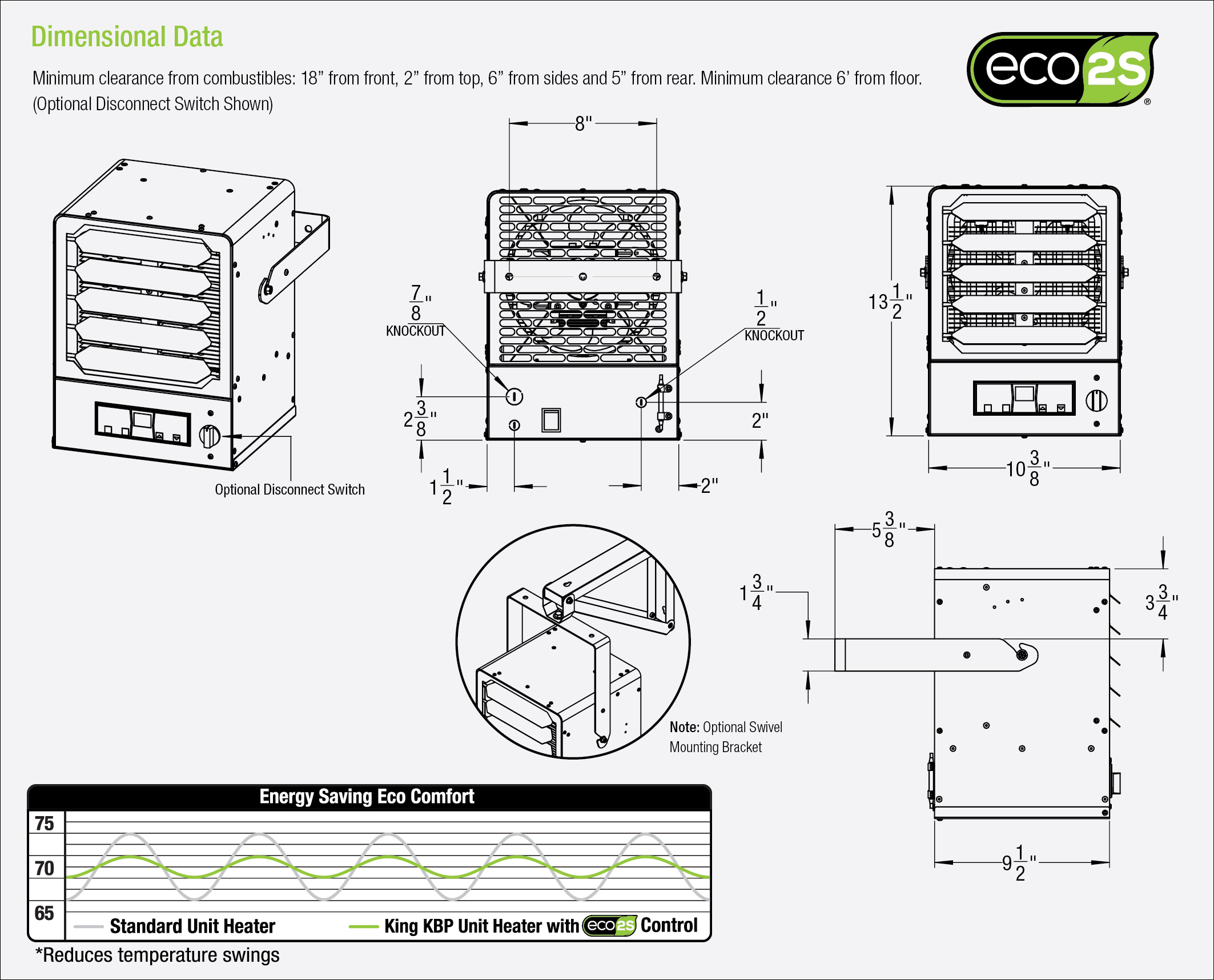

Engineering Specs
Contractor shall supply and install KBP ECO2S+ Series unit heaters manufactured by King Electrical Mfg. Company. Heaters shall be of the wattage and voltage as indicated on the plans.
Construction: All exterior and interior metal enclosure parts are made from 20 gauge electrogalvanized Steel with a rust inhibiting baked enamel finish. Smooth rounded corners and protective edge trim give an attractive modern appearance.

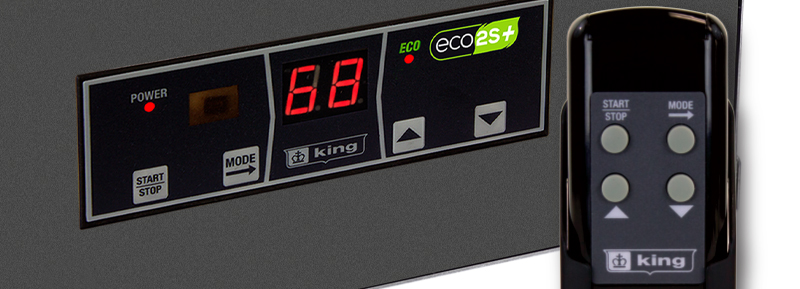

ECO2S+ Electronic Thermostat Control: Thermostat Temperature Range: 40℉ to 95℉. Up, Down temperature mode. Automatic 2-Stage heating (High & ECO Modes). Start/Stop. Fan Only and Timer (1-9hours) Modes. Standard on all heaters.
ECO2S+ Remote Temperature Sensor: Wireless remote temperature sensing for balanced heating at the coldest spot in the room. 2.4G wireless protocol. Includes remote temperature sensor and wall mounting bracket. AA Battery Powered.
Provision For 24V Remote Thermostat: Includes terminals to connect an optional 24V 2-Stage Thermostat. Compatible with NEST / any 24V WIFI Stat or for integration with a building managerment system (BMS).
Auto Memory Feature: Returns Unit To Last Settings After Power Outage.
Adjustable Outlet Louver: Louvers direct air up or down as needed for the heating application.

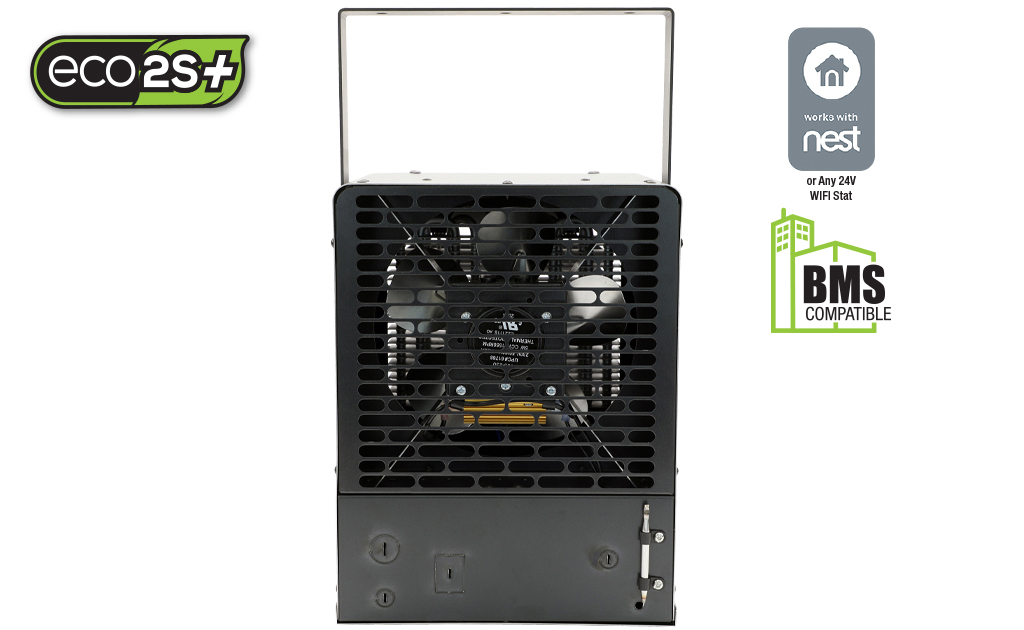

Rear Intake Screen: Heavy gauge steel screen protects against foreign objects making accidental contact with the rotating fan blade.
Pic-A-Watt Heating Elements: Exclusive King multi-tap element allows field adjustment to several wattages at time of installation. Steel sheath elements of various resistance are copper brazed to steel plate fins producing a multi-wattage heating element.
Unit Bearing Motor: Permanently lubricated, long life, unit bearing 4-Pole motor with 20 cc of oil. Enclosed rotor provides long-lasting, trouble-free operation. Thermally protected. 1500 RPM.
Aluminum Fan Blade: 5 blade fan mounted directly to the motor shaft for maximum efficiency.
CFM: 385
Universal Mounting Bracket: Combination ceiling/wall bracket is included with every heater.
Patented Smart Limit Protection (U.S. Patent #6,748,163 B2): Equipped with King’s patented thermal overload Smart Limit Protection®, which disconnects elements and motor in the event normal operating temperatures are exceeded. If thermal overload trips due to abnormal operating temperatures, thermal overload shall remain open until manually reset by turning the heater off for 15 minutes. Automatically reset of thermal overloads, which allow the element to continue to cycle under abnormal conditions, will not be accepted.
Fan Delay: The fan continues to operate after the thermostat shuts off in order to remove the residual heat left in the elements. Power must not be interrupted.
Standard Color: Onyx Gray
Easy Installation: A quick access panel located on the bottom of the heater allows for quick wiring and easy maintenance for the life of the heater. Includes universal wall/ceiling bracket for simple installation.
Approvals: cULus (E41422)
