MODEL KBP ECO2S®

Home » Products » Residential Electric Heaters » MODEL KBP ECO2S®

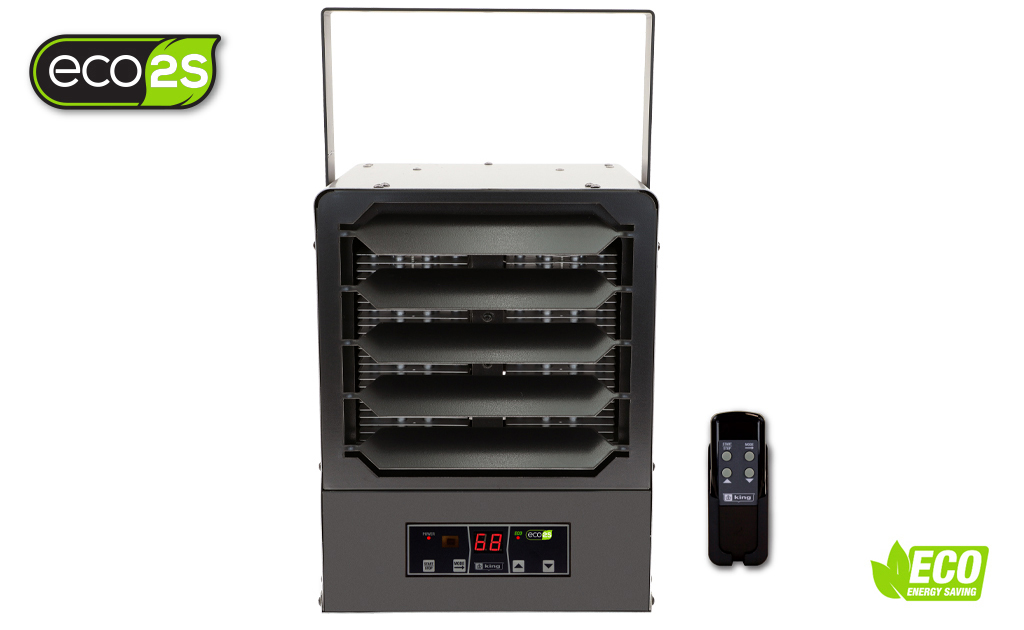

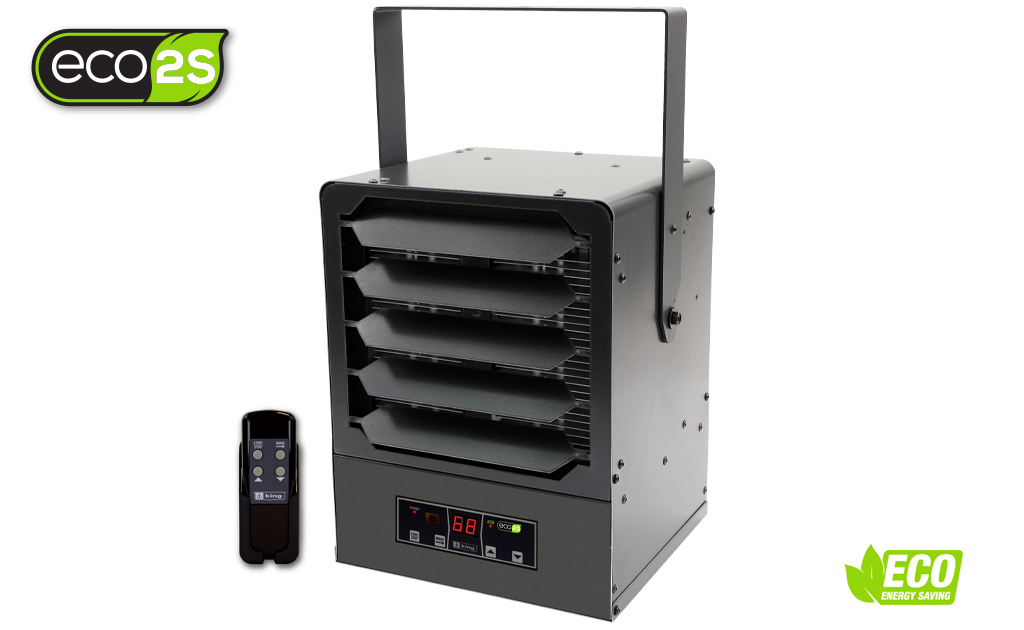

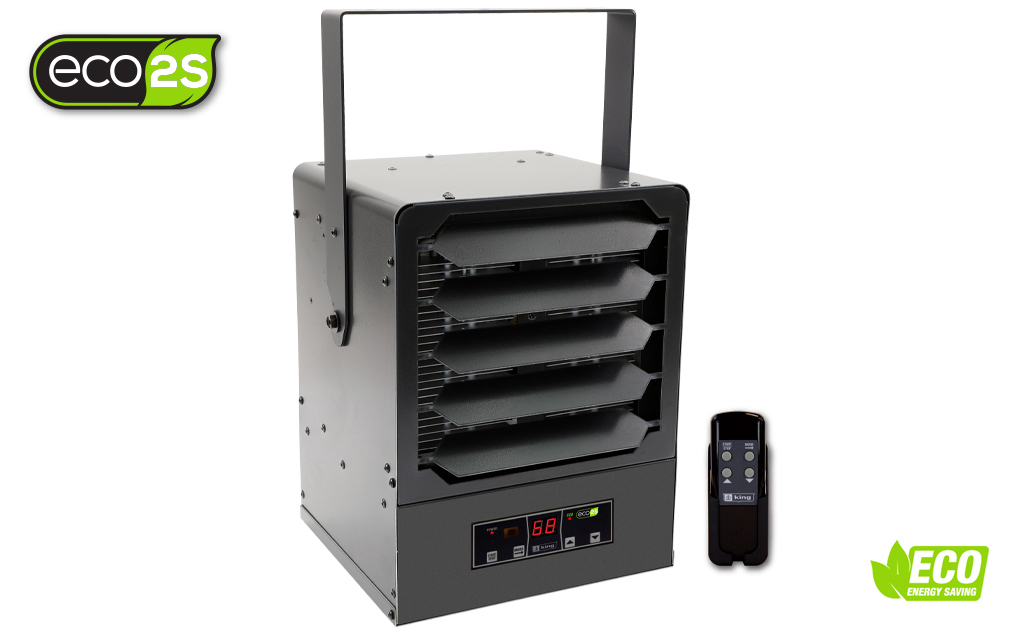

MODEL KBP ECO2S®

2-stage electronic unit heater

The KBP ECO2S series compact unit heater delivers exceptional performance, energy efficiency, and user control, featuring King’s innovative built-in ECO2S electronic thermostat with remote control. The heaters provide energy-efficient 2-stage heating, an Eco mode that automatically uses the lowest wattage needed, integrated fan-only and timer modes, and a convenient remote for simple operation.

Built for rugged performance, the flow-through design efficiently draws air in from the back and discharges it out the front, quickly heating large spaces. An integral fan delay continues to circulate heat during cool down, maximizing warmth. King’s exclusive dual Pic-A-Watt steel fin elements provide a range of wattage options, letting you tailor the heater to the specific requirements of any area.

  • Smart ECO2S® Energy-Saving Design
  • 2-Stage Heating: Automatically Uses Lowest Wattage Needed
  • Thermostat Temperature Range: 40℉ to 95℉
  • Hand Held Remote & Wall Holder
  • Timer & Summer Fan Only Modes
  • Auto Memory Feature: Returns Unit To Last Settings After Power Outage
  • Adjustable Louvers to Direct Air
  • Built-In Fan Delay To Dissipate Heat
  • Dual Pic-A-Watt® elements
  • Patented Smart Limit Protection®
  • Permanent Lubricated Unit Bearing Motor
  • Universal Wall/Ceiling Bracket Included
  • UL Certified in Canada & US
  • Proudly Made in the USA with U.S. & Global Materials
  • 5-Year Limited Warranty

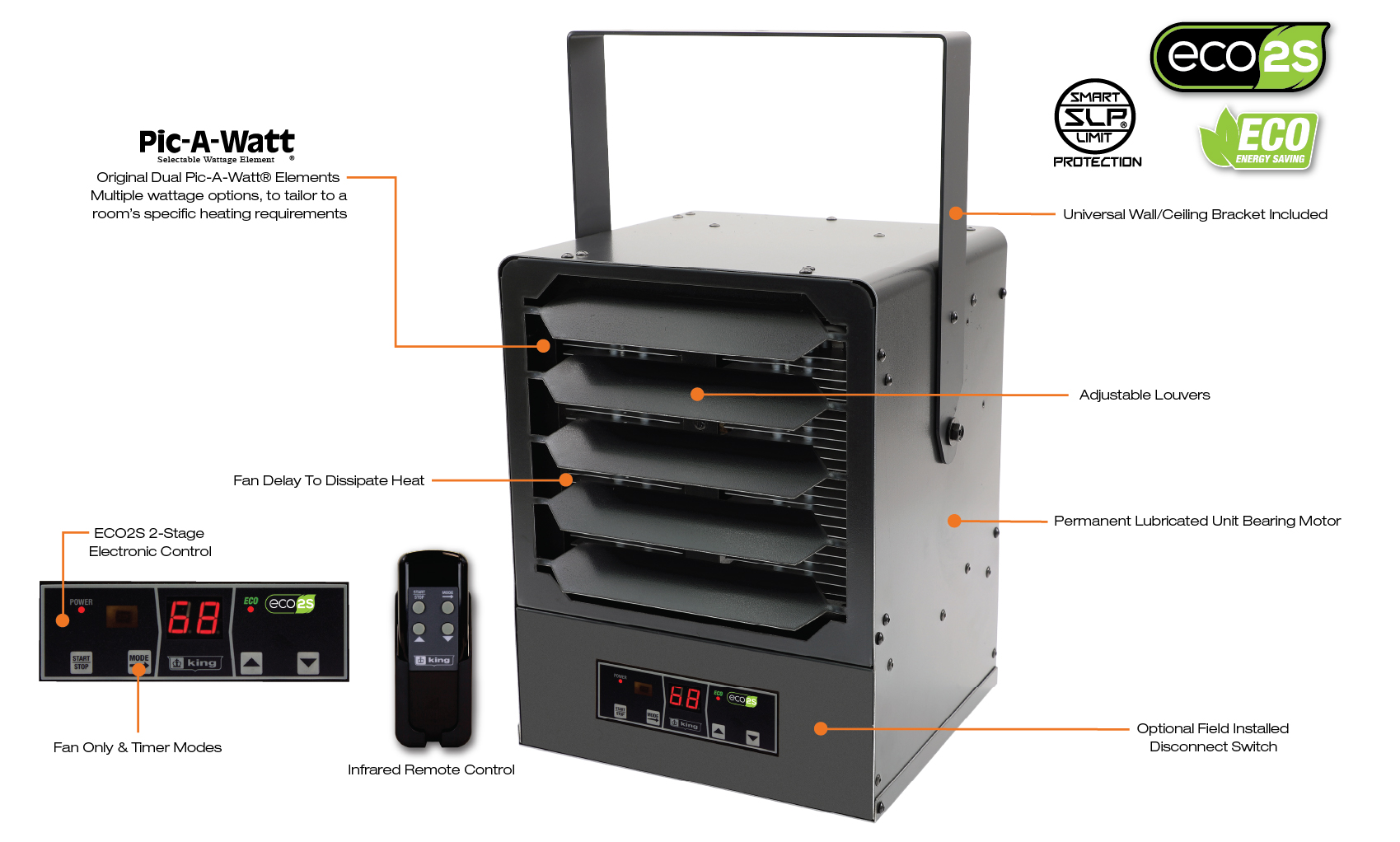

Product Features

2-Stage Energy-Saving Smart Unit Heater w/ Remote

KB ECO2S Works Smarter Not Harder by delivering exceptional performance, energy efficiency, and user control, featuring King’s innovative built-in ECO2S electronic thermostat with remote control. The heaters provide energy-efficient 2-stage heating, an Eco mode that automatically uses the lowest wattage needed, integrated fan-only and timer modes, and a convenient remote for simple operation.

Now That’s Smart!

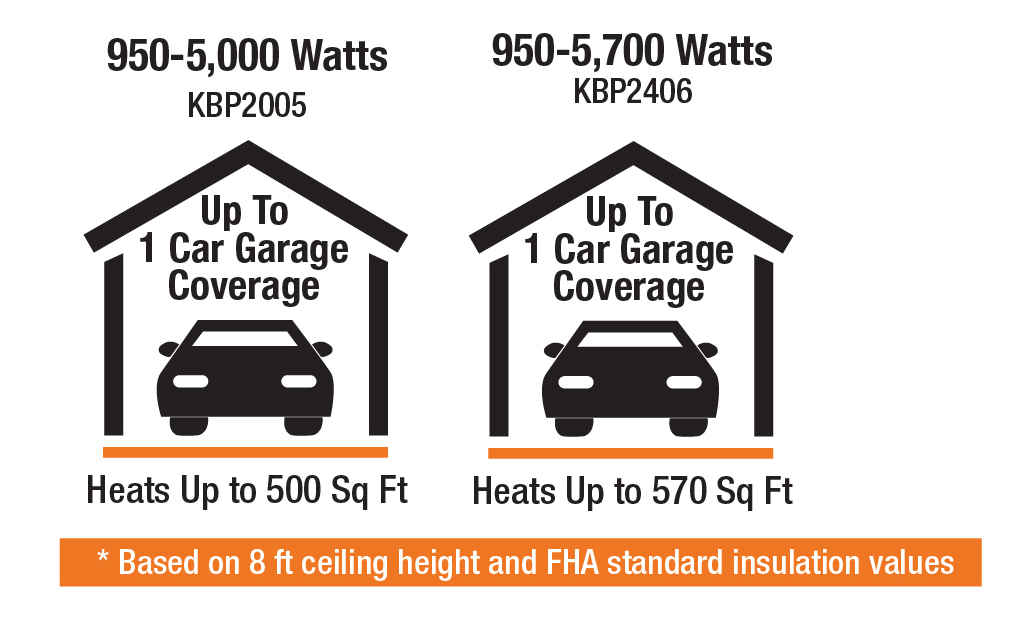

Safe Comfort For Large Spaces

Patented Smart Limit Protection (U.S. Patent #6,748,163 B2) automatically shuts power off to the heater in an abnormal event and must be manually reset for safety.

Available Models

Ordering Information - Electronic 2-Stage Thermostat

MODELUPCWATTSBTUHPHASEVOLTSAMPSCFMTEMP. RISE RANGEAIR THROWMAX. MOUNT HEIGHTWT. (lbs.)
KBP2005-1-MB-ECO2S704555000-4000-3600-2900-1450-950 17,060 - 3,242120827.4-22.8-13.7-9.1-4.638541F - 8F12ft.8ft.26
KBP2406-1-MB-ECO2S704565700-4750-3800-2850-1900-95019,454 - 3,2421240/208* 23.8-19.8-15.8-11.9-7.9-438547F - 8F12ft.8ft.26
* Approved for 208V operation. Heater will draw 13% less Amps and 25% less wattage

Ordering Information - Optional Field-Installed Disconnect Kit

MODELUPCDESCRIPTION
KBP-HFD-KIT 70470KBP HEAT/DISCONNECT SWITCH, 120-277V, FIELD INSTALLED KIT

Engineering Specs

Contractor shall supply and install KBP ECO2S Series garage heaters manufactured by King Electrical Mfg. Company. Heaters shall be of the wattage and voltage as indicated on the plans.

Construction: All exterior and interior metal enclosure parts are made from 20 gauge electrogalvanized Steel with a rust inhibiting baked enamel finish. Smooth rounded corners and protective edge trim give an attractive modern appearance.

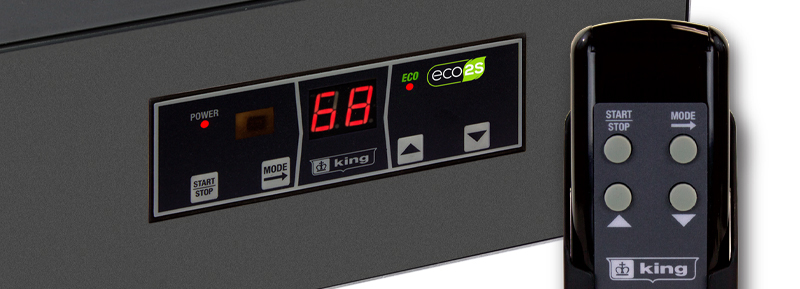

ECO2S Electronic Thermostat Control: Thermostat Temperature Range: 40℉ to 95℉. Up, Down temperature mode. Automatic 2-Stage heating (High & ECO Modes). Start/Stop. Fan Only and Timer (1-9hours) Modes. Standard on all heaters.

Auto Memory Feature: Returns Unit To Last Settings After Power Outage.

Adjustable Outlet Louver: Louvers direct air up or down as needed for the heating application.

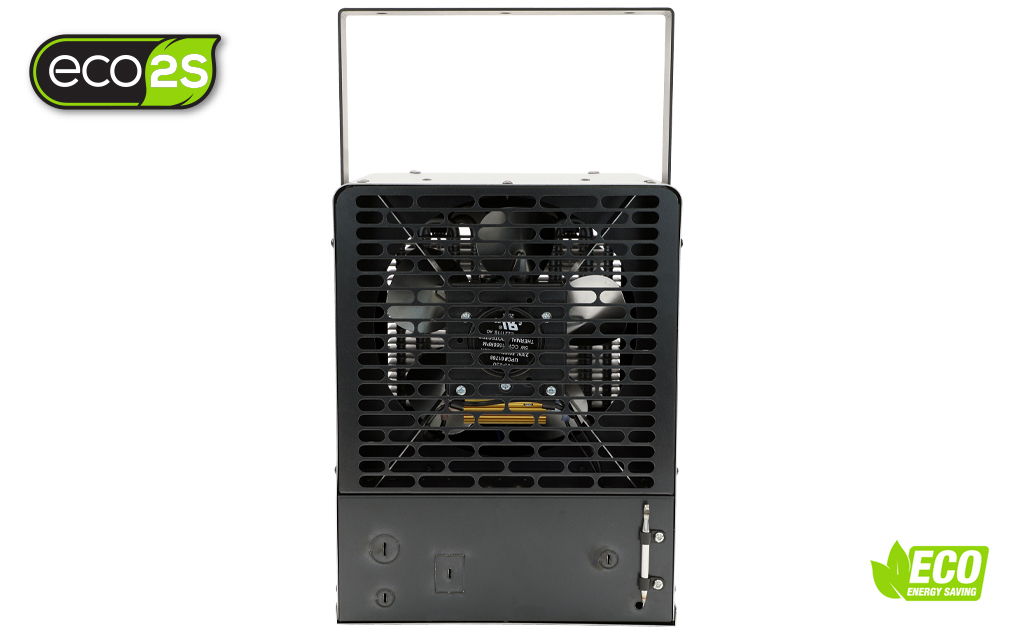

Rear Intake Screen: Heavy gauge steel screen protects against foreign objects making accidental contact with the rotating fan blade.

Pic-A-Watt Heating Elements: Exclusive King multi-tap element allows field adjustment to several wattages at time of installation. Steel sheath elements of various resistance are copper brazed to steel plate fins producing a multi-wattage heating element.

Unit Bearing Motor: Permanently lubricated, long life, unit bearing 4-Pole motor with 20 cc of oil. Enclosed rotor provides long-lasting, trouble-free operation. Thermally protected. 1500 RPM.

Aluminum Fan Blade: 5 blade fan mounted directly to the motor shaft for maximum efficiency.

CFM: 385

Universal Mounting Bracket: Combination ceiling/wall bracket is included with every heater.

Patented Smart Limit Protection (U.S. Patent #6,748,163 B2): Equipped with King’s patented thermal overload Smart Limit Protection®, which disconnects elements and motor in the event normal operating temperatures are exceeded. If thermal overload trips due to abnormal operating temperatures, thermal overload shall remain open until manually reset by turning the heater off for 15 minutes. Automatically reset of thermal overloads, which allow the element to continue to cycle under abnormal conditions, will not be accepted.

Fan Delay: The fan continues to operate after the thermostat shuts off in order to remove the residual heat left in the elements. Power must not be interrupted.

Standard Color: Onyx Gray

Easy Installation: A quick access panel located on the bottom of the heater allows for quick wiring and easy maintenance for the life of the heater. Includes universal wall/ceiling bracket for simple installation.

Approvals: cULus (E41422)
