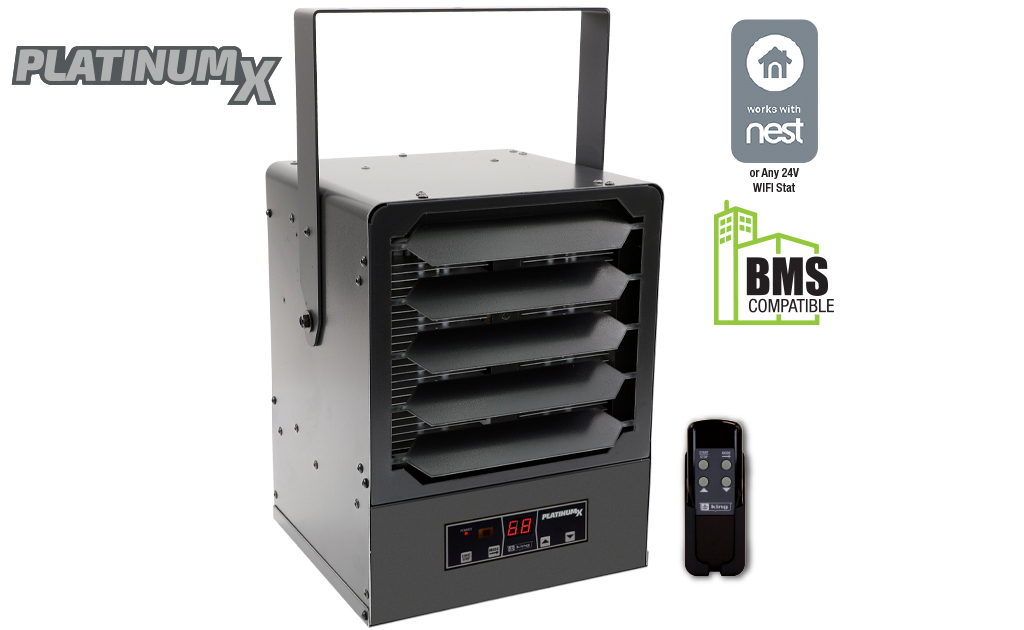

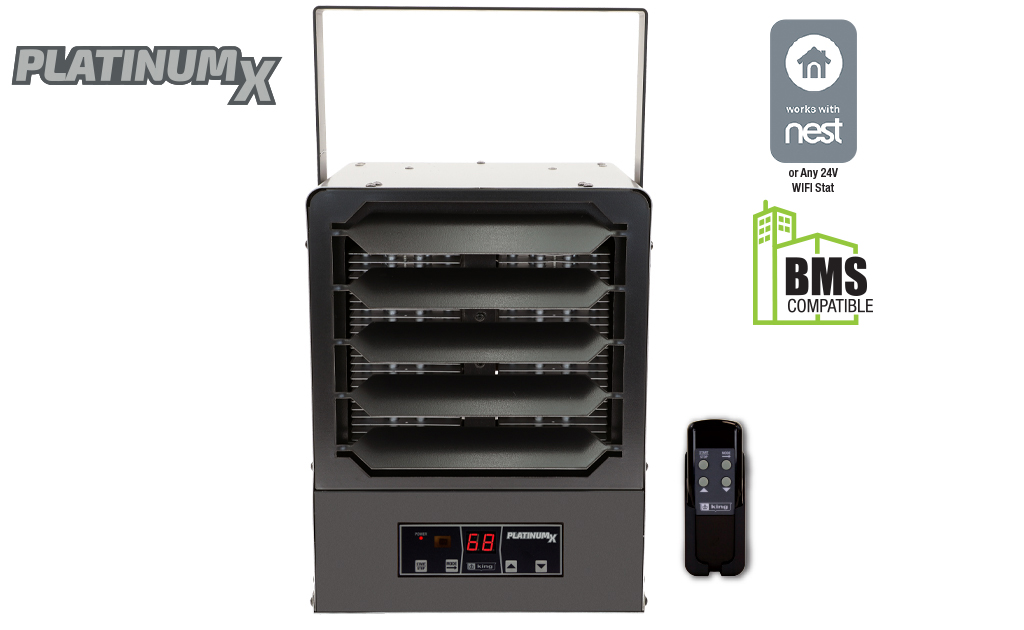

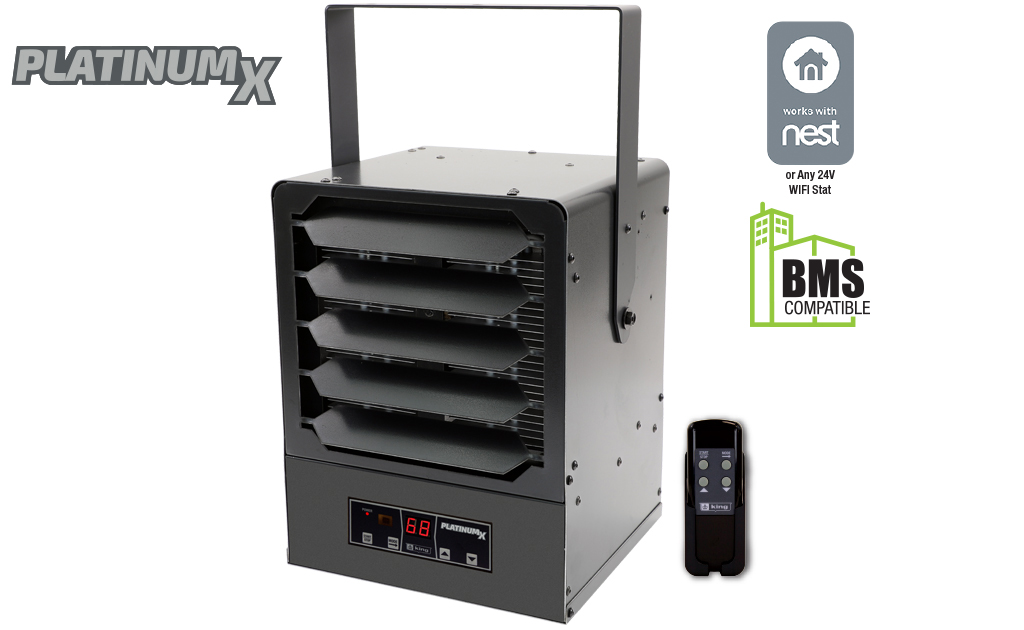

MODEL KBP PlatinumX

heavy duty electronic unit heater

King’s KBP PlatinumX series unit heaters are the most full-featured compact unit heaters, with in-built electronic thermostat for accuracy and remote control for simple operation. Comes standard with a provision for adding an optional 24V thermostat, allowing for remote temperature control or integration with a building management system (BMS). Combined with summer fan-only and thermostat timer modes, the KBP PlatinumX adapts to your needs year-round.

Designed for rugged performance, the flow-through design efficiently moves air by pulling air from the back of the heater and discharges it out the front, easily heating a large space. The integral fan delay continues to dissipate heat from the elements during the cool down period, maximizing the heat exchange in the room. King’s exclusive dual Pic-A-Watt steel fin elements allow customers to select from a range of wattage options, tailoring the heater to an area’s specific heating requirements.

  • Energy-Saving PlatinumX Electronic Temperature Controller
  • Thermostat Temperature Range: 40℉ to 95℉
  • Built-In Provision For Using Any 24V Remote Thermostat (Optional)
  • Compatible with NEST / Any 24V Thermostat, Including WIFI Stats
  • Compatible with BMS Systems
  • Remote Control Included with Wall Holder
  • Summer Fan Only & Timer Modes
  • Auto Memory Feature: Returns Unit to Last Settings After Power Outage
  • Adjustable Louvers to Direct Air
  • Built-In Fan Delay to Dissipate Heat
  • Dual Pic-A-Watt® Elements
  • Patented Smart Limit Protection®
  • Permanent Lubricated Unit Bearing Motor
  • Universal Wall/Ceiling Bracket Included
  • Proudly Made in the USA with U.S. & Global Materials
  • 5-Year Limited Warranty

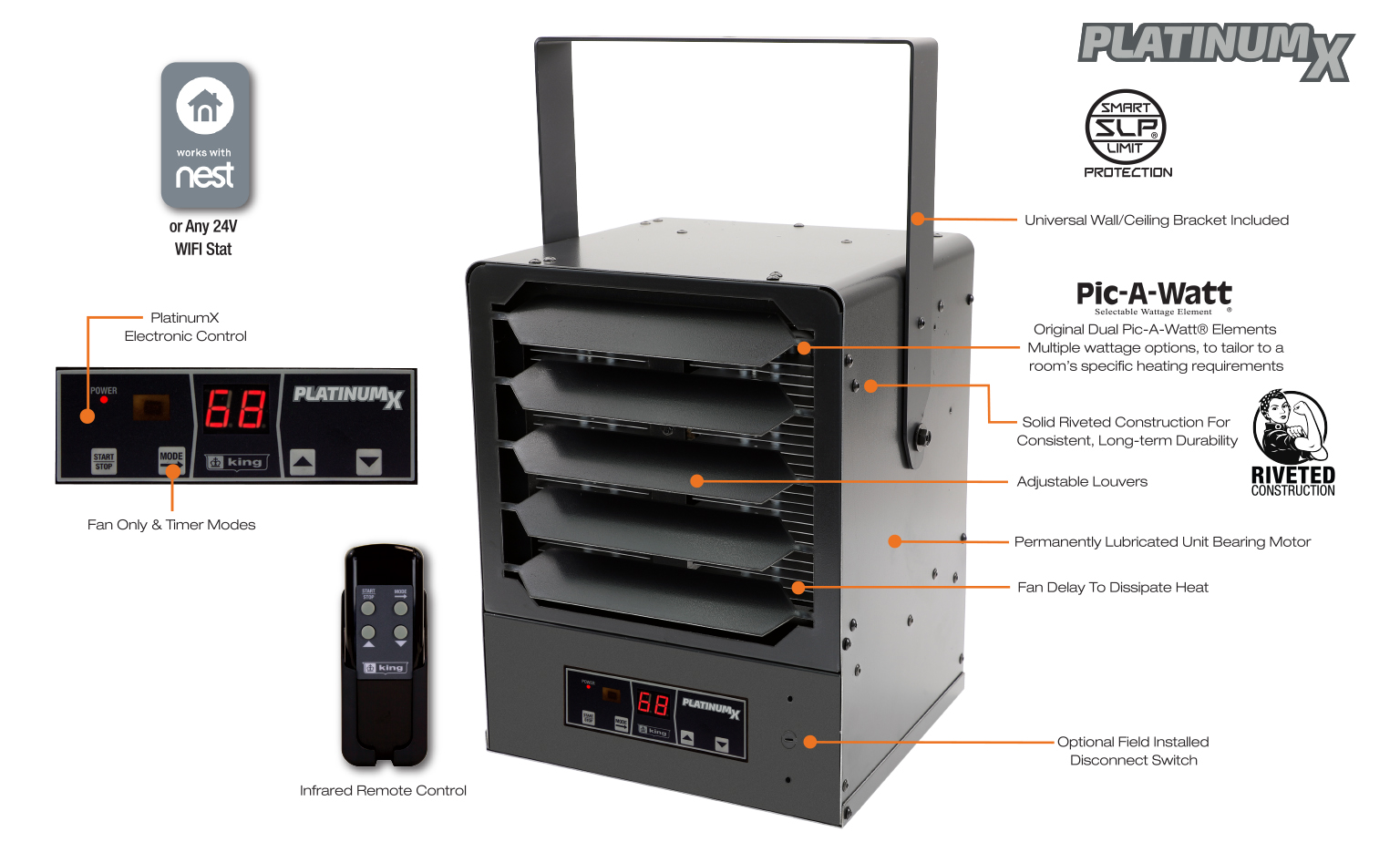

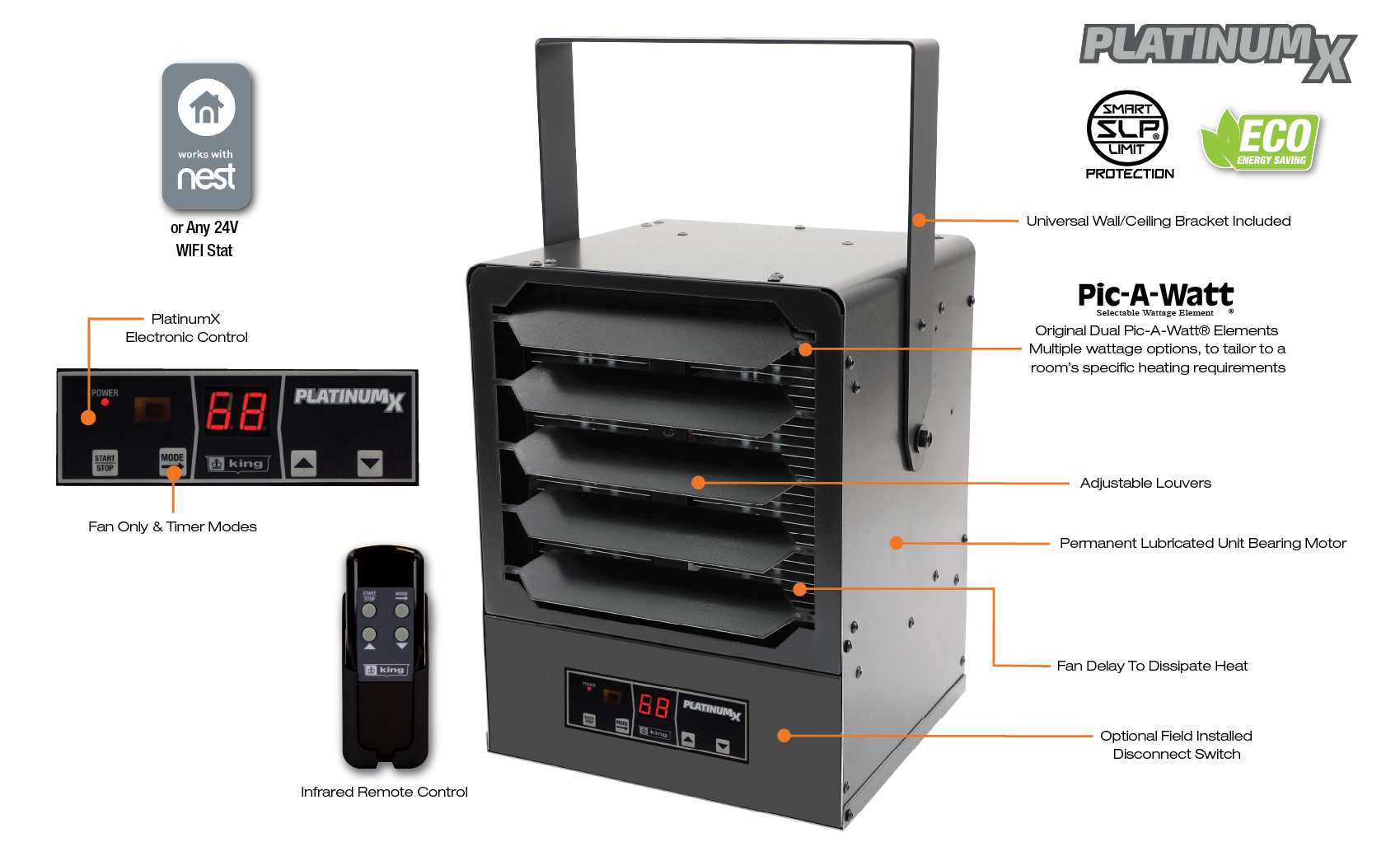

Product Features

KBP PlatinumX Works with NEST & BMS Systems

KBP PlatinumX comes standard with a provision for adding an optional 24V thermostat (including Nest), allowing for remote temperature control or simple integration with a building management system (BMS). Whether you prefer smart home convenience or centralized building control, comfort is always just a click away.

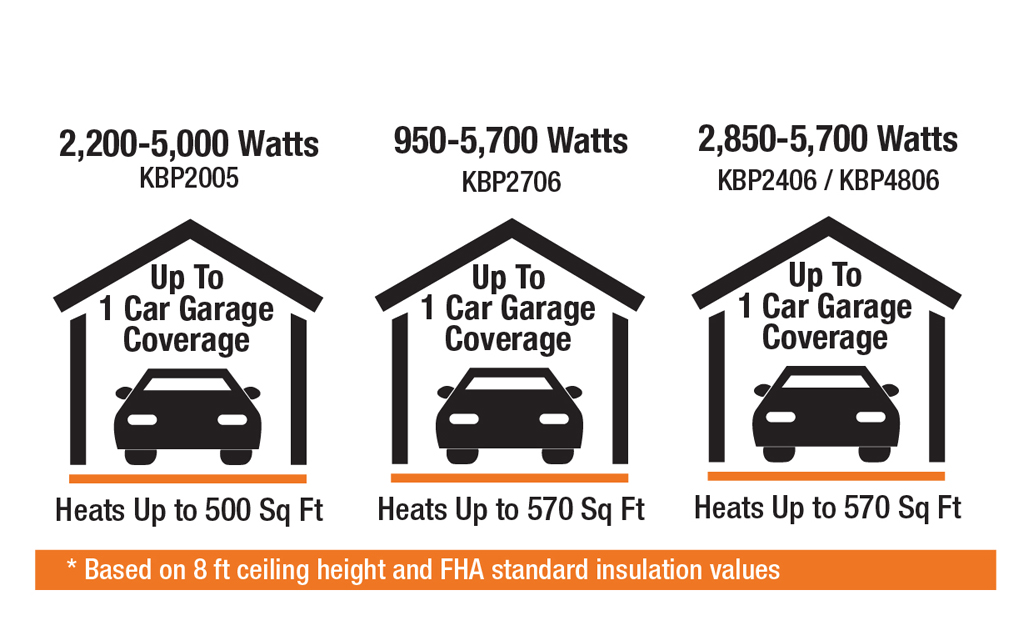

Available Models

Ordering Information - Electronic 1-Stage Thermostat

MODELUPCWATTSBTUHPHASEVOLTSAMPSCFMTEMP. RISE RANGEAIR THROWMAX. MOUNT HEIGHTWT. (lbs.)Purchase
KBP2706-1-MB-PLTMX 705415700-4750-3800-2850-1900-95019,454 - 3,242127720.6 - 3.438533F - 8F12ft.8ft.26Buy Now
KBP2005-3MP-MB-PLTMX 705425000-2900-220017,060 - 3,2421-3**20813.9 - 6.138541F - 23F12ft.8ft.26Buy Now
KBP2406-3MP-MB-PLTMX 705435700-2850 19,454 - 97241-3**240/208*13.7 - 6.938547F - 8F12ft.8ft.26Buy Now
KBP4806-3MP-MB-PLTMX 705445700-2850 19,454 - 97241-3**4806.9 - 3.438549F12ft.8ft.26Buy Now
* Approved for 208V operation. Heater will draw 13% less Amps and 25% less wattage
** 3MP Prewired for 3-Phase, Field Convertible to 1-Phase

Ordering Information - Optional Field-Installed Disconnect Kit

MODELUPCDESCRIPTIONPurchase
KBP-HFD-KIT 70470KBP HEAT/DISCONNECT SWITCH, 120-277V, FIELD INSTALLED KITBuy Now
KBP-480HFD-KITKBP HEAT/DISCONNECT SWITCH, 480V, FIELD INSTALLED KITBuy Now

Engineering Specs

Contractor shall supply and install KBP Platinum X Series unit heaters manufactured by King Electrical Mfg. Company. Heaters shall be of the wattage and voltage as indicated on the plans.

Construction: All exterior and interior metal enclosure parts are made from 20 gauge electrogalvanized Steel with a rust inhibiting baked enamel finish. Smooth rounded corners and protective edge trim give an attractive modern appearance.

PlatinumX Electronic Thermostat Control: Thermostat Temperature Range: 40℉ to 95℉. Up, down temperature mode. Start/Stop. Standard on all heaters. Heaters 25kW and above are ECO2S+ 2-stage heaters.

Provision For 24V Remote Thermostat: Includes terminals to connect an optional 24V 2-Stage Thermostat. Compatible with NEST / any 24V WIFI Stat or for integration with a building management system (BMS).

Auto Memory Feature: Returns Unit To Last Settings After Power Outage.

Adjustable Outlet Louver: Louvers direct air up or down as needed for the heating application.

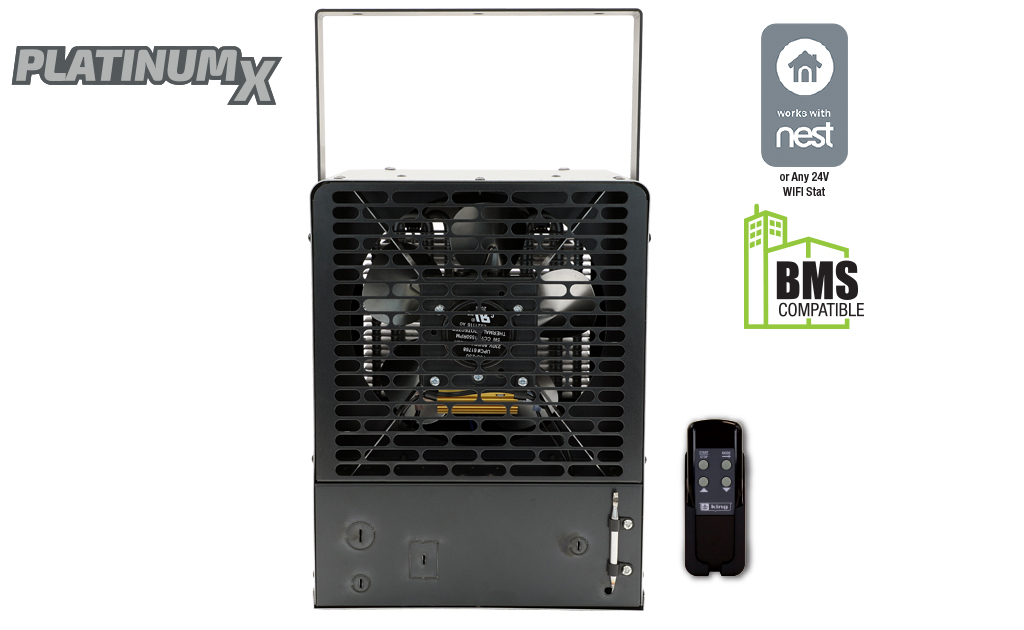

Rear Intake Screen: Heavy gauge steel screen protects against foreign objects making accidental contact with the rotating fan blade.

Pic-A-Watt Heating Elements: Exclusive King multi-tap element allows field adjustment to several wattages at time of installation. Steel sheath elements of various resistance are copper brazed to steel plate fins producing a multi-wattage heating element.

Unit Bearing Motor: Permanently lubricated, long life, unit bearing 4-Pole motor with 20 cc of oil. Enclosed rotor provides long-lasting, trouble-free operation. Thermally protected. 1500 RPM.

Aluminum Fan Blade: 5 blade fan mounted directly to the motor shaft for maximum efficiency.

CFM: 385

Universal Mounting Bracket: Combination ceiling/wall bracket is included with every heater.

Patented Smart Limit Protection (U.S. Patent #6,748,163 B2): Equipped with King’s patented thermal overload Smart Limit Protection®, which disconnects elements and motor in the event normal operating temperatures are exceeded. If thermal overload trips due to abnormal operating temperatures, thermal overload shall remain open until manually reset by turning the heater off for 15 minutes. Automatically reset of thermal overloads, which allow the element to continue to cycle under abnormal conditions, will not be accepted.

Fan Delay: The fan continues to operate after the thermostat shuts off in order to remove the residual heat left in the elements. Power must not be interrupted.

Standard Color: Onyx Gray

Easy Installation: A quick access panel located on the bottom of the heater allows for quick wiring and easy maintenance for the life of the heater. Includes universal wall/ceiling bracket for simple installation.

Approvals: cULus (E41422)
