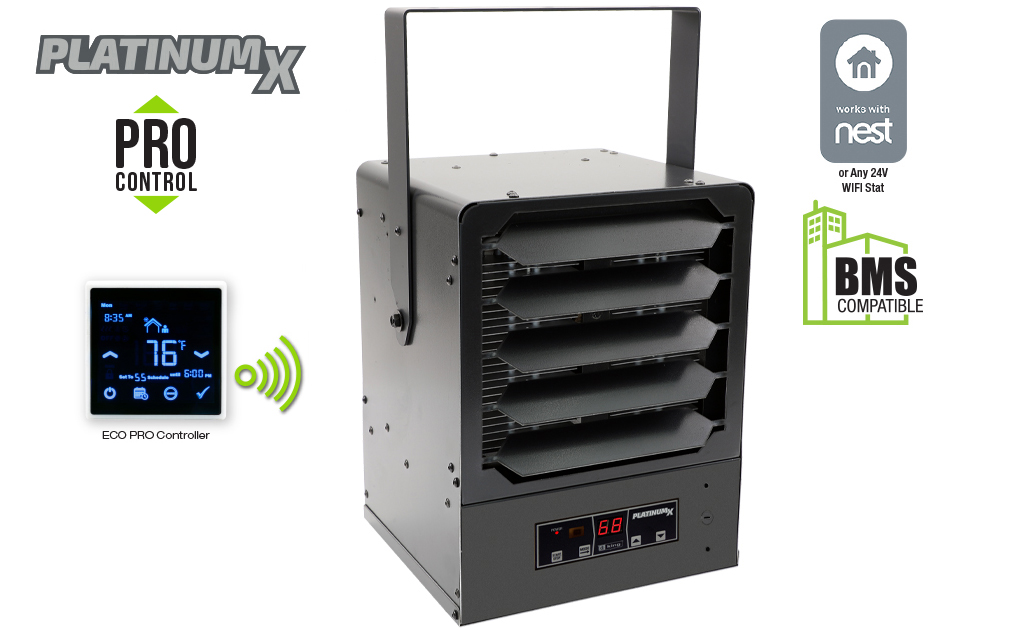

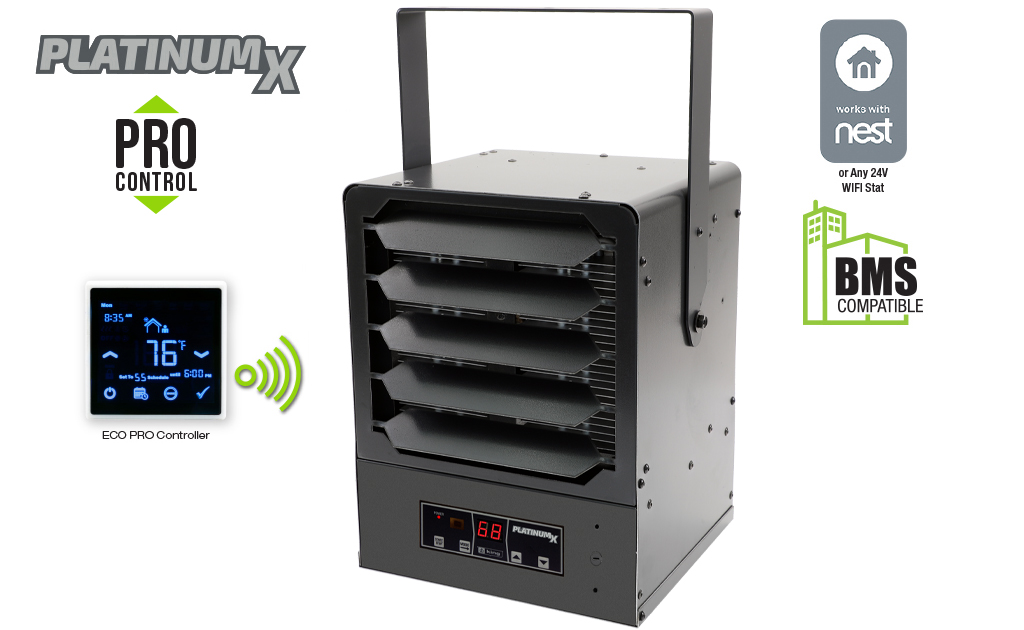

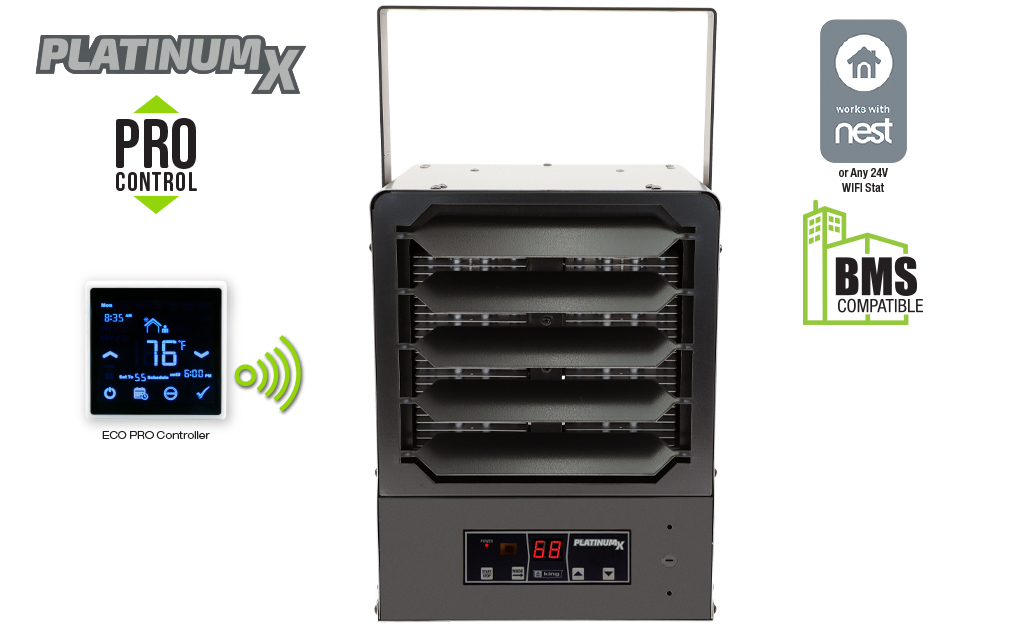

Introducing the KBP PlatinumX PRO Series — the most advanced, full-featured compact multi-wattage unit heater in the KBP family. Engineered for precision comfort, energy efficiency, and year-round versatility, it sets a new standard for performance and flexibility.
Available in 208V, 240V, 277V, and 480V, with field-convertible 1- or 3-phase configurations, the PlatinumX PRO stands apart with installation flexibility unmatched in its class — making it ideal for virtually any commercial or industrial environment.
With the new ECO PRO Controller, users gain the flexibility of an RF Wireless 7-Day Programmable Thermostat with an integrated temperature sensor. The heater monitors room conditions, detects cold spots, and automatically adjusts to maintain consistent comfort. Simply place the ECO PRO Controller on a wall or shelf to ensure the ideal temperature exactly where you need it.
The system is compatible with both wired or wireless window/door and occupancy sensors, which help reduce energy waste by setting back the temperature when a space is unoccupied or when a window or door is left open. Multiple heaters can also be paired to a single ECO PRO Controller, creating smart heating zones within a space for optimal comfort and control.
A standard provision for an optional 24V remote thermostat allows integration with a building management system (BMS). Combined with summer fan-only and thermostat timer modes, the KBP PlatinumX PRO adapts to your needs year-round.

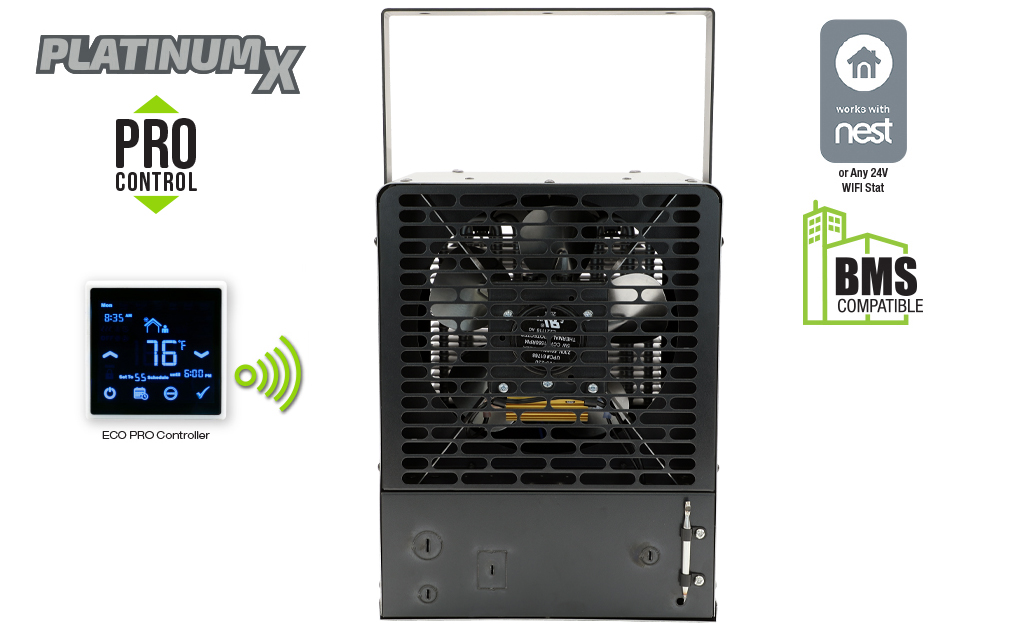

Built for rugged performance in commercial environments, the flow-through design efficiently draws air in from the back and discharges it out the front, quickly heating large spaces. An integral fan delay continues to circulate heat during cool-down, maximizing warmth. King’s exclusive dual Pic-A-Watt® steel fin elements provide a range of wattage options, allowing the heater to be precisely tailored to any application.
- Energy-Saving PlatinumX Design
- Includes ECO PRO Controller Wireless RF 7-Day Programmable Thermostat
- Remote Temperature Sensing - Place ECO PRO Controller On a Wall or Shelf & Get the Right Temperature, Right Where You Want It.
- Thermostat Temperature Range: 40℉ to 95℉
- Create Heat Zones - Connect Multiple Heaters To Single Pro Controller
- Built-In Provision For Using Any 24V Remote Thermostat (Optional)
- Compatible with NEST / Any 24V Thermostat, Including WIFI Stats
- Compatible with BMS Systems
- Timer & Summer Fan Only Modes
- Auto Memory Feature: Returns Unit to Last Settings After Power Outage
- Adjustable Louvers to Direct Air
- Built-In Fan Delay to Dissipate Heat
- Dual Pic-A-Watt® Elements
- Patented Smart Limit Protection®
- 385 CFM Output
- Solid Riveted Construction For Consistent, Long-Term Durability
- Permanently Lubricated Unit Bearing Motor
- Universal Wall/Ceiling Bracket Included
- Proudly Made in the USA with U.S. & Global Materials
- 5-Year Limited Warranty

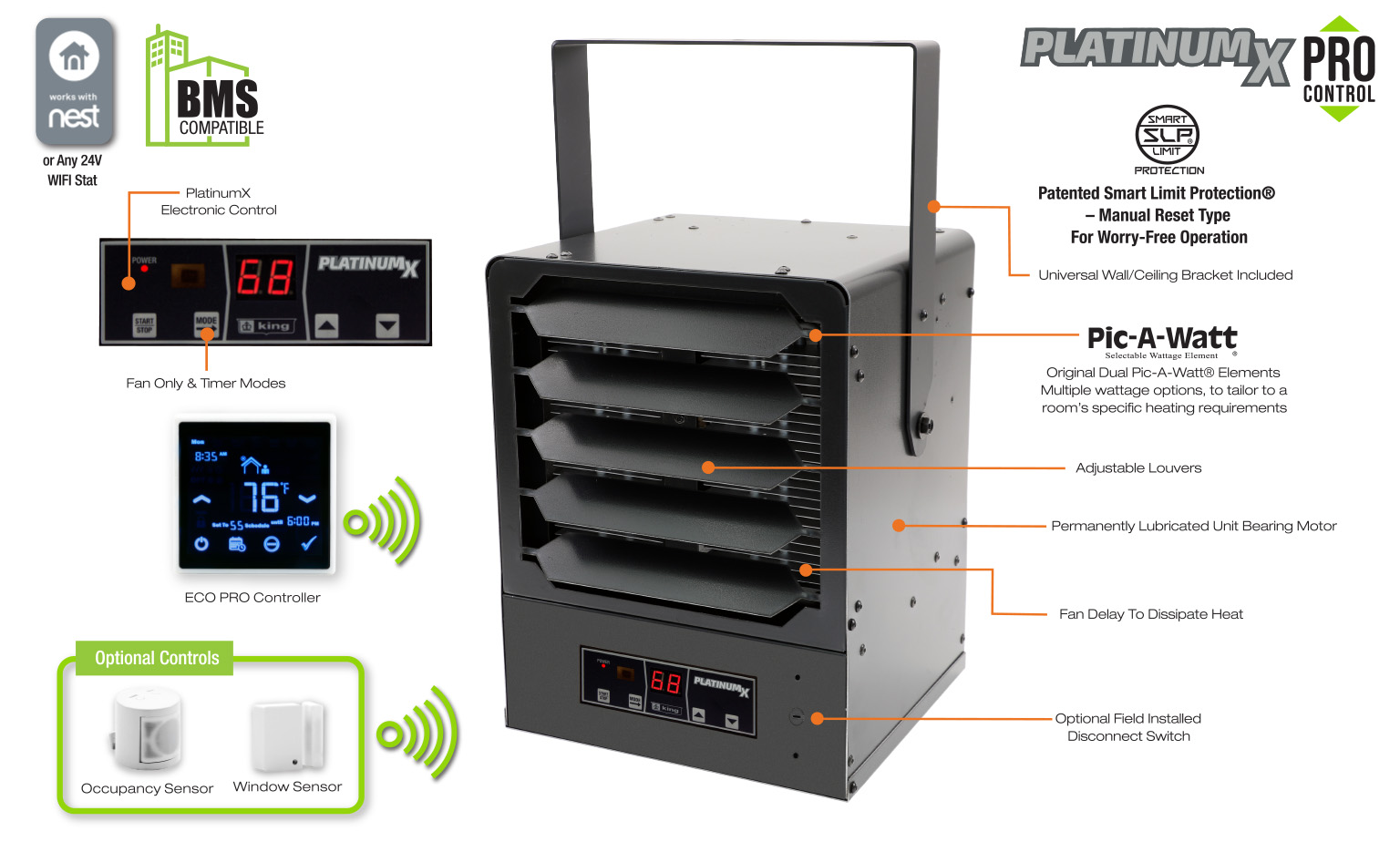

Product Features

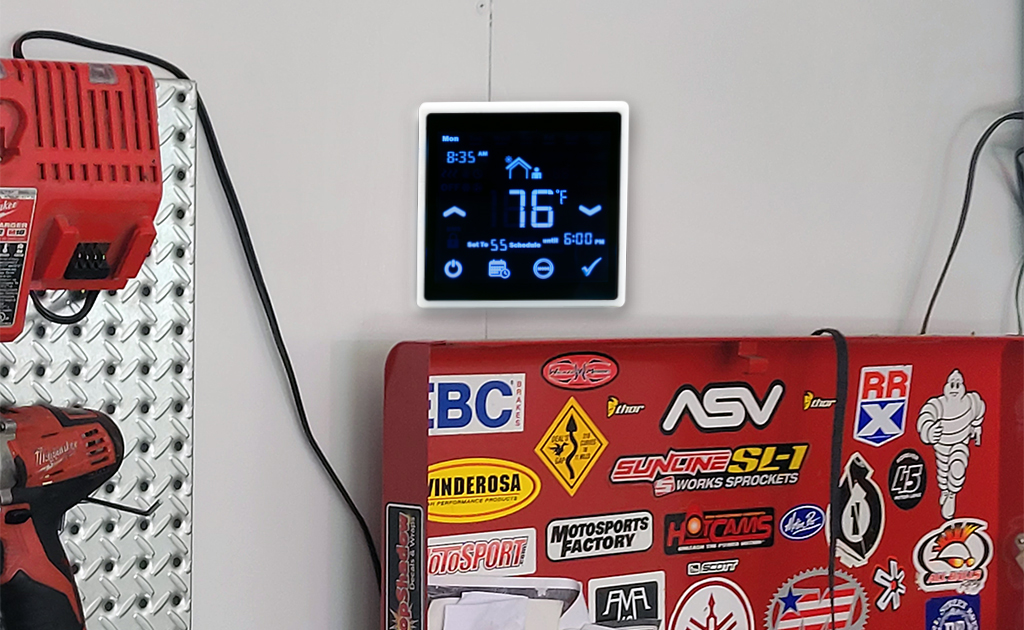

Meet The ECO PRO Controller & Schedule Your Comfort Witn Ease
With the new ECO PRO Controller, users gain the flexibility of an RF Wireless 7-Day Programmable Thermostat with an integrated temperature sensor. The heater monitors room conditions, detects cold spots, and automatically adjusts to maintain consistent comfort. Simply place the ECO PRO Controller on a wall or shelf to ensure the ideal temperature exactly where you need it.
Expand Your Control With Optional Window/Door & Occupancy Sensors
Compatible with both optional wired or wireless window/door and occupancy sensors, reducing energy waste by setting back the temperature when a space is unoccupied or when a window or door is left open. Multiple heaters can also be paired to a single ECO PRO Controller, creating smart heating zones within a space for optimal comfort and control.
BMS Compatability Means Seamless Integration With Your Building
KBP PlatinumX Pro provides a standard provision for connecting an optional 24V thermostat. This allows integration with Nest, other smart thermostats, or a building management system (BMS), giving users remote temperature control, automated scheduling, and energy savings. Whether managing a single garage or an entire facility, the 24V circuit makes it easy to monitor and adjust comfort settings from anywhere, while maintaining precise, energy-efficient operation.
Safe Comfort For Large Spaces
Patented Smart Limit Protection (U.S. Patent #6,748,163 B2) automatically shuts power off to the heater in an abnormal event and must be manually reset for safety.
Available Models
Ordering Information - Electronic 1-Stage Thermostat
| MODEL | UPC | PRO CONTROLLER | WATTS | BTUH | PHASE | VOLTS | AMPS | CFM | TEMP. RISE RANGE | AIR THROW | MAX. MOUNT HEIGHT | WT. (lbs.) | Purchase |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KBP2706-1-MB-PLTMX-PRO | 70584 | INCLUDED | 5700-4750-3800-2850-1900-950 | 19,454 - 3,242 | 1 | 277 | 14.5-10.8-7.2-3.6 | 385 | 33F - 8F | 12ft. | 8ft. | 26 | Buy Now |
| KBP2005-3MP-MB-PLTMX-PRO | 70585 | INCLUDED | 5000-2900-2200 | 17,060 - 3,242 | 1-3** | 208 | 15.8-7.9 | 385 | 41F - 23F | 12ft. | 8ft. | 26 | Buy Now |
| KBP2406-3MP-MB-PLTMX-PRO | 70586 | INCLUDED | 5700-2850 | 19,454 - 3,242 | 1-3** | 240/208* | 13.7-6.9 | 385 | 47F - 8F | 12ft. | 8ft. | 26 | Buy Now |
| KBP4806-3MP-MB-PLTMX-PRO | 70587 | INCLUDED | 5700-2850 | 19,454 - 3,242 | 1-3** | 480 | 7.2 | 385 | 49F | 12ft. | 8ft. | 26 | Buy Now |
Ordering Information - Optional Field-Installed Control Accessories
| MODEL | UPC | DESCRIPTION | Purchase |
|---|---|---|---|
| ECO-PRO-RF-PIR-SENSOR | 70422 | RF Battery Powered PIR Occupancy Sensor for ECO Models | Buy Now |
| ECO-PRO-RF-WINDOW-SENSOR | 70423 | RF Battery Powered PIR Window or Door Sensor for ECO Models | Buy Now |
| ECO-PRO-CONTROLLER | 70421 | Replacement Pro Controller - 7-Day Programmable Thermostat/Remote Sensor/Remote | Buy Now |
Ordering Information - Optional Field-Installed Accessories
| MODEL | UPC | DESCRIPTION | Purchase |
|---|---|---|---|
| KBP-HFD-KIT | 70470 | KBP HEAT/DISCONNECT SWITCH, 120-277V, FIELD INSTALLED KIT | Buy Now |
| KBP-480HFD-KIT | 70551 | KBP HEAT/DISCONNECT SWITCH, 480V, FIELD INSTALLED KIT | Buy Now |
| KBP-S2-SMB | 70570 | OPTIONAL SWIVEL MOUNTING BRACKET | Buy Now |
| KBP-S2-MB | 70571 | REPLACEMENT UNIVERSAL MOUNTING BRACKET | Buy Now |

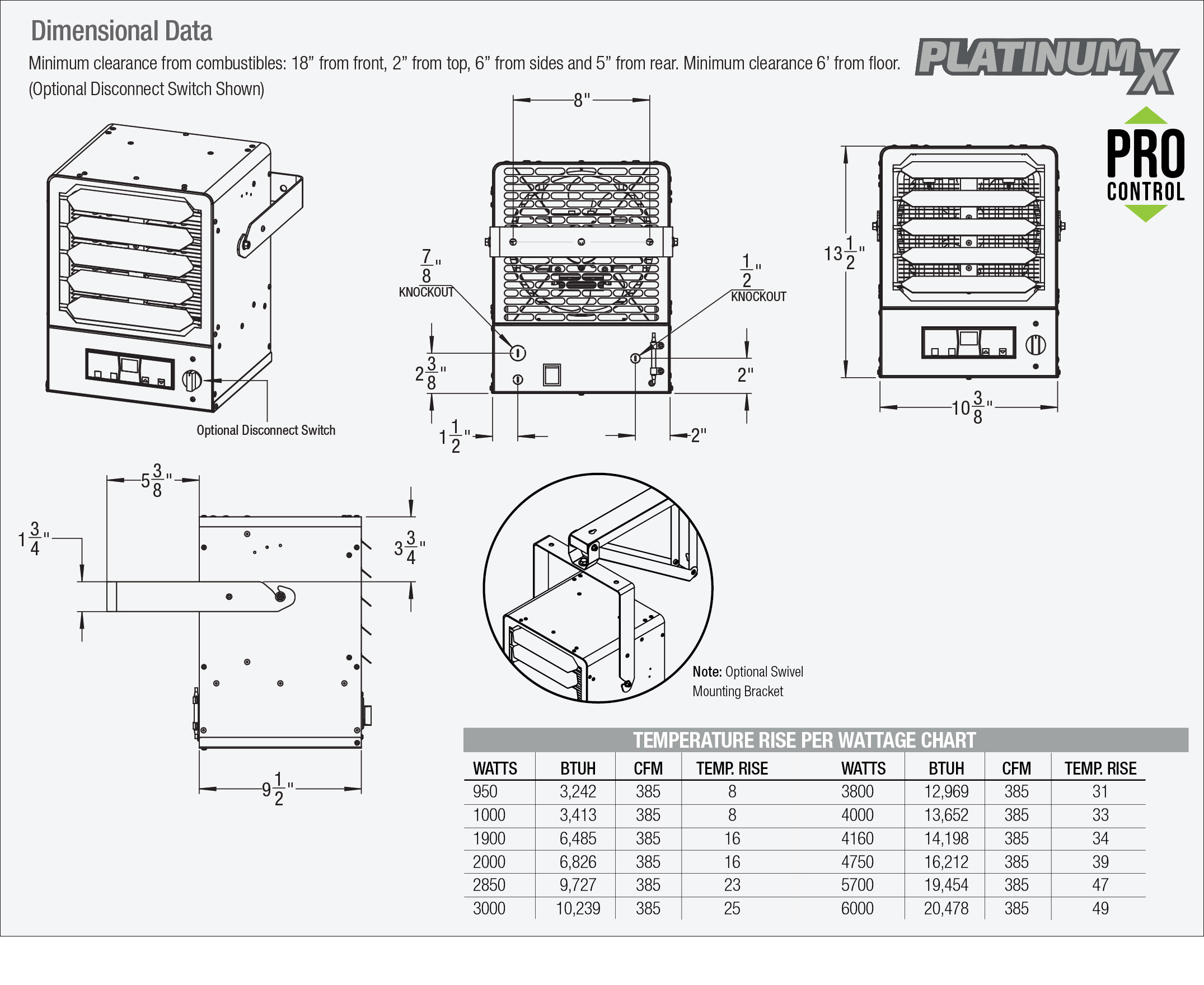

Engineering Specs
Contractor shall supply and install KBP PlatinumX Pro Series unit heaters manufactured by King Electrical Mfg. Company. Heaters shall be of the wattage and voltage as indicated on the plans.
Construction: All exterior and interior enclosure components are fabricated from 20-gauge electrogalvanized steel with a rust-inhibiting baked enamel finish. Components are assembled using solid mechanical rivets rather than spot welding, eliminating heat-affected zones and hidden weld defects. Riveted joints are fully visible and inspectable, providing consistent structural integrity under vibration and thermal cycling. Smooth rounded corners provide a clean, modern appearance.
PlatinumX Electronic Thermostat Control: Thermostat Temperature Range: 40℉ to 95℉. Up, down temperature mode. Start/Stop. Standard on all heaters.
Provision For 24V Remote Thermostat: Includes terminals to connect an optional 24V Thermostat or BMS Systems. Compatible with NEST / any 24V WIFI Stat / 5-Wire BMS Systems.
ECO PRO Controller Remote 7-Day Thermostat: RF 2.4G RF Wireless Protocol. 7-day programmable touch sensitive thermostats with an integrated temperature sensor. Enables custom 7-day programmable heating schedules, functions as both a remote temperature sensor and a handheld remote control for heater operation.
Auto Memory Feature: Returns Unit To Last Settings After Power Outage
Adjustable Outlet Louver: Louvers direct air up or down as needed for the heating application.
Rear Intake Screen: Heavy gauge steel screen protects against foreign objects making accidental contact with the rotating fan blade.
Pic-A-Watt Heating Elements: Exclusive King multi-tap element allows field adjustment to several wattages at time of installation. Steel sheath elements of various resistance are copper brazed to steel plate fins producing a multi-wattage heating element.
Unit Bearing Motor: Permanently lubricated, long life, unit bearing 4-Pole motor with 20 cc of oil. Enclosed rotor provides long-lasting, trouble-free operation. Thermally protected. 1500 RPM.
Aluminum Fan Blade: 5 blade fan mounted directly to the motor shaft for maximum efficiency.
CFM: 385
Universal Mounting Bracket: Combination ceiling/wall bracket is included with every heater.
Patented Smart Limit Protection (U.S. Patent #6,748,163 B2): Equipped with King’s patented thermal overload Smart Limit Protection®, which disconnects elements and motor in the event normal operating temperatures are exceeded. If thermal overload trips due to abnormal operating temperatures, thermal overload shall remain open until manually reset by turning the heater off for 15 minutes. Automatically reset of thermal overloads, which allow the element to continue to cycle under abnormal conditions, will not be accepted.
Fan Delay: The fan continues to operate after the thermostat shuts off in order to remove the residual heat left in the elements. Power must not be
interrupted.
Standard Color: Onyx Gray
Easy Installation: A quick access panel located on the bottom of the heater allows for quick wiring and easy maintenance for the life of the heater. Includes universal wall/ceiling bracket for simple installation.
Approvals: cULus (E41422) Seattle Energy Code Compliant
