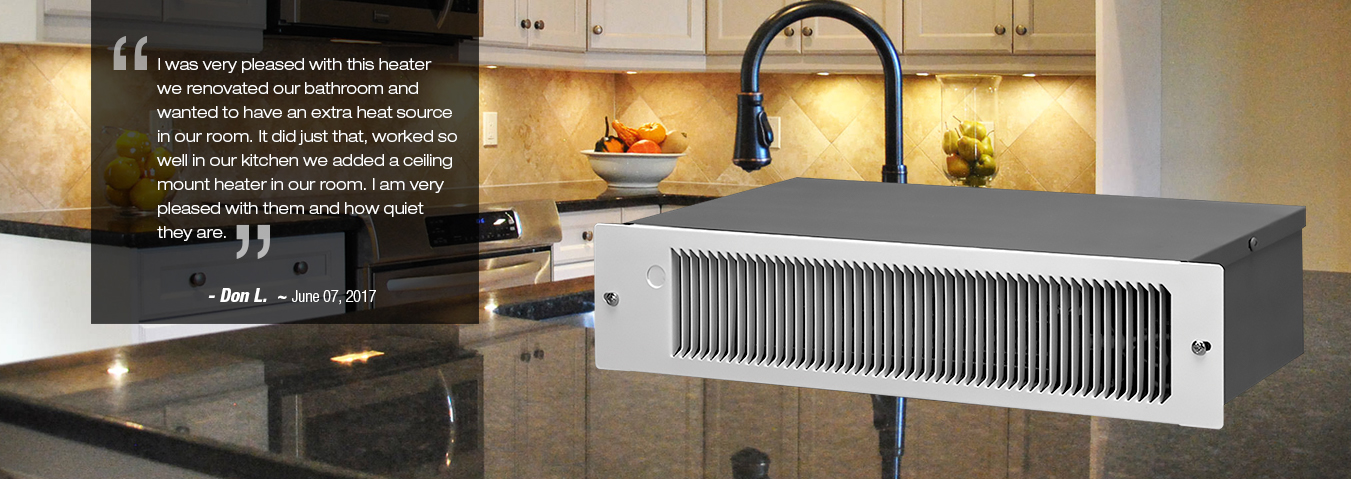

This narrow profile multi-wattage heater is only 3½” tall and specifically designed to conveniently fit under kitchen or bathroom cabinets, providing warm air for cold bathroom or kitchen. Valuable floor and wall space is saved. The optional KTG-24W Retrofit Grill allows for easy replacement of older kickspace heaters. Install heater and fit with long grill to cover existing cutout. For applications other than kickspace use KTG-OL Grill. Check floor covering manufacturer’s recommendation for acceptable surface temperature.
- Fits Under Kitchen & Bath Cabinets
- NiChrome Open Coil Element For Quick Heat Transfer
- Multiple Wattage Options, to Tailor to a Room’s Specific Heating Requirements
- Squirrel Cage Blower
- Patented Smart Limit Protection®
- Proudly Made in the USA with U.S. & Global Materials
- 1-Year Limited Warranty
Felt But Not Seen
Often-overlooked, Kickpace heaters deliver the best of both worlds. Cost-effective heating in a compact package. Their modest size means that in a room with a challenging layout, one that would not accommodate a baseboard heater, a Kickspace heater may be able to fit in seamlessly, installed at floor level beneath cabinetry or even inside the wall. Also provides multiple wattage options, to easily tailor the heater to a room’s specific heating requirements between 250-1500W.
Now That’s Smart!
Fits Where Others Can't. Only 3½" Tall
With its narrow 3-1/2″ profile the KT Kickspace heater easily fits out of the way, under cabinets providing warm air for cold bathrooms and kitchens.
Now That’s Smart!
Available Models
Ordering Information
| BASE MODEL | VOLTS | WATTS | AMPS | COLOR | SHIP WEIGHT lbs | Purchase |
|---|---|---|---|---|---|---|
| KT1215-MW-W | 120 | 250-500-750-1000-1250-1500 | 2.1 - 12.5 | WHITE | 8.5 | Buy Now |
| KT1215-MW-B | 120 | 250-500-750-1000-1250-1500 | 2.1 - 12.5 | BLACK | 8.5 | Buy Now |
| KT2415-MW-W | 240/208* | 250-500-750-1000-1250-1500 | 1.0 - 6.3 | WHITE | 8.5 | Buy Now |
| KT2415-MW-B | 240/208* | 250-500-750-1000-1250-1500 | 1.0 - 6.3 | BLACK | 8.5 | Buy Now |
| KT1215-MW-T-W | 120 | 250-500-750-1000-1250-1500 | 2.1 - 12.5 | WHITE | 8.5 | Buy Now |
| KT2415-MW-T2-W | 240/208* | 250-500-750-1000-1250-1500 | 1.0 - 6.3 | WHITE | 8.5 | Buy Now |
Ordering Information - Factory Installed Options
| ADD SUFFIX | DESCRIPTION | SHIP WEIGHT lbs |
|---|---|---|
| -B | Black Color | 0 |
| -W | White Color | 0 |
| -SS | Stainless Steel Color | 0 |
| -T | Onboard Single Pole Thermostat Kit | 9 |
| -T2 | Onboard Double Pole Thermostat Kit | 9 |
| -HRC | Interior & Recessed Wall Can | 7.5 |
Order A'la Carte Step 1 - Ordering Information
| ADD SUFFIX | UPC | DESCRIPTION | SHIP WEIGHT lbs | Purchase |
|---|---|---|---|---|
| KT1215-MW-HRC | 32714 | KT Kick Space HTR 120V 1500W Interior & Recessed Wall Can | 7.5 | Buy Now |
| KT2415-MW-HRC | 32718 | KT Kick Space HTR 240/208V 1500W/1125W Interior and Recessed Wall Can | 7.5 | Buy Now |
Order A'la Carte Step 2 - Ordering Information
| ADD SUFFIX | UPC | DESCRIPTION | SHIP WEIGHT lbs | Purchase |
|---|---|---|---|---|
| KTG-A | 12296 | Grill, Recessed - Almond - 3-1/2" x 16-1/2" | 1 | Buy Now |
| KTG-B | 12297 | Grill, Recessed - Black - 3-1/2" x 16-1/2" | 1 | Buy Now |
| KTG-W | 12295 | Grill, Recessed - White - 3-1/2" x 16-1/2" | 1 | Buy Now |
| KTG-SS-3-1/2 | 12267 | Grill, Recessed - Stainless Steel Standard- 3-1/2" x 16-1/2" | 1 | Buy Now |
| KTG-OL-B | 12268 | Grill, Surface Trim - Overlap 1/2" on All Sides - Black - 4-1/2" x 16-1/2" | 1.1 | Buy Now |
| KTG-OL-W | 12275 | Grill, Surface Trim - Overlap 1/2" on All Sides - White - 4-1/2" x 16-1/2" | 1.1 | Buy Now |
| KTG-SS | 12269 | Grill, Surface Trim - Overlap 1/2" on All Sides - Stainless Steel - 4-1/2" x 16-1/2" | 1.1 | Buy Now |
| KTG-24W-A | 20533 | Grill, Retrofit - Almond - 24" x 3-3/8" | 1 | Buy Now |
| KTG-24W-B | 12299 | Grill, Retrofit - Black - 24" x 3-3/8" | 1 | Buy Now |
| KTG-24W-W | 12276 | Grill, Retrofit - White - 24" x 3-3/8" | 1 | Buy Now |
Ordering Information - Accessories
| ADD SUFFIX | UPC | DESCRIPTION | SHIP WEIGHT lbs | Purchase |
|---|---|---|---|---|
| TKIT-1BW | 20654 | Built-in Single Pole Single Throw Thermostat Kit, Bright White | 0.5 | Buy Now |
| TKIT-2BW | 20655 | Built-in Double Pole Single Throw Thermostat Kit, Bright White | 0.5 | Buy Now |
| TKIT-1A | 11058 | Built-in Single Pole Single Throw Thermostat Kit, Almond | 0.5 | Buy Now |
| TKIT-2A | 11059 | Built-in Double Pole Single Throw Thermostat Kit, Almond | 0.5 | Buy Now |
| TKIT-1-TP | 11056 | Built-in Tamper Proof Single Pole Single Throw Thermostat Kit | 0.4 | Buy Now |
| TKIT-2-TP | 11057 | Built-in Tamper Proof Double Pole Single Throw Thermostat Kit | 0.4 | Buy Now |
| TKIT-1B | 17346 | Built-in Single Pole Single Throw Thermostat Kit, Black | 0.5 | Buy Now |
| TKIT-2B | 17347 | Built-in Double Pole Single Throw Thermostat Kit, Black | 0.5 | Buy Now |
| DS15 | 13824 | Disconnect Switch, Field Installed Kit (10A/ 240V / 15A/120V) | 0.5 | Buy Now |
Engineering Specs
Contractor shall supply and install KT Series limited space-mounted forced air electric heaters manufactured by King Electrical Mfg. Company. Heaters shall be of the wattage and voltage as indicated on the plans.
Ratings: Heaters shall be available in wattages of 250 to 1,500 at 120 Volts or dual rated from 208 Volts to 240 Volts.
Blower and Motor: A tangential cylindrical blower, delivering 70 CFM, shall be driven by a shaded pole, permanently lubricated, C-frame type motor with impedance protection and sealed bearings. Motors shall be the same voltage as the heater.
Elements: Element assemblies shall be dual element construction of coiled Nickel Chromium alloy, corrosion resistant wire strung through a minimum of four rows of mica insulator. Element assemblies shall have factory provided connection to allow field modification to 50% wattage at time of installation.
Grill: The grill shall be a louvered, one-piece design. The grill shall be epoxy powder-coated in the color specified on the plans.
Thermal Overload: Heaters shall be equipped with King’s patented thermal overload Smart Limit Protection®, which disconnects elements and motor in the event normal operating temperatures are exceeded. If thermal overload trips due to abnormal operating temperatures, thermal overload shall remain open until manually reset by turning the heater off for fifteen minutes. Automatic reset of thermal overloads, which allow the element to continue to cycle under abnormal conditions, will not be accepted.
Wall Can: The wall can shall be 20 gauge electrogalvanized steel and contain knockouts. The wall can shall be supplied with a factory installed ground wire. Zero Clearance to floors and 6” to sidewalls.
Approvals: cULus (E41422)
