MODEL KTW

Home » Products » Residential Electric Heaters » Fan-Driven Heaters » MODEL KTW

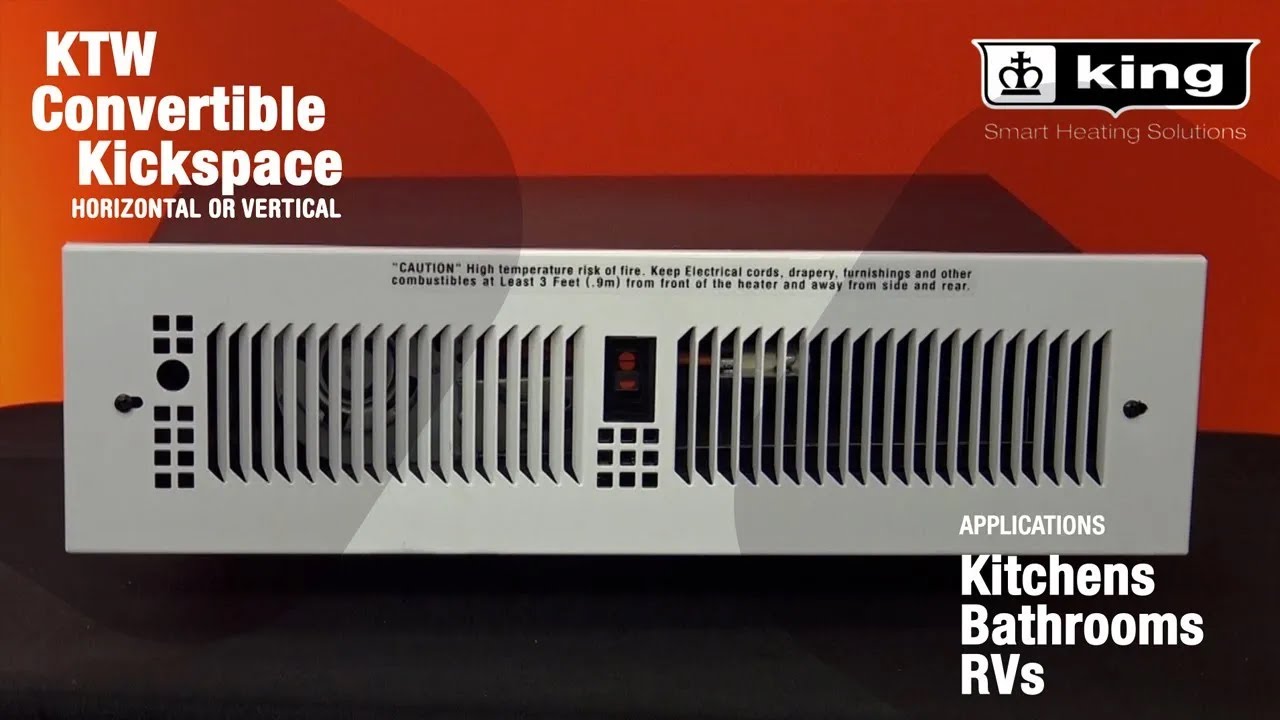

MODEL KTW

horizontal/vertical kickspace

The only convertible cabinet heater that can be installed either vertically or horizontally on the market. This narrow profile heater is only 3-5/8” tall and specifically designed to fit into kitchen or bathroom cabinets, providing warm comfortable
air for a cold bathrooms or kitchens saving valuable floor and wall space. For application other than kickspace, use the KTW-TG Grill.

  • Installs Vertically or Horizontally
  • Multiple Wattage Options, to Tailor to a Room’s Specific Heating Requirements
  • Includes Hi/Lo selector switch
  • NiChrome Open Coil Element For Quick Heat Transfer
  • Squirrel Cage Blower
  • Patented Smart Limit Protection®
  • Available in Black, Almond, White or Stainless Finishes
  • Proudly Made in the USA with U.S. & Global Materials
  • 2-Year Limited Warranty

Product Features

Felt But Not Seen

Often-overlooked, Kickpace heaters deliver the best of both worlds. Cost-effective heating in a compact package. Their modest size means that in a room with a challenging layout, one that would not accommodate a baseboard heater, a Kickspace heater may be able to fit in seamlessly, installed at floor level beneath cabinetry or even inside the wall.

Fits Where Others Can't. Only 3-5/16" Tall

With its narrow 3-5/16″ profile the KTW Kickspace heater easily fits out of the way, under cabinets providing warm air for cold bathrooms and kitchens.

Now That’s Smart!

Available Models

Complete Stock Models - Ordering Information

MODELUPCVOLTSWATTSAMPSSHIP WEIGHT lbsPurchase
KTW1215-HLS-RG-B20771120250-500-750-1000-1250-15002.1 - 12.511Buy Now
KTW1215-HLS-RG-W20888120250-500-750-1000-1250-15002.1 - 12.511Buy Now
KTW2415-HLS-RG-B20772240/208*250-500-750-1000-1250-15001.0 - 6.311Buy Now
KTW2415-HLS-RG-W10446240/208*250-500-750-1000-1250-15001.0 - 6.311Buy Now
* For other color grill options use "Order A'la Carte" chart below to build your own complete heater.

Order A'la Carte Step 1 - Ordering Information

ADD SUFFIXUPCDESCRIPTIONSHIP WEIGHT lbs
KTW1215-HLS-HRC14005KTW HTR 120V 1500W W/HI-LOW SW Heatbox Interior & Recessed Can Only10
KTW2415-HLS-HRC14006KTW HTR 240/208V 1500/1125 W/HI-LOW SW Heatbox Interior & Recessed Can Only10
* Note: **To build your own “Complete” select HRC model of proper voltage and KTW-RG grill model of proper color. This is the quickest option when the factory installed heaters options are not in stock.

Order A'la Carte Step 2 - Ordering Information

MODELUPCDESCRIPTIONSHIP WEIGHT lbsPurchase
KTW-RG-B20578Grill, Recessed - Black1Buy Now
KTW-RG-A20577Grill, Recessed - Almond1Buy Now
KTW-RG-SS20579Grill, Recessed - Stainless Steel1Buy Now
KTW-RG-W20580Grill, Recessed - White1Buy Now
KTW-TG-A20581Grill, SurfaceTrim - Almond1Buy Now
KTW-TG-B20582Grill, SurfaceTrim - Black1Buy Now
KTW-TG-SS20583Grill, SurfaceTrim - Stainless Steel1Buy Now
KTW-TG-W20584Grill, SurfaceTrim - White1Buy Now

Ordering Information - Accessories

MODELUPCDESCRIPTIONSHIP WEIGHT lbsPurchase
TKIT-1BW20654Built-in Single Pole Single Throw Thermostat Kit, Bright White0.5Buy Now
TKIT-2BW20655Built-in Double Pole Single Throw Thermostat Kit, Bright White0.5Buy Now
TKIT-1A11058Built-in Single Pole Single Throw Thermostat Kit, Almond0.5Buy Now
TKIT-2A11059Built-in Double Pole Single Throw Thermostat Kit, Almond0.5Buy Now
TKIT-1-TP11056Built-in Tamper Proof Single Pole Single Throw Thermostat Kit0.4Buy Now
TKIT-2-TP11057Built-in Tamper Proof Double Pole Single Throw Thermostat Kit0.4Buy Now
TKIT-1B17346Wall Heater Accessory SP Thermostat Kit Black0.5Buy Now
TKIT-2B17347Wall Heater Accessory DP Thermostat Kit Black0.5Buy Now
DS1513824Disconnect Switch, Field Installed Kit (10A/ 240V / 15A/120V)0.5Buy Now

Engineering Specs

Contractor shall supply and install, KTW Series limited space forced-air electric heaters, manufactured by King Electrical Mfg. Company. Heaters shall be of the wattage and Voltage as indicated on the plans.

Ratings: Heaters shall be available in wattages of 250 to 1,500 at 120 volts or dual rated from 208 volts to 240 volts.

Blower and Motor: A tangential cylindrical blower, delivering 70 CFM, shall be driven by a shaded pole, permanently lubricated, C-frame type motor with impedance protection and sealed bearings. Motors shall be the same voltage as the heater.

Elements: Element assemblies shall have a 3-wattage element construction of coiled nickel chromium, alloy corrosion resistant wire strung with a minimum of two rows of muscovite insulator. Element assemblies shall have factory provided connection to allow field modification of wattage at time of installation.

Thermal Overload: Heaters shall be equipped with King’s patented thermal overload Smart Limit Protection®, which disconnects elements and motor in the event normal operating temperatures are exceeded. If thermal overload trips due to abnormal operating temperatures, thermal overload shall remain open until manually reset by turning the heater off for fifteen minutes. Automatic reset of thermal overloads, which allow the element to continue to cycle under abnormal conditions, will not be accepted.

Hi/Lo selector switch: Wattage can be adjusted from 250-1250 watts in the low position and 750-1500 watts in the hi position.

Wall Can: The wall can shall be 20-gauge steel and shall contain two 1/2” knockouts for power leads. The wall can shall be supplied with a factory installed grounding wire.

Grill: The grill shall be louvered, one piece design. The grill shall be epoxy powder coated in the color specified on the plans or stainless steel.

Approval: cULus (E41422)
