PCKF

Industrial Portable Outdoor Rated Unit Heater
kW Range: 10 to 25 kW
Voltage: 208 / 240 / 480V
Phase: 1Ø / 3Ø
Mounting: Portable Floor Placement
Control: Remote Thermostat with 100 ft Cord
Warranty: 2 Year Limited

Submittal Instructions

Overview

Outdoor rated industrial portable unit heater designed to provide clean dry electric heat from outside the work area.

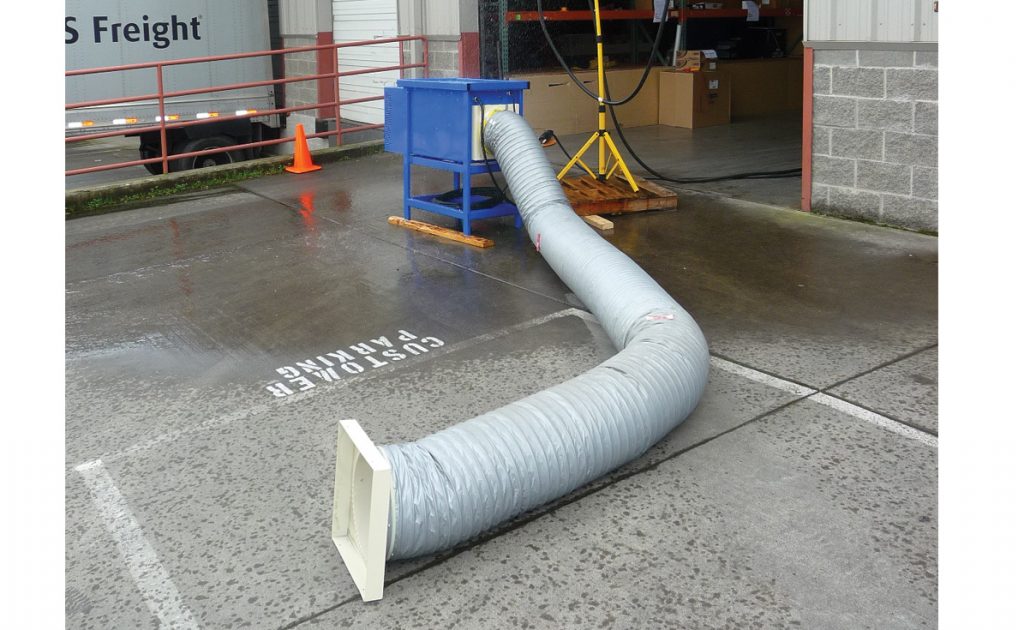

The PCKF industrial portable heater is outdoor rated and designed for tough jobsites, industrial facilities, airport tarmac applications, and dry out work. The heater can be placed outside in wet conditions and used to feed heated air into buildings, aircraft, containers, ships, tents, or other work areas without occupying interior space. A remote thermostat with 100 ft cord, 24V heat or fan only control, 12 inch duct transition, large capacity dual inlet blower, and rugged industrial frame support dependable temporary large capacity heating where clean electric heat is preferred.

Ideal Spaces

Airport tarmacs
Construction sites
Dry out applications
Industrial facilities
Tented enclosures
Aircraft, ship, and container heating

Performance

Meets FAA regulations for outdoor use
UL approved for outdoor use
Large capacity dual inlet blower
Remote thermostat with 100 ft cord
24V control for heat or fan only

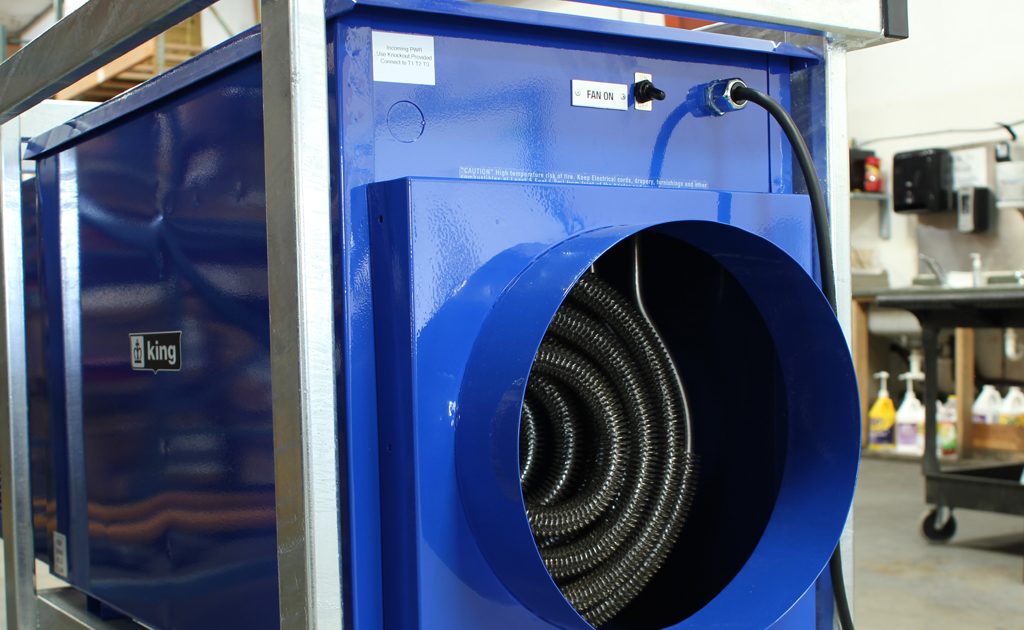

12 inch duct transition
N.E.M.A. 12 gasket construction

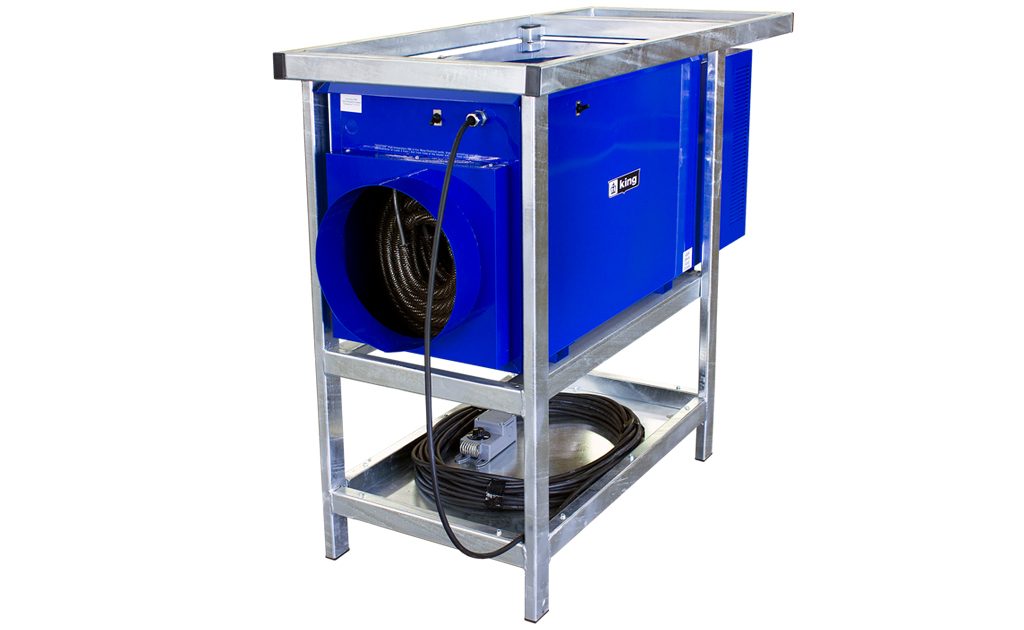

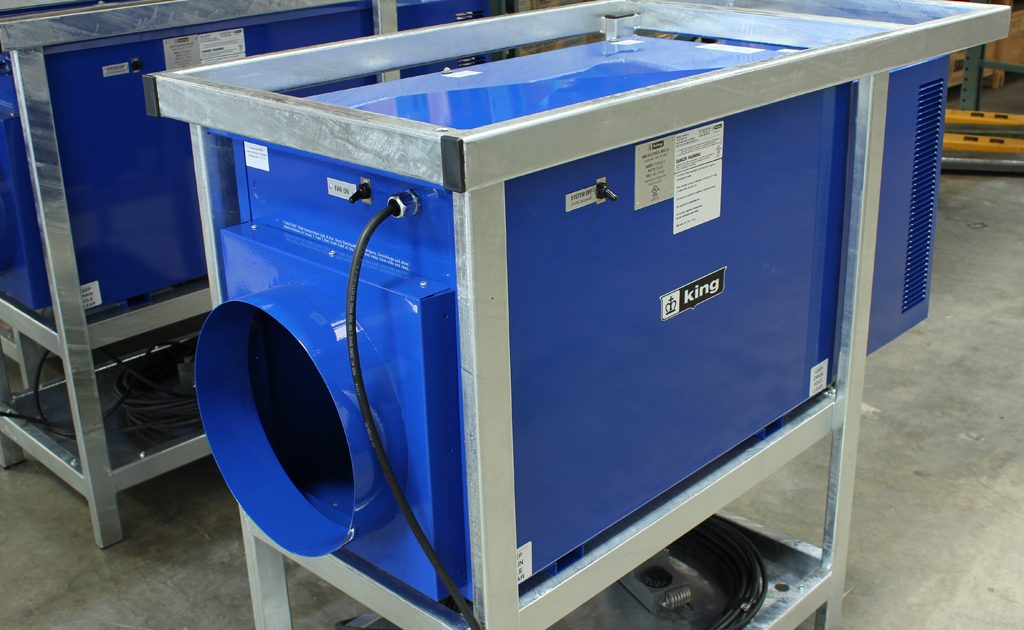

Industrial steel frame with 18 inch ground clearance
Intake rain baffle and electrical compartment rain cover
Made in USA with U.S. and global materials

Models

Ordering Information - Single Phase

MODEL	UPC	VOLTS	kilo watts	BTUH	PHASE	AMPS	MOTOR HP	CFM	SOOW CORD GAUGE	WEIGHT LBS	Purchase
PCKF2010-1	33114	208	10	34.1	1	48.1	1/4	1000	6/3	157	Buy Now Close
PCKF2015-1	33115	208	15	51.2	1	72.1	1/3	1000	2/3	157	Buy Now Close
PCKF2410-1	33116	240/208*	10/7.5	34.1	1	41.7/36.1	1/4	1000	6/3	157	Buy Now Close
PCKF2415-1	33117	240/208*	15/11.25	51.2	1	62.5/54.1	1/3	1000	4/3	157	Buy Now Close

* Dual rated heaters will draw 13% less amps and 25% less wattage when operated at 208V.

Ordering Information - Three Phase

MODEL	UPC	VOLTS	kilo watts	BTUH	PHASE	AMPS	MOTOR HP	CFM	SOOW CORD GAUGE	WEIGHT LBS	Purchase
PCKF2010-3	33118	208	10	34.1	3	27.7	1/4	1000	8/4	157	Buy Now Close
PCKF2015-3	33119	208	15	51.2	3	41.6	1/3	1000	6/4	157	Buy Now Close
PCKF2020-3	33120	208	20	68.3	3	55.5	1/2	1250	4/4	157	Buy Now Close
PCKF2025-3	33121	208	25	85.3	3	69.4	1/2	1250	2/4	157	Buy Now Close
PCKF2410-3	33123	240/208*	10/7.5	34.1	3	24.1/20.8	1/4	1000	10/4	157	Buy Now Close
PCKF2415-3	33124	240/208*	15/11.25	51.2	3	36.1/31.2	1/3	1000	6/4	157	Buy Now Close
PCKF2420-3	33125	240/208*	20/15	68.3	3	48.1/41.6	1/2	1250	4/4	157	Buy Now Close
PCKF2425-3	33126	240/208*	25/18.8	85.3	3	60.1/52.2	1/2	1250	2/4	157	Buy Now Close
PCKF4810-3	33128	480	10	34.1	3	12	1/4	1000	14/4	157	Buy Now Close
PCKF4815-3	33129	480	15	51.2	3	18.1	1/3	1000	12/4	157	Buy Now Close
PCKF4820-3	33130	480	20	68.3	3	24	1/2	1250	10/4	157	Buy Now Close
PCKF4825-3	33131	480	25	85.3	3	30.1	1/2	1250	8/4	157	Buy Now Close

* Dual rated heaters will draw 13% less amps and 25% less wattage when operated at 208V.

Field Installed Accessory

MODEL	UPC	DESCRIPTION
DT-TENT-TRANSITION-12	55479	12" Duct Transition
PCKF-DO-WC-36	33546	36" Dual outlet w/cap

Specifications

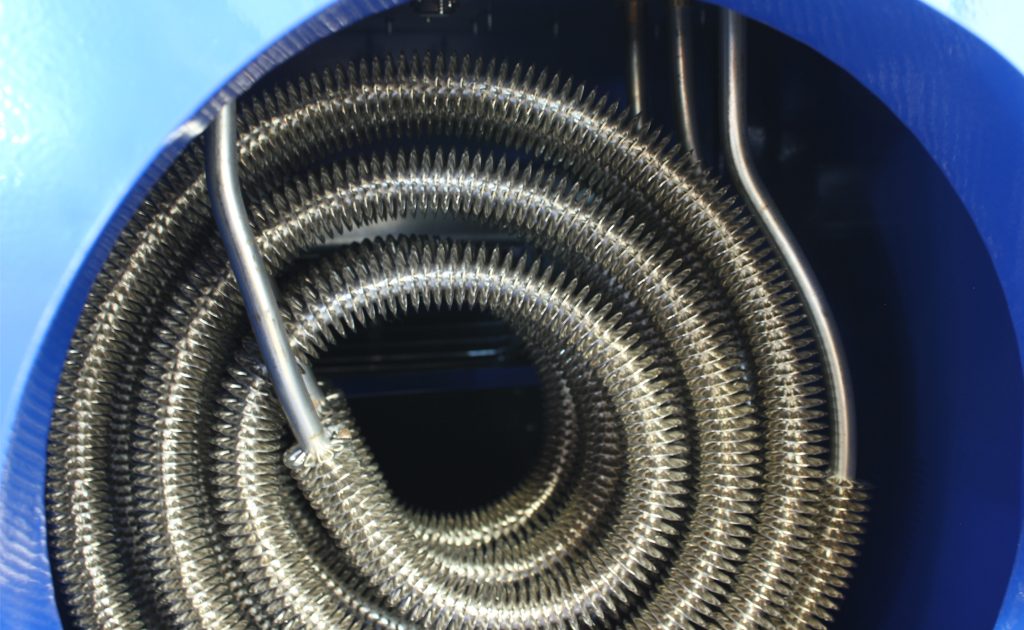

Furnish and install King Electric PCKF industrial portable outdoor rated unit heater. Unit shall include outdoor rated construction, large capacity dual inlet blower, remote thermostat with 100 ft cord, 24V heat or fan only control, high mass steel fin heat exchanger, N.E.M.A. 12 gasket construction, 12 inch duct transition, carrying handles, cord storage shelf, industrial steel frame meeting FAA 18 inch ground clearance requirements, and high tensile 18 gauge steel enclosure. Heater shall be UL approved for outdoor use and manufactured in the USA with U.S. and global materials.

Electrical

kW Range: 10 to 25 kW
Voltage: 208 / 240 / 480V
Phase: 1Ø / 3Ø
Control Voltage: 24V
Cord: SOOW Cord, Plug Not Included

Performance

Application: Outdoor Rated Industrial Portable Heating and Dry Out Applications
Operation: High Airflow Fan Forced Heating
Control Strategy: Remote Thermostat with 100 ft Cord
Airflow: 1000 to 1250 CFM by Model

Mechanical

Construction: High Tensile 18 Gauge Steel Enclosure
Frame: Industrial Steel Frame with 18 Inch Ground Clearance
Blower: Large Capacity Dual Inlet Blower
Ducting: 12 Inch Duct Transition
Enclosure: N.E.M.A. 12 Gasket Construction
Protection: Intake Rain Baffle and Electrical Compartment Rain Cover

Compliance

Certification: UL Approved for Outdoor Use
Regulatory: Meets FAA Outdoor Use Requirements
Warranty: 2 Year Limited
Country of Origin: Made in USA with U.S. and global materials
