SR Series Self-Regulating Pipe Trace Freeze Protection Heating Cable is designed for a variety of pipe freeze protection applications. The cable is constructed so that it will not burn out or overheat when overlapped, and can be used on metal and plastic pipes. The cable is available in 100 and 250 foot coils and also 500 and 1,000 foot reels.
- Stops Pipe and Valve Freeze Down to -40°F
- Cable Will Not Burn Out Or Overheat When Overlapped
- Suitable For Use On Metal and Plastic Pipes
- Available in 3W, 5W, 8W or 10W / Linear Foot
- Wattage Rating Is Determined @ 40°F
- 16 Gauge Heating Cable Bus Wire
- Flouropolymer Insulation and Rugged PVC Jacket
- cULus Certified for USA and Canada
- Imported to King Specifications
- 2-year limited warranty
Experience A Worry-Free Winter
Self-regulating heating cable, often called pipe trace cable, automatically adjusts heat output based on surface temperature. Ideal for freeze protection and low temperature process maintenance such as water pipe heating. Stops Pipe and Valve Freeze Down to -40°F.
Now That’s Smart!

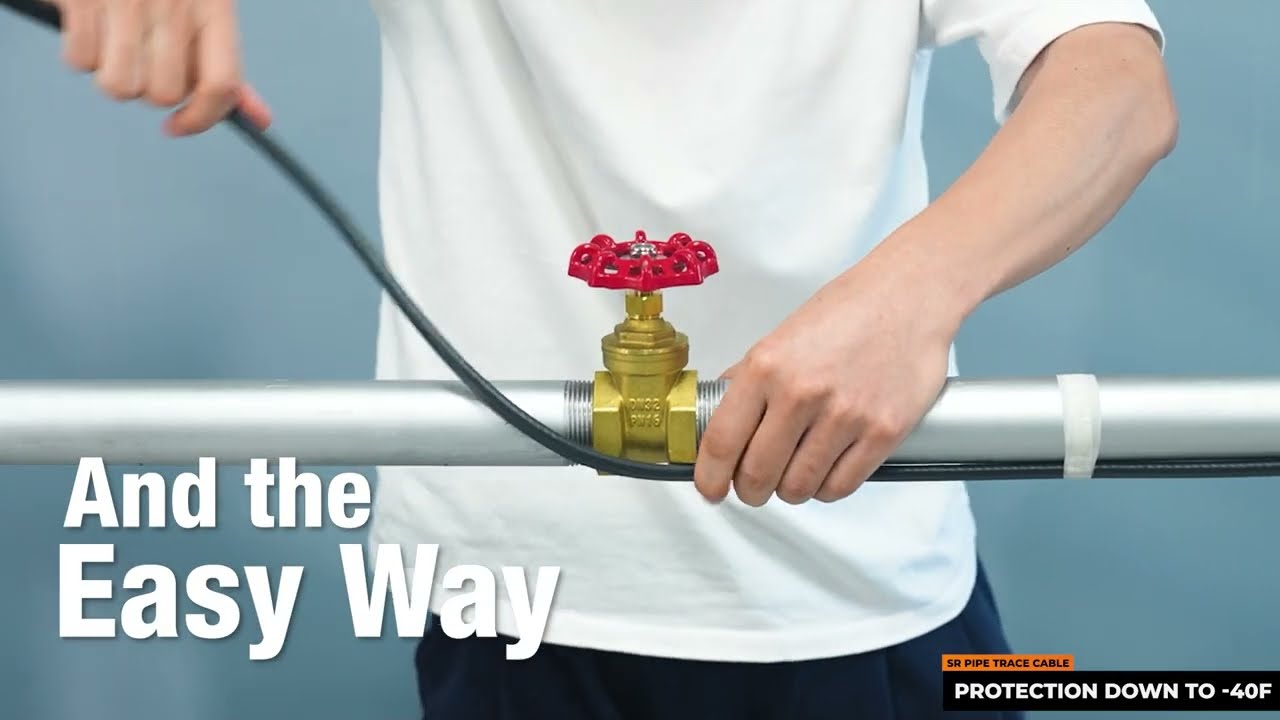

Self-Regulating Design For Simple Installation and Operation
The cable is constructed so that it will not burn out or overheat when overlapped, and can be used on metal and plastic pipes. Self-Regulating design offering 6 Watts/Linear Foot @ 40°F.
Available Models
Ordering Information
| 100 FT. LENGTH MODEL | UPC | VOLTS | LENGTH | PIPE RATING** WATTS/FT. | DEICING RATING*** WATTS/FT. | Purchase |
|---|---|---|---|---|---|---|
| SR123-100 | 40513 | 120 | 100 FT. | 3 | 5 | Buy Now |
| SR125-100 | 40514 | 120 | 100 FT. | 5 | 8 | |
| SR128-100 | 40515 | 120 | 100 FT. | 8 | 12.1 | Buy Now |
| SR1210-100 | 40516 | 120 | 100 FT. | 10 | 14.8 | Buy Now |
| SR123-250 | 40414 | 120 | 250 FT. | 3 | 5 | Buy Now |
| SR125-250 | 40418 | 120 | 250 FT. | 5 | 8 | Buy Now |
| SR128-250 | 40422 | 120 | 250 FT. | 8 | 12.1 | Buy Now |
| SR1210-250 | 40426 | 120 | 250 FT. | 10 | 14.8 | Buy Now |
| SR123-500 | 48735 | 120 | 500 FT. | 3 | 5 | Buy Now |
| SR125-500 | 48736 | 120 | 500 FT. | 5 | 8 | Buy Now |
| SR128-500 | 48737 | 120 | 500 FT. | 8 | 12.1 | Buy Now |
| SR1210-500 | 48742 | 120 | 500 FT. | 10 | 14.8 | Buy Now |
| SR123-1000 | 40416 | 120 | 1000 FT. | 3 | 5 | Buy Now |
| SR125-1000 | 40420 | 120 | 1000 FT. | 5 | 8 | Buy Now |
| SR128-1000 | 40424 | 120 | 1000 FT. | 8 | 12.1 | Buy Now |
| SR1210-1000 | 40428 | 120 | 1000 FT. | 10 | 14.8 | Buy Now |
Ordering Information
| 100 FT. LENGTH MODEL | UPC | VOLTS | LENGTH | PIPE RATING** WATTS/FT. | DEICING RATING*** WATTS/FT. | Purchase |
|---|---|---|---|---|---|---|
| SR243-100 | 40517 | 240* | 100 FT. | 3 | 5 | Buy Now |
| SR245-100 | 40518 | 240* | 100 FT. | 5 | 8 | |
| SR248-100 | 40519 | 240* | 100 FT. | 8 | 12.1 | |
| SR2410-100 | 40520 | 240* | 100 FT. | 10 | 14.8 | Buy Now |
| SR243-250 | 40430 | 240* | 250 FT. | 3 | 5 | Buy Now |
| SR245-250 | 40434 | 240* | 250 FT. | 5 | 8 | |
| SR248-250 | 40438 | 240* | 250 FT. | 8 | 12.1 | Buy Now |
| SR2410-250 | 40442 | 240* | 250 FT. | 10 | 14.8 | Buy Now |
| SR243-500 | 48739 | 240* | 500 FT. | 3 | 5 | Buy Now |
| SR245-500 | 48740 | 240* | 500 FT. | 5 | 8 | Buy Now |
| SR248-500 | 48741 | 240* | 500 FT. | 8 | 12.1 | Buy Now |
| SR2410-500 | 48746 | 240* | 500 FT. | 10 | 14.8 | Buy Now |
| SR243-1000 | 40432 | 240* | 1000 FT. | 3 | 5 | Buy Now |
| SR245-1000 | 40436 | 240* | 1000 FT. | 5 | 8 | Buy Now |
| SR248-1000 | 40440 | 240* | 1000 FT. | 8 | 12.1 | Buy Now |
| SR2410-1000 | 40444 | 240* | 1000 FT. | 10 | 14.8 | Buy Now |
Ordering Information - Pipe Trace Controls
| MODEL | UPC | DESCRIPTION | WEIGHT | Purchase |
|---|---|---|---|---|
| IFC12 | 40490 | Plug-in fixed thermostat, 120V, 15 amps, ON at 35F OFF at 45F (12/case) | 1.5 lbs. | Buy Now |
Ordering Information - SR Cable Accessories
| MODEL | UPC | DESCRIPTION | WEIGHT | Purchase |
|---|---|---|---|---|
| SRK00 | 40462 | Hard wired power connection kit, includes end seal | 0.3 lbs. | Buy Now |
| SRK02 | 40461 | Connection kit, includes end seal | 0.3 lbs. | Buy Now |
| SRK03 | 40464 | Pipe trace tape (66 ft.) and 10 labels per pack | 0.3 lbs. | Buy Now |
| SRK04 | 61713 | 2.5" x 50 yards 2 Mil foil tape | 0.3 lbs. | Buy Now |
| SRK08 | 40466 | Plug in 120V connection kit with GFEP device, includes end seal | 1.0 lbs. | Buy Now |
| SRK10 | 40468 | Weatherproof splice/tee kit, includes end seal | 0.2 lbs. | Buy Now |
| SRK12 | 40470 | End seal kit (2 per package) | 0.1 lbs. | Buy Now |
| SRK13 | 40472 | Roof Clip (25 per package) | 0.2 lbs. | Buy Now |
| SRK14 | 40473 | 3M VHB double sided acrylic foam pads (25 per package) | 0.1 lbs. | |
| SRK15 | 40476 | Downspout hanger and cable ties | 0.3 lbs. | Buy Now |
| SRK17 | 40477 | 11 & 13mm Gel end seal | 0.1 lbs. | Buy Now |
| SRK18 | 40512 | LIGHTED END SEAL, 85-277V | 1.0 lbs. | Buy Now |
| CWRK-35 | 48732 | 19 Roof Clips & 16 Spacers | 0.09 lbs. |
Ordering Information - CT Accessories
| CT ACCESSORIES FOR HAZARDOUS APPLICATIONS | |
|---|---|
| CT-9001 | CT octagon & square power connection box |
| CT-9002 | CT square box |
| CT-9003 | CT splice connection |
| CT-9004 | CT tee connection |
| CT-9005 | CT end seal |
Ordering Information - Pyro Pipe Trace Controls
| MODEL | UPC | Item | Description |
|---|---|---|---|
| PYROBOX3 TRACE | 42388 | Power Box 3 Trace | 4 Zone Controller, 4-30A/2P Contactors, 1-Phase, 300V Max |
| PYROBOX3C TRACE | 42387 | Power Box 3C Trace | 2 Zone Controller, 2-50A/3P Contactors, 3-Phase, 600V Max +1 Zone Aux Controller, 1-30A/2P Contactor, 1-Phase, 300V Max |
| PYROBOX5 TRACE | 42386 | Power Box 5 Trace | 4 Zone Controller, 4-50A/3P Contactors, 3-Phase, 600V Max +1 Zone Aux Controller, 1-30A/2P Contactor, 1-Phase, 300V Max |
| PYROULS | 42325 | Upper Limit Sensor | Upper Limit Temperature Sensor |
| PYROCON12 TRACE | 42380 | Main Controller | Controller and User Interface panel |
Ordering Information - Pyro FPC System
| MODEL | UPC | Item | Description |
|---|---|---|---|
| FPC-02-120 | 19112 | Pyro FPC Freeze Protection Controller | Freeze Protection Controller 120V, 30A, w/GFEP |
| FPC-02-240 | 19113 | Pyro FPC Freeze Protection Controller | Freeze Protection Controller 240V, 30A, w/GFEP |
| FPC-02-120-MDB | 19114 | Pyro FPC Freeze Protection Controller | Freeze Protection Controller 120V, 30A, w/GFEP & MODBUS |
| FPC-02-240-MDB | 19115 | Pyro FPC Freeze Protection Controller | Freeze Protection Controller 240V, 30A, w/GFEP & MODBUS |
