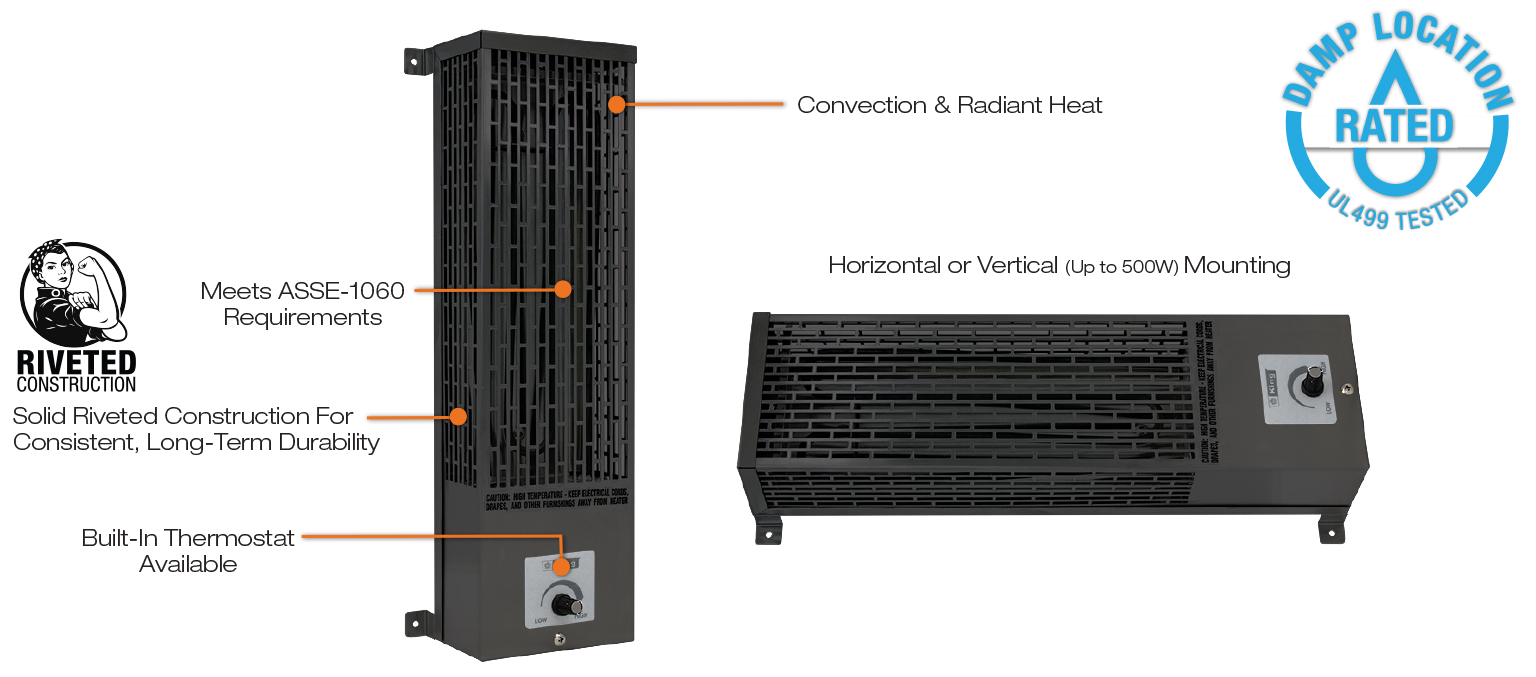

The U Series heater is designed to reduce moisture from mechanical equipment and keep pumps, valves, and farm machinery from freezing. Having the radiant heat absorbed by the metal equipment makes this heater more effective than convection heaters. The built-in thermostat turns off when the ambient temperature is safely above freezing. An optional 304 Stainless Steel (Add-SS to the model number) version helps prevent corrosion associated with high moisture locations like pump houses. A steel guard helps keep foreign objects away from the element. This heater is simple and reliable with no moving parts to wear out or maintain, making it an inexpensive choice for freeze protection. Specifically designed to operate in both horizontal and vertical (up to 500W max) positions.
Keeps Valves From Freezing
Designed to reduce moisture from mechanical equipment and keep pumps, valves, and farm machinery from freezing. The built-in thermostat turns off when the ambient temperature is safely above freezing.
Now That’s Smart!
Versatile and Durable.
Simple and reliable with no moving parts to wear out or maintain, making it an inexpensive choice for freeze protection. Compact and flexible enough to mount either horizontally or vertically (up to 500W) to meet specific application requirements.
Now That’s Smart!
Contractor shall supply and install U Pump House series radiant heaters manufactured by King Electrical Mfg. Company. Heaters shall be of the wattage and voltage as indicated on the plans.
Element: 304 or 840 Stainless Steel.
Thermostat: Built-in snap action with a range of 40° to 90°F.
Safety Limit: Capillary tube running the full length of the element provides over-temperature protection then automatically resets when temperature drops.
Enclosure: Steel case with an expanded steel metal element shield (optional 20 gauge 304 Stainless Steel on -SS model).
Safety Standard: cETLus
