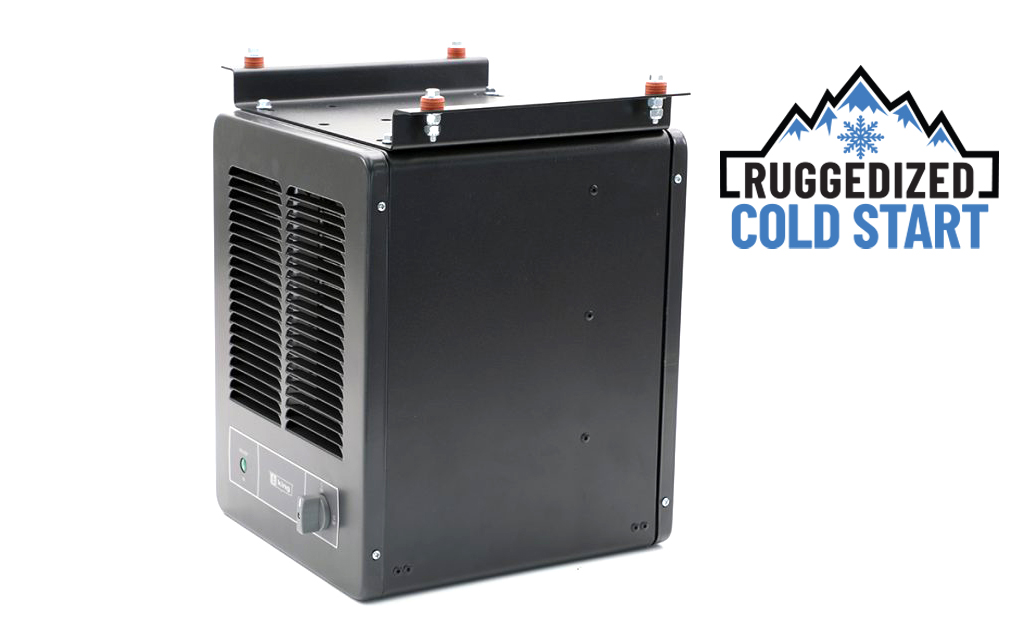

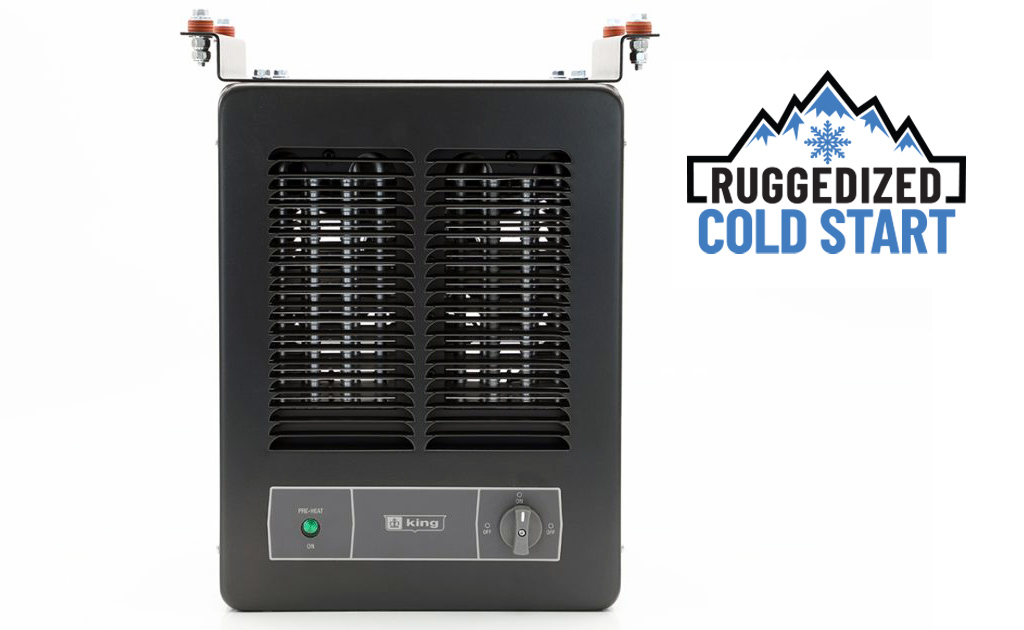

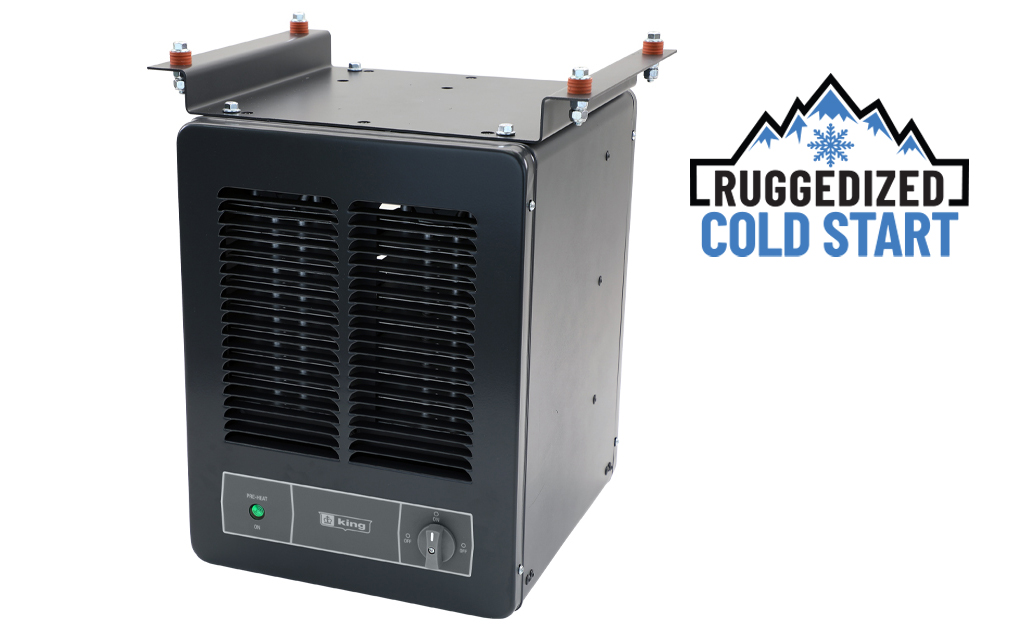

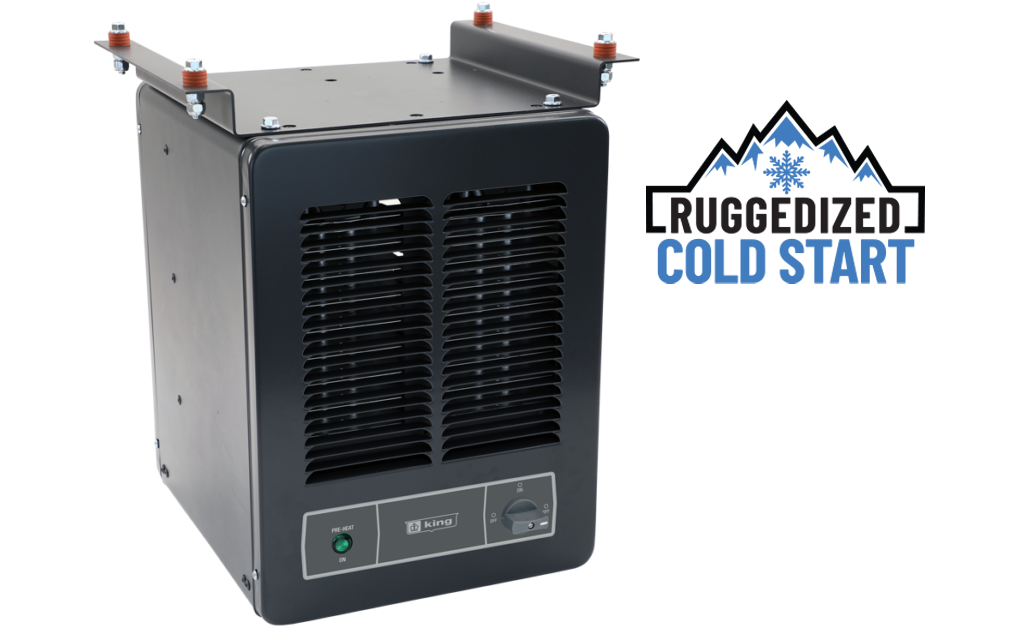

Compact Ruggedized Unit Heater Designed To Start In Sub-Freezing Temperatures Down To -40F.
The KBP-RCS is a ruggedized compact unit heater, engineered for extreme cold environments and designed to operate in sub-freezing temperatures down to -40°F. Electric Motors are difficult to start in frigid temperatures, so the King cold start heater is designed with a 24VAC heater that warms the motor before the main heating circuit and fan turns on. This 24VAC preheat circuit engages when the ambient temperature is below 32F degrees and warms up the fan motor so that it starts and runs properly.

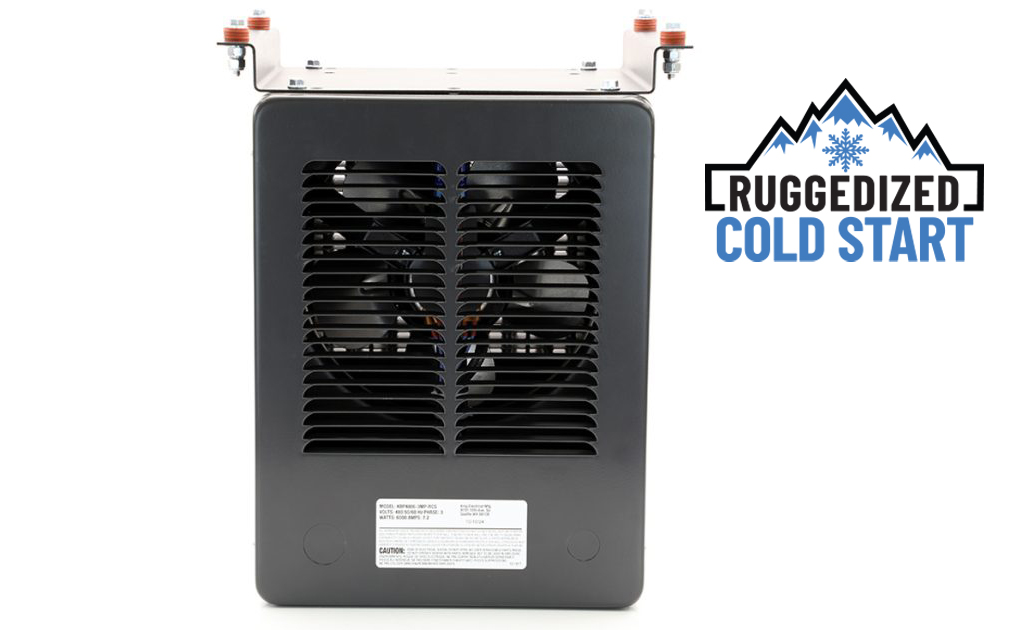

KBP-RCS also includes heavy-duty, vibration and shock-resistant construction, tested to MIL-STD-810 standards, to ensure reliable and consistent heat output in extreme conditions. The low-profile mounting bracket includes vibration isolation hardware, making it suitable for various industrial and commercial applications, ensuring warmth and safety in frigid temperatures. The flow-through design efficiently moves air by pulling air from the back of the heater and discharges it out the front, easily heating a large space.
Features a provision for adding an optional 24V thermostat for remote temperature control, making it compatible with 24V wifi thermostats, like the Nest. Also includes an integral fan delay to dissipate heat from the elements during the cool down period, maximizing the heat exchange in the room. King’s exclusive dual Pic-A-Watt steel fin elements allow customers to select from a range of wattage options, tailoring the heater to an area’s specific heating requirements.
- Designed To Operate Down To -40°F
- 24VAC Motor Preheat Circuit With Indicator Light, That Operates When Ambient Is Below 32°F
- Vibration Tested: Tested to MIL-STD-810, 514 Vibration Standard
- Shock Tested: Tested to MIL-STD-810, 516 Shock Standard
- 24-Volt Control Voltage
- Includes Provision For 24V Remote Thermostat

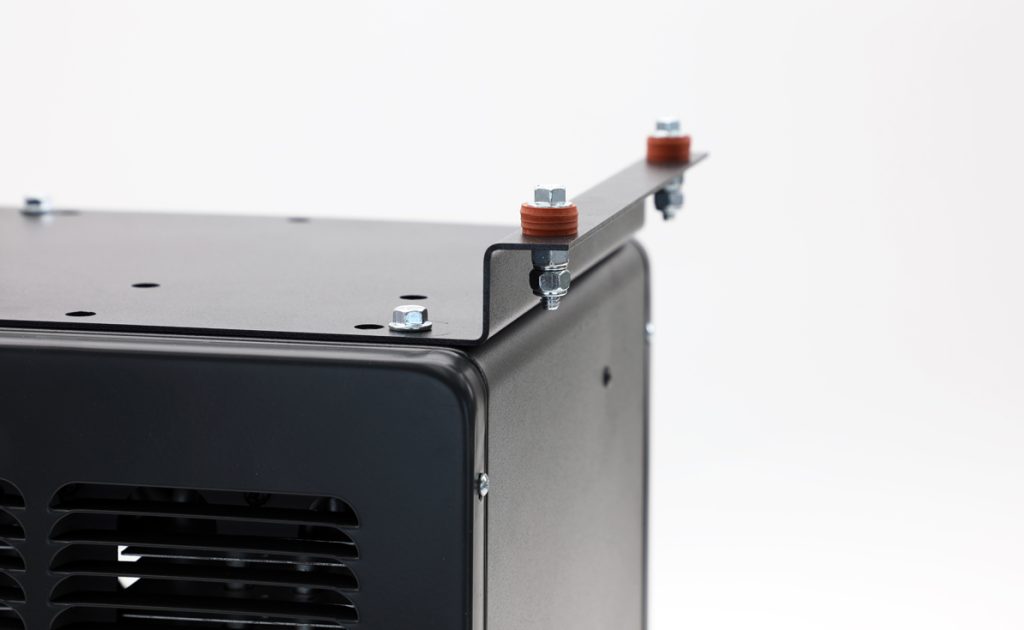

- Low-profile Mounting Bracket with Vibration Isolation Hardware
- Original Selectable Wattage Pic-A-Watt® Elements
- Multiple Wattage Options, to Tailor to a Room’s Specific Heating Requirements
- Patented Smart Limit Protection®
- Selector Switch: Heat/Off-Disconnect
- Long Life Cast Iron Motor
- Fan Delay To Dissipate Heat
- Proudly Made in the USA with U.S. & Global Materials
- 2-Year Limited Warranty

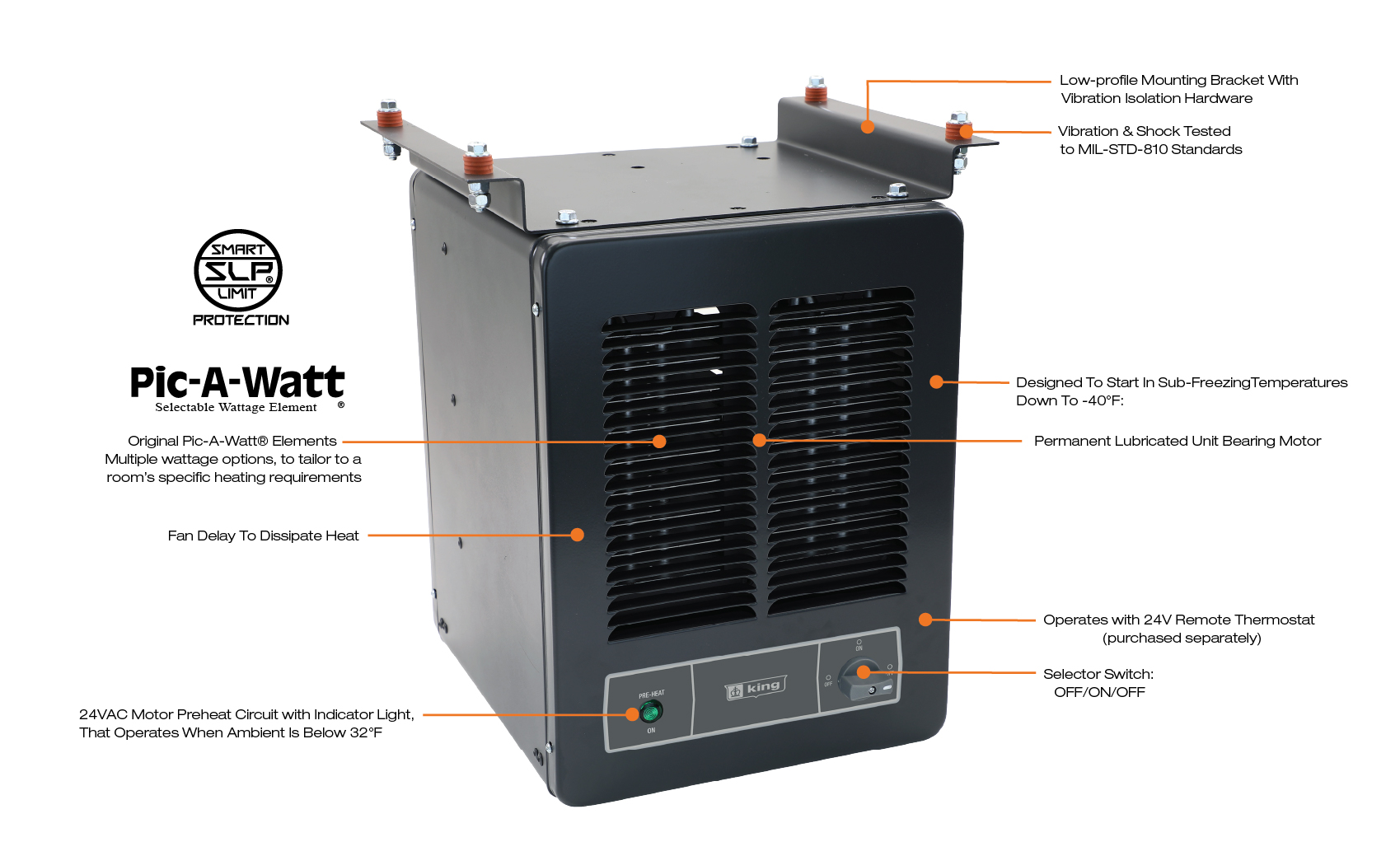

Product Features

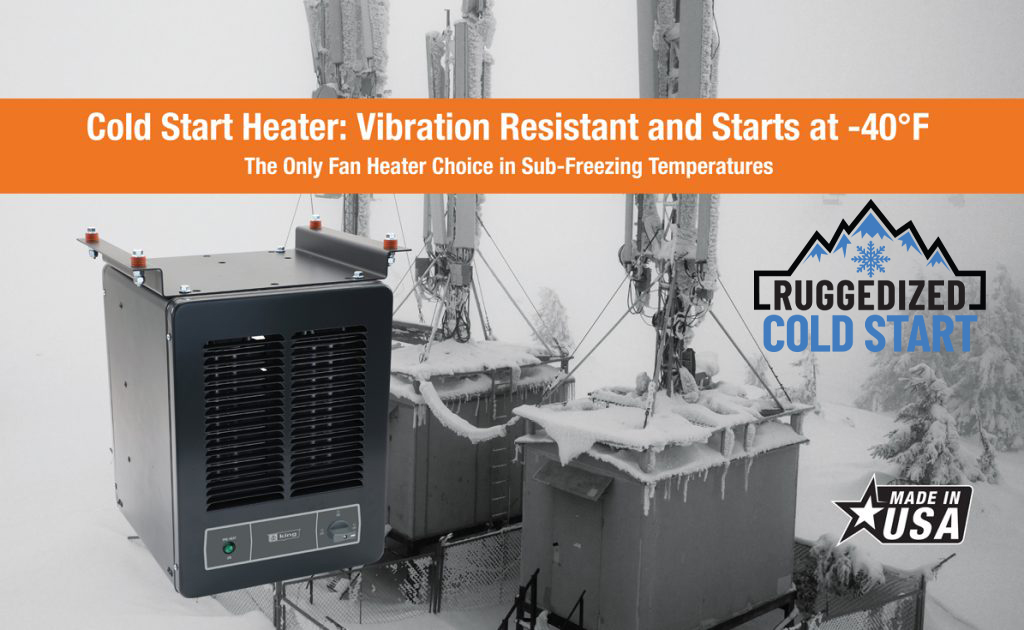

Guaranteed Heat Even In Harsh Environments
Designed to reliably operate in extreme cold environments down to -40°F, featuring heavy-duty construction, efficient air flow, and customizable wattage options for various industrial and commercial applications.
Now That’s Smart!
Vibration & Shock-Resistant Construction Tested to MIL-STD-810 Sstandards
Features heavy-duty, vibration and shock-resistant construction with a low-profile mounting bracket includeing vibration isolation hardware, tested to MIL-STD-810 standards, to ensure reliable and consistent heat output in extreme conditions.
Ssuitable for various industrial and commercial applications, ensuring warmth and safety in frigid temperatures.
Preheat Circuit With Indicator Light To Guarantee Motor Startup Down to -40F
Electric Motors are difficult to start in frigid temperatures, so the KBP-RCS is designed with a 24VAC heater that warms the motor before the main heating circuit and fan turns on. This 24VAC preheat circuit engages when the ambient temperature is below 32F degrees and warms up the fan motor so that it starts and runs properly.
Available Models
Ordering Information - Single Phase
| MODEL | WATTS | BTUH | PHASE | VOLTS | AMPS | CFM | TEMP. RISE RANGE | AIR THROW | MAX. MOUNT HEIGHT | WT. (lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|
| KBP2006-RSC | 5700-4750-3800-2850-1900-950 | 19,454 - 3,242 | 1 | 208 | 27.4 - 4.6 | 385 | 12ft. | 8ft. | 24 | |
| KBP2406-RCS | 5700-4750-3800-2850-1900-950 | 19,454 - 3,242 | 1 | 240/208* | 23.8 - 4 | 385 | 12ft. | 8ft. | 24 |
Ordering Information - Multi Phase
| MODEL | WATTS | BTUH | PHASE | VOLTS | AMPS | CFM | TEMP. RISE RANGE | AIR THROW | MAX. MOUNT HEIGHT | WT. (lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|
| KBP2006-3MP-RCS | 5700-2850 | 19,454 - 9,727 | 1-3 | 208 | 15.8-7.9 | 385 | 12ft. | 8ft. | 25 | |
| KBP2406-3MP-RCS | 5700-2850 | 19,454 - 9,727 | 1-3 | 240/208* | 13.7-6.9 | 385 | 12ft. | 8ft. | 25 | |
| KBP4806-3MP-RCS | 6000 | 20,478 | 1-3 | 480*** | 7.2 | 385 | 12ft. | 8ft. | 26 |
Engineering Specs
Contractor shall supply and install KBP-RCS Series unit heaters manufactured by King Electrical Mfg. Company. Heaters shall be of the wattage and voltage as indicated on the plans.
Vibration & Shock-Resistant Construction: Tested to MIL-STD-810 standards, to ensure reliable and consistent heat output in extreme conditions. Includes low-profile mounting bracket with vibration isolation hardware. Tested to MIL-STD-810, 514 Vibration Standard. Tested to MIL-STD-810, 516 Shock Standard

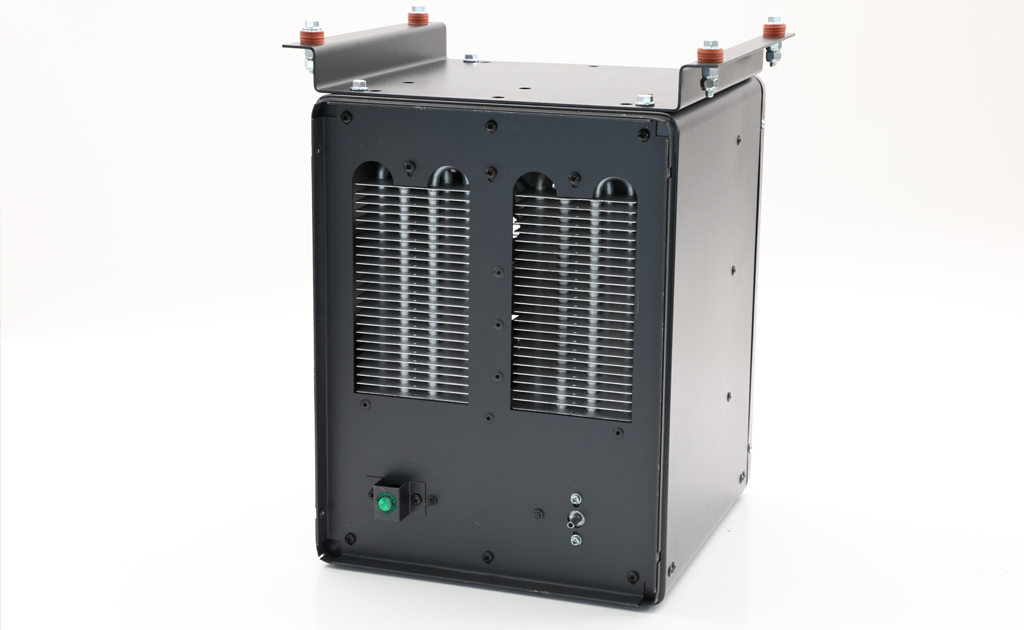

Pic-A-Watt Heating Element: Exclusive King multi-tap element allows field adjustment to several wattages at time of installation. Steel sheath elements of various resistance are copper brazed to steel plate fins producing a multi-wattage heating element.
Pre-Heat Circuit: Includes a 24VAC heater that warms the motor before the main heating circuit and fan turns on. This 24VAC preheat circuit engages when the ambient temperature is below 32F degrees and warms up the fan motor so that it starts and runs properly.
Control Voltage: 24VAC
Provision For 24V Remote Thermostat: Includes terminals to connect an optional 24V Thermostat. Compatible with NEST / any 24V WIFI Stat
Heat/Off-Disconnect Switch: 3-position switch provides heating and DP Disconnect.
Fan Delay Switch: The fan continues to operate after the thermostat shuts off in order to remove the residual heat left in the elements. Power must not be interrupted.
CFM: 385
Ceiling Mounting Bracket: Low-Profile Ceiling Mounting Bracket with vibration isolation hardware.
Unit Bearing Motor: Permanently lubricated, long life, unit bearing 4-Pole motor with 20 cc of oil. Enclosed rotor provides long-lasting, trouble-free operation. Thermally protected. 1300 RPM.
Electrically Held Smart Limit Protection: Heater shuts off when an over temperature condition exists and automatically resets when the normal operating temperature returns.
Standard Color: Onyx Gray
Tested: UL 2021
Approval: cULus
