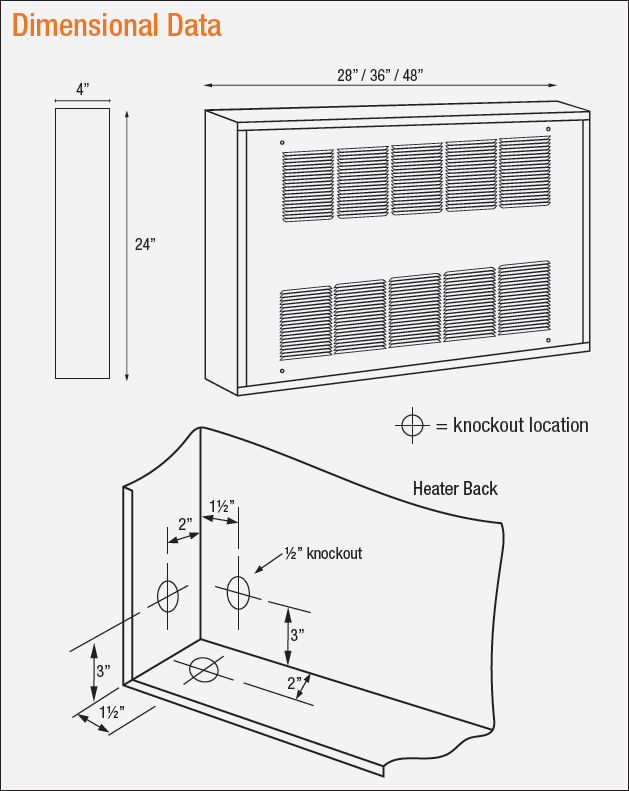

The heavy-duty KCC cabinet heater can be placed almost anywhere. Typical uses are hall or entryways where a deep cabinet heater would be too intrusive. The slim design is great for schools, office, air terminals, auditoriums, apartments, restaurants, churches, factory’s, theaters and other locations where a clean impact resistant 18 gauge construction and entry way or comfort heating is needed. The KCC uses the time tested ceramic core heating elements that King developed over 50 years ago and have a very long life. Available in a slim 4”surface mount or the recess in wall installation. A sub-base is available when installing close to the floor to fill the gap. Thermostats, Contactors and Disconnect switches are available as options. Textured powder coated finish in an almond color.
- Convection Heat
- Silent Running
- High Mass Ceramic Heating-Core with Aluminum Fins
- Heavy Duty 18 Gauge Cabinet
- Capillary Tube Safety Limit
- 1 or 3-Phase
- Available in (5) New Designer Finishes
- Proudly Made in the USA with U.S. & Global Materials
- 5-Year Limited Warranty
Product Features
Impact Resistant and Reliable
Built to withstand years of high-traffic, with time-tested ceramic core heating elements that King developed over 50 years ago and have a very long life.
Now That’s Smart!
Quiet Heat. When It Matters.
Designed for large commercial spaces, using natural convection in an architectural design which is perfect for areas requiring lots of heat without fan noise.
Now That’s Smart!
Freedom of Color
You know what it feels like when you walk into a well-designed building. Combine colors, materials, lighting, and now even designer heating fixtures to achieve the ambiance that fits your building. Choose from one of our dynamic designer colors, inspired by the architecture around us.
Pearl White – White Dove – Almondine – Satin Nickel – Oiled Bronze
Available Models
Ordering Information - Single Phase
| MODEL | VOLTS | WATTS | (1PH) AMPS | BTUH(000) | CONTROL VOLTAGE | LENGTH | SHIP WEIGHT lbs |
|---|---|---|---|---|---|---|---|
| KCC2-2010-1 | 208 | 1000 | 4.8 | 3.4 | 208V | 24" | 30 |
| KCC2-2020-1 | 208 | 2000 | 9.6 | 6.8 | 208V | 24" | 30 |
| KCC3-2030-1 | 208 | 3000 | 14.4 | 10.2 | 208V | 36" | 40 |
| KCC4-2040-1 | 208 | 4000 | 19.2 | 13.6 | 208V | 48" | 50 |
| KCC4-2050-1 | 208 | 5000 | 24 | 17 | 208V | 48" | 50 |
| KCC2-2410-1 | 240 | 1000 | 4.2 | 3.4 | 240V | 24" | 30 |
| KCC2-2420-1 | 240 | 2000 | 8.3 | 6.8 | 240V | 24" | 30 |
| KCC3-2430-1 | 240 | 3000 | 12.5 | 10.2 | 240V | 36" | 40 |
| KCC4-2440-1 | 240 | 4000 | 16.7 | 13.6 | 240V | 48" | 50 |
| KCC4-2450-1 | 240 | 5000 | 20.8 | 17 | 240V | 48" | 50 |
| KCC2-2710-1 | 277 | 1000 | 3.6 | 3.4 | 277V | 24" | 30 |
| KCC2-2720-1 | 277 | 2000 | 7.2 | 6.8 | 277V | 24" | 30 |
| KCC3-2730-1 | 277 | 3000 | 10.3 | 10.2 | 277V | 36" | 40 |
| KCC4-2740-1 | 277 | 4000 | 14.4 | 13.6 | 277V | 48" | 50 |
| KCC4-2750-1 | 277 | 5000 | 18 | 17 | 277V | 48" | 50 |
| KCC2-4810-1 | 480 | 1000 | 2.1 | 3.4 | 24V | 24" | 30 |
| KCC2-4820-1 | 480 | 2000 | 4.2 | 6.8 | 24V | 24" | 30 |
| KCC3-4830-1 | 480 | 3000 | 6.5 | 10.2 | 24V | 36" | 40 |
| KCC4-4840-1 | 480 | 4000 | 8.3 | 13.6 | 24V | 48" | 50 |
| KCC4-4850-1 | 480 | 5000 | 10.4 | 17 | 24V | 48" | 50 |
Ordering Information - Three Phase
| MODEL | VOLTS | WATTS | (3PH) AMPS | BTUH(000) | CONTROL VOLTAGE | LENGTH | SHIP WEIGHT lbs |
|---|---|---|---|---|---|---|---|
| KCC2-2010-3 | 208 | 1000 | 2.8 | 3.4 | 208V | 24" | 30 |
| KCC2-2020-3 | 208 | 2000 | 5.6 | 6.8 | 208V | 24" | 30 |
| KCC3-2030-3 | 208 | 3000 | 8.3 | 10.2 | 208V | 36" | 40 |
| KCC4-2040-3 | 208 | 4000 | 11.1 | 13.6 | 208V | 48" | 50 |
| KCC4-2050-3 | 208 | 5000 | 13.9 | 17 | 208V | 48" | 50 |
| KCC2-2410-3 | 240 | 1000 | 2.4 | 3.4 | 240V | 24" | 30 |
| KCC2-2420-3 | 240 | 2000 | 4.8 | 6.8 | 240V | 24" | 30 |
| KCC3-2430-3 | 240 | 3000 | 7.2 | 10.2 | 240V | 36" | 40 |
| KCC4-2440-3 | 240 | 4000 | 9.6 | 13.6 | 240V | 48" | 50 |
| KCC4-2450-3 | 240 | 5000 | 12 | 17 | 240V | 48" | 50 |
| KCC2-4810-3 | 480 | 1000 | 1.2 | 3.4 | 24V | 24" | 30 |
| KCC2-4820-3 | 480 | 2000 | 2.4 | 6.8 | 24V | 24" | 30 |
| KCC3-4830-3 | 480 | 3000 | 3.6 | 10.2 | 24V | 36" | 40 |
| KCC4-4840-3 | 480 | 4000 | 4.8 | 13.6 | 24V | 48" | 50 |
| KCC4-4850-3 | 480 | 5000 | 6 | 17 | 24V | 48" | 50 |
Ordering Information - Factory Installed Options
| ADD SUFFIX | DESCRIPTION |
|---|---|
| -R | Recessed Mount |
| -S | Surface Mount |
| -PW | Pearl White Color |
| -WD | White Dove Color |
| -AD | Almondine Color |
| -SN | Satin Nickel Color |
| -OB | Oiled Bronze Color |
Ordering Information - Field Installed Accessories
| MODEL | UPC | DESCRIPTION |
|---|---|---|
| KC-SB-24 | 20319 | KC ACCY SUB-FLOOR BASE 24" WIDE, 2" TALL, 3" DEEP |
| KC-SB-36 | 20316 | KC ACCY SUB-FLOOR BASE 36" WIDE, 2" TALL, 3" DEEP |
| KC-SB-48 | 20317 | KC ACCY SUB-FLOOR BASE 48" WIDE, 2" TALL, 3" DEEP |
Ordering Information - Factory Installed Control Options
| ADD SUFFIX | DESCRIPTION |
|---|---|
| -RT | Line Voltage Terminal Block |
| -CX | Power Contactor (1-Phase models Only)- Comes Standard on 3-Phase Models |
| -RT24 | 24 Volt Contactor & Transformer - Comes Standard on 480V Models |
| -DS1 | Double Pole Disconnect Switch (1-Phase) |
| -DS3 | Three Pole Disconnect Switch (3-Phase) |
| -T | 25 Amp Single Pole Thermostat w/Knob |
| -T2 | 25 Amp Double Pole Thermostat w/Knob |
| -TP | 25 Amp Tamperproof (slotted shaft), Single Pole |
Engineering Specs
Contractor shall supply and install KCC Series cabinet heaters manufactured by King Electrical Mfg. Company. Heaters shall be of the wattage and voltage as indicated on the plans.
Construction: Heaters shall be constructed in 18 gauge galvanized Steel with epoxy powder-coated manufacturer’s standard finish. A louvered front cover with intake and outlet grille will protect element area and provide ample air flow to dissipate heated air.
Element: The superior performance comes from the proven technology of the ceramic thermal storage heater core. A 7/8″ diameter aluminum tube is filled with a special high density ceramic that stores the thermal energy. The oversized fins (4.875 in2) are made from durable (0.015″ thick) high grade aluminum which produces better heat transfer than other elements. The benefit of the technology comes when the thermostat is turned off and the element continues to radiate heat. It also reduces temperature swings by heating and cooling more evenly. A fired refractory ceramic core with two large diameter Nickel Chromium coils attached with high temperature Nickel connectors and stranded Nickel wire, terminated in a junctionbox.
Controls: A built-in thermal cutout shall automatically shut off the heater in case of overheating. A built-in thermostat for temperature control will have a range from 40°- 95°F and be of the high accuracy capillary tube-type. Disconnect switches in junctionbox will be provided if necessary.
Approvals: cULus
