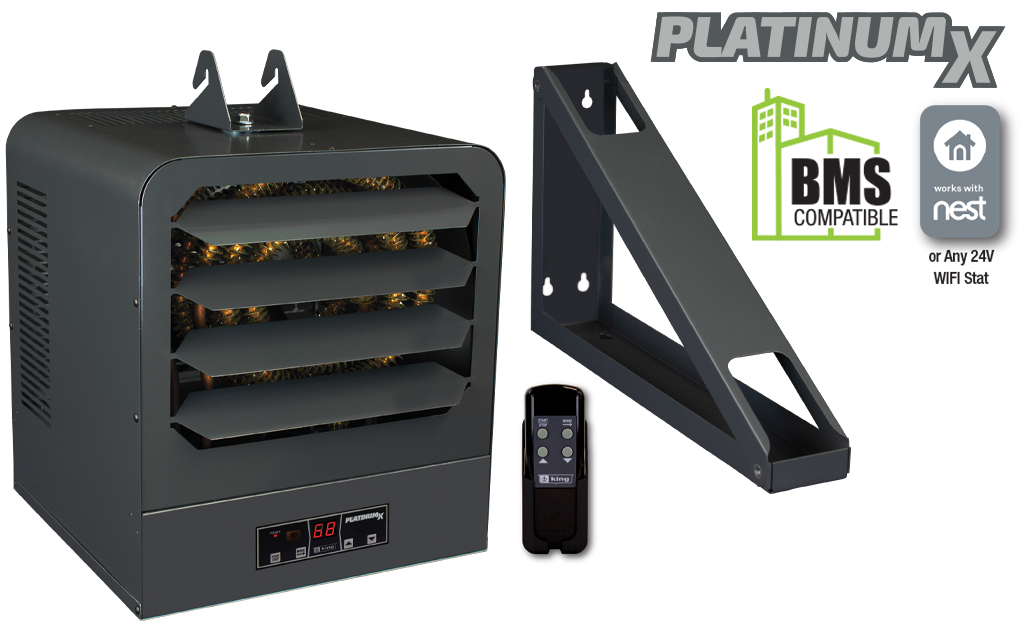

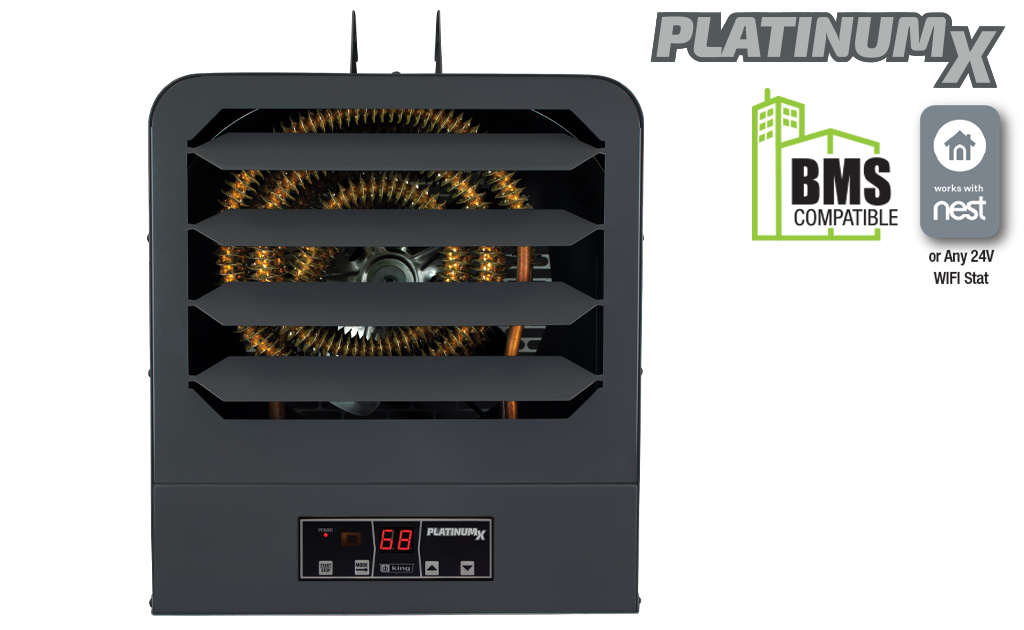

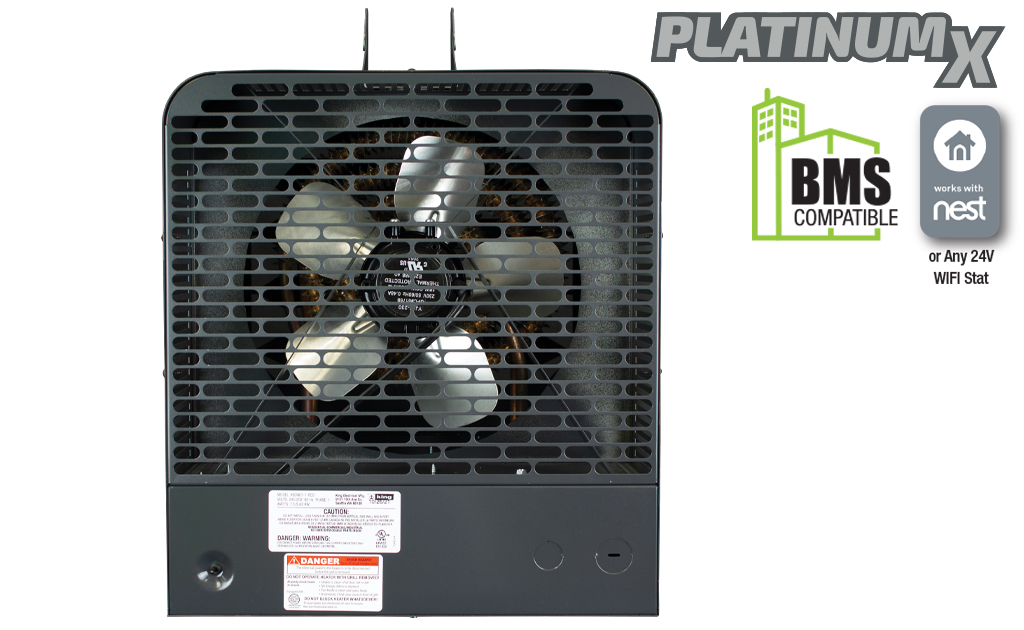

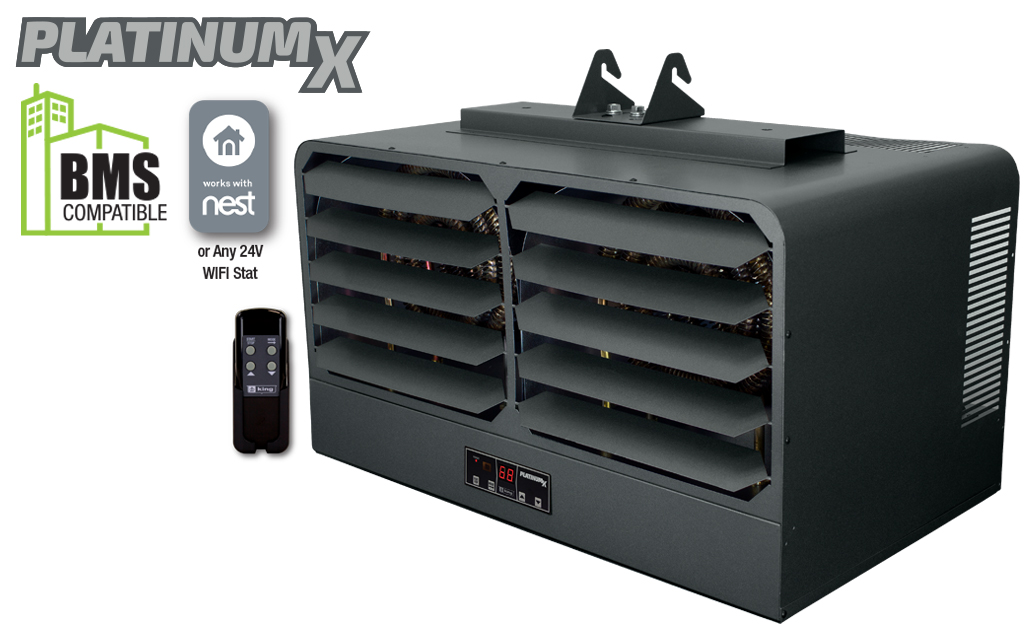

KB PlatinumX BMS

Heavy-Duty Electronic Unit Heater
kW Range: 3–40 kW
Voltage: 208V / 240V / 480V
Phase: 1Ø / 3Ø
Mounting: Wall or Ceiling Mount
Control: Built In ECO2S+ Electronic Thermostat. Includes provision for optional 24V thermostat or building management system integration.
Warranty: 5-Year Limited

Submittal Instructions

Overview

Heavy duty electronic unit heater featuring PlatinumX 1-stage control, 24V thermostat compatibility, and building management system integration.

The KB PlatinumX BMS heavy duty unit heater combines dependable fan forced heating with King Electric’s PlatinumX electronic 1 stage thermostat and building management system integration. Designed for warehouses, garages, stores, high-rise buildings, water treatment rooms, fire room vaults, and other large or exposed areas, the unit provides reliable primary or supplemental heat with precise ±1°F temperature control. Built-in provisions for any 24V remote thermostat or BMS integration, handheld remote operation, summer fan only mode, timer mode, adjustable louvers, fan delay, and Smart Limit Protection make the KB PlatinumX BMS a flexible solution for commercial and industrial heating applications.

Ideal Spaces

Warehouses
Garages and workshops
Commercial buildings and stores
High-rise buildings
Water treatment rooms
Fire room vaults
Mechanical rooms
Industrial facilities

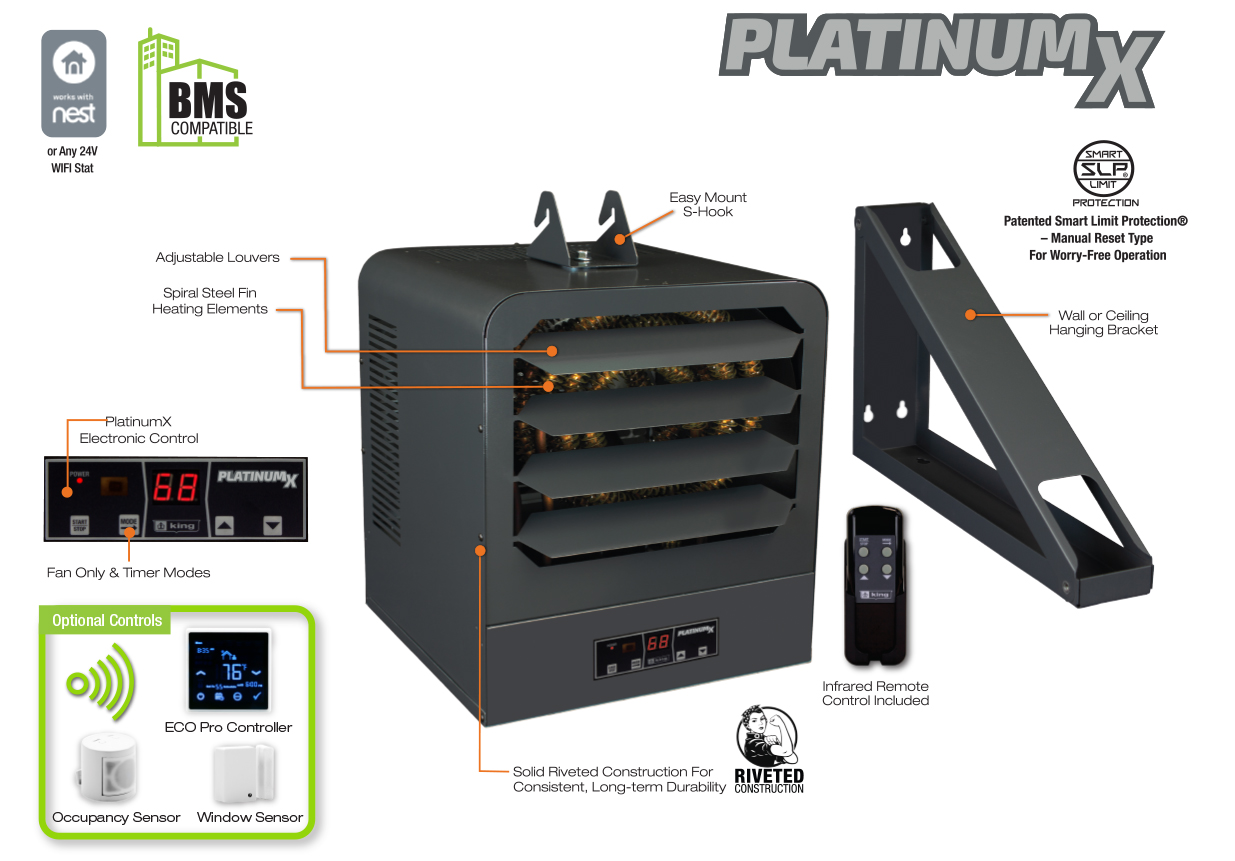

Features & Benefits

PlatinumX electronic 1-stage thermostat
Building Management System integration
Built-in provision for any 24V remote thermostat
Compatible with Nest and other 24V thermostats
Handheld remote control and wall holder included
Summer fan only and timer modes
Auto memory after power outage

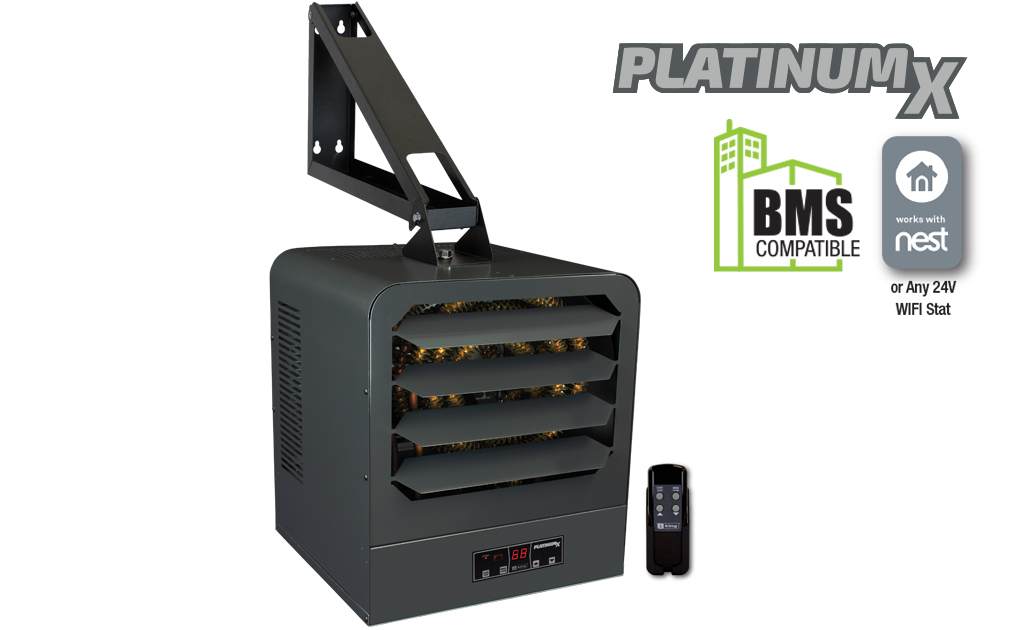

Adjustable louvers to direct airflow
Built-in fan delay to dissipate heat
High mass steel fin heat exchanger
Patented Smart Limit Protection
Made in USA

Models

Complete Stock Models - Single Phase - Ordering Information

MODEL	UPC	KW	BTUH	PHASE	VOLTS	AMPS	MOTOR HP	CFM	TEMP. RISE	AIR THROW	MAX. MOUNT HEIGHT	SIZE	WT. (lbs.)	REVIT	Purchase
KB2003-1-PLTMX-BMS	70474	3.3	11,263	1	208	15.9	16W**	520	20	15ft.	8ft.	A	30.5	Revit	Buy Now Close
KB2004-1-PLTMX-BMS	70475	4	13,652	1	208	19.2	16W**	520	24	15ft.	8ft.	A	30.5	Revit	Buy Now Close
KB2005-1-PLTMX-BMS	70476	5	17,065	1	208	24	16W**	520	30	15ft.	8ft.	A	30.5	Revit	Buy Now Close
KB2007-1-PLTMX-BMS	70477	7.5	25,598	1	208	36.1	25W**	690	34	20ft.	9ft.	B	45	Revit	Buy Now Close
KB2010-1-PLTMX-BMS	70478	9.98	34,130	1	208	48	35W**	800	39	24ft.	10ft.	B	45	Revit	Buy Now Close
KB2012-1-PLTMX-BMS-FB	70479	12.5	42,663	1	208	60.1	50W**	935	42	28ft.	11ft.	C	50	Revit	Buy Now Close
KB2015-1-PLTMX-BMS-FB	70480	15	51,195	1	208	72.1	50W	1050	45	33ft.	12ft.	C	50	Revit	Buy Now Close
KB2403-1-PLTMX-BMS	70481	3.3	11,263	1	240/208*	13.8/11.9*	9W	520	20	15ft.	8ft.	A	30.5	Revit	Buy Now Close
KB2404-1-PLTMX-BMS	70482	4	13,652	1	240/208*	16.7/14.4*	9W	520	24	15ft.	8ft.	A	30.5	Revit	Buy Now Close
KB2405-1-PLTMX-BMS	70483	5	17,065	1	240/208*	20.8/18*	9W	520	30	15ft.	8ft.	A	30.5	Revit	Buy Now Close
KB2407-1-PLTMX-BMS	70484	7.5	25,598	1	240/208*	31.3/27*	16W	690	34	20ft.	9ft.	B	45	Revit	Buy Now Close
KB2410-1-PLTMX-BMS	70485	10	34,130	1	240/208*	41.6/36.1*	16W	800	40	24ft.	10ft.	B	45	Revit	Buy Now Close
KB2412-1-PLTMX-BMS-FB	70486	12.5	42,663	1	240/208*	52.1/45.1*	35W	935	42	28ft.	11ft.	C	50	Revit	Buy Now Close
KB2415-1-PLTMX-BMS-FB	70487	15	51,195	1	240/208*	62.5/54.1*	50W	1050	45	33ft.	12ft.	C	50	Revit	Buy Now Close
KB2703-1-PLTMX-BMS	70488	3	10,239	1	277	10.8	9W	520	18	15ft.	8ft.	A	30.5	Revit	Buy Now Close
KB2704-1-PLTMX-BMS	70489	4	13,652	1	277	14.4	9W	520	24	15ft.	8ft.	A	30.5	Revit	Buy Now Close
KB2705-1-PLTMX-BMS	70490	5	17,065	1	277	18.1	9W	520	30	15ft.	8ft.	A	30.5	Revit	Buy Now Close
KB2707-1-PLTMX-BMS	70491	7.5	25,598	1	277	27.1	16W	690	34	20ft.	9ft.	B	45	Revit	Buy Now Close
KB2710-1-PLTMX-BMS	70492	10	34,130	1	277	36.1	25W	800	40	24ft.	10ft.	B	45	Revit	Buy Now Close

Complete Stock Models - Three Phase - Ordering Information

MODEL	UPC	KW	BTUH	PHASE	VOLTS	AMPS	MOTOR HP	CFM	TEMP. RISE	AIR THROW	MAX. MOUNT HEIGHT	SIZE	WT. (lbs.)	REVIT	Purchase
KB2012-3-PLTMX-BMS	70493	12.5	42,663	3	208	34.7	50W**	935	42	31ft.	12ft.	C	50	Revit	Buy Now Close
KB2015-3-PLTMX-BMS	70494	15	51,195	3	208	41.6	50W	1050	45	33ft.	13ft.	C	50	Revit	Buy Now Close
KB2020-3-PLTMX-BMS-FB	70495	20	68,260	3	208	55.5	1/4 HP	1750	36	37ft.	14ft.	E	60	Revit	Buy Now Close
KB2025-3-PLTMX-BMS-FB	70496	25	85,325	3	208	69.4	(2) 50W**	1870	42	39ft.	15ft.	F	85	Revit	Buy Now Close
KB2030-3-PLTMX-BMS-FB	70497	30	102,390	3	208	83.2	(2) 50W	2100	45	41ft.	17ft.	F	85	Revit	Buy Now Close
KB2412-3-PLTMX-BMS	70498	12.5	42,663	3	240/208*	30.1/26*	35W	935	42	31ft.	12ft.	C	50	Revit	Buy Now Close
KB2415-3-PLTMX-BMS	70499	15	51,195	3	240/208*	36.1/31.2*	50W	1050	45	33ft.	13ft.	C	50	Revit	Buy Now Close
KB2420-3-PLTMX-BMS-FB	70500	20	68,260	3	240/208*	48.1/41.6*	1/4 HP	1750	36	37ft.	14ft.	E	60	Revit	Buy Now Close
KB2425-3-PLTMX-BMS-FB	70501	25	85,325	3	240/208*	60.1/52.0*	(2) 35W	1870	42	39ft.	15ft.	F	85	Revit	Buy Now Close
KB2430-3-PLTMX-BMS-FB	70502	30	102,390	3	240/208*	72.1/62.4*	(2) 50W	2100	45	41ft.	17ft.	F	85	Revit	Buy Now Close
KB2440-3-PLTMX-BMS-FB	70503	40	136,520	3	240/208*	96.2/83.2	(2) 1/4 HP	3500	36	43ft.	19ft.	F	100	Revit	Buy Now Close
KB4820-3-PLTMX-BMS	70504	20	68,260	3	480	24.1	1/4 HP	1750	36	37ft.	14ft.	E	60	Revit	Buy Now Close
KB4825-3-PLTMX-BMS	70505	25	85,325	3	480	30.1	(2) 35W	1870	42	39ft.	15ft.	F	85	Revit	Buy Now Close
KB4830-3-PLTMX-BMS	70506	30	102,390	3	480	36.1	(2) 50W	2100	45	41ft.	17ft.	F	85	Revit	Buy Now Close
KB4840-3-PLTMX-BMS-FB	70507	40	136,520	3	480	48.2	(2) 1/4 HP	3500	36	43ft.	19ft.	G	100	Revit	Buy Now Close

Complete Stock Models - Multi Phase - Ordering Information

MODEL	UPC	KW	BTUH	PHASE	VOLTS	AMPS	MOTOR HP	CFM	TEMP. RISE	AIR THROW	MAX. MOUNT HEIGHT	SIZE	WT. (lbs.)	REVIT	Purchase
KB2003-3MP-PLTMX-BMS	70508	3	10,239	1-3	208	14.4/8.3	16W**	520	18	20ft.	8ft.	C	45	Revit	Buy Now Close
KB2005-3MP-PLTMX-BMS	70509	5	17,065	1-3	208	24/13.9	16W**	520	30	20ft.	8ft.	C	45	Revit	Buy Now Close
KB2007-3MP-PLTMX-BMS	70510	7.5	25,598	1-3	208	36.1/20.8	25W**	690	34	24ft.	9ft.	C	46.5	Revit	Buy Now Close
KB2010-3MP-PLTMX-BMS	70511	9.98	34,062	1-3	208	48/27.7	35W**	800	39	29ft.	11ft.	C	46.5	Revit	Buy Now Close
KB2403-3MP-PLTMX-BMS	70512	3	10,239	1-3	240/208*	12.5/7.2* & 10.8/6.2*	9W	520	18	20ft.	8ft.	C	45	Revit	Buy Now Close
KB2405-3MP-PLTMX-BMS	70513	5	17,065	1-3	240/208*	20.8/12* & 18/10.4*	9W	520	30	20ft.	8ft.	C	45	Revit	Buy Now Close
KB2407-3MP-PLTMX-BMS	70514	7.5	25,598	1-3	240/208*	31.2/18* & 27/15.6*	16W	690	34	24ft.	9ft.	C	46.5	Revit	Buy Now Close
KB2410-3MP-PLTMX-BMS	70515	10	34,130	1-3	240/208*	41.7/24* & 36.1/20.8*	25W	800	40	29ft.	11ft.	C	46.5	Revit	Buy Now Close
KB4803-3MP-PLTMX-BMS	70516	3	10,239	1-3	480	6.3/3.6	9W	520	18	20ft.	8ft.	C	45	Revit	Buy Now Close
KB4805-3MP-PLTMX-BMS	70517	5	17,065	1-3	480	10.4 & 6.0	9W	520	30	20ft.	8ft.	C	45	Revit	Buy Now Close
KB4807-3MP-PLTMX-BMS	70518	7.5	25,598	1-3	480	15.6/9.0	16W	690	34	24ft.	9ft.	C	46.5	Revit	Buy Now Close
KB4810-3MP-PLTMX-BMS	70519	10	34,130	1-3	480	20.8 & 12	25W	800	40	29ft.	11ft.	C	46.5	Revit	Buy Now Close
KB4812-3MP-PLTMX-BMS	70520	12.5	42,663	1-3	480	26 & 15	35W	935	42	31ft.	12ft.	C	50	Revit	Buy Now Close
KB4815-3MP-PLTMX-BMS	70521	15	51,195	1-3	480	31.3 & 18	50W	1050	45	33ft.	13ft.	C	50	Revit	Buy Now Close

Ordering Information - Optional Pro Controller & Accessories

ADD SUFFIX:	UPC	DESCRIPTION	WT. (LBS.)	Purchase

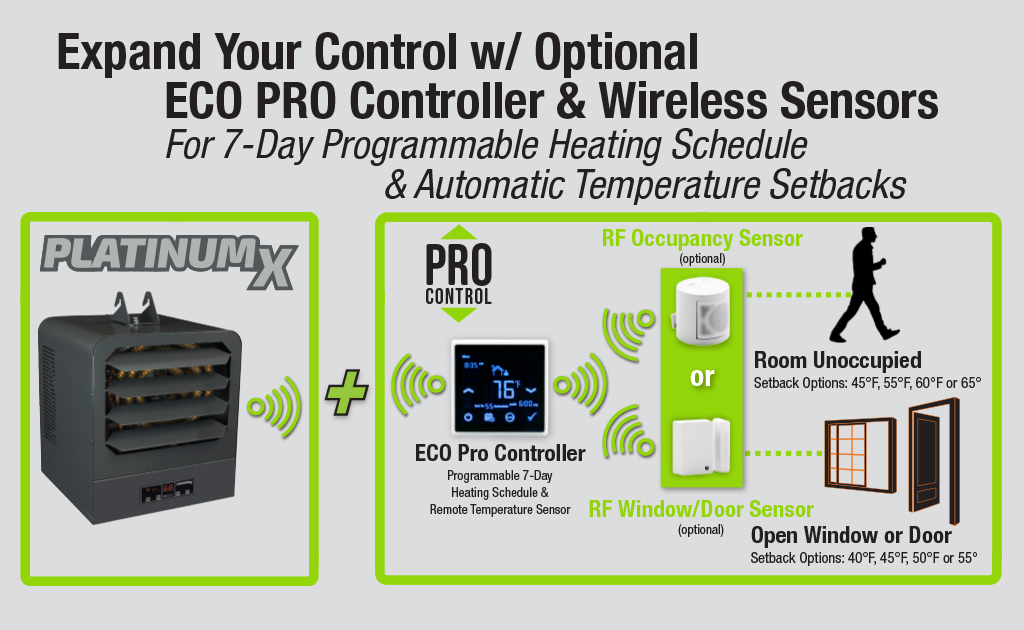

ECO-PRO-CONTROLLER	70421	Pro Controller - 7-Day Programmable Thermostat/Remote Sensor/Remote	0.2	Buy Now Close
ECO-PRO-RF-PIR-SENSOR	70422	Optional, RF Battery Powered PIR Occupancy Sensor for ECO Models	0.2	Buy Now Close
ECO-PRO-RF-WINDOW-SENSOR	70423	Optional, RF Battery Powered PIR Window or Door Sensor for ECO Models	0.2	Buy Now Close

Ordering Information - Optional Field Installed Disconnect Switch

MODEL	UPC	DESCRIPTION	WT. (lbs.)	Purchase
DS32	13480	Disconnect Switch, Field Installed Kit, 32 AMP, 600V	2	Buy Now Close
DS63	13481	Disconnect Switch, Field Installed Kit, 63 AMP, 600V	2	Buy Now Close
DS80	13482	Disconnect Switch, Field Installed Kit, 80 AMP, 600V	2	Buy Now Close
DS100	13483	Disconnect Switch, Field Installed Kit, 100 AMP, 600V	5	Buy Now Close

Ordering Information - Replacement Accessories

MODEL	UPC	DESCRIPTION	WT. (lbs.)	Purchase
KBB-1	13484	Replacement Universal Wall/Ceiling Small Mounting Bracket (for heaters with size A heaters)	1.9	Buy Now Close
KBB-2	13485	Replacement Universal Wall/Ceiling Large Mounting Bracket (for heaters with size B and C)	2.6	Buy Now Close
KBB-3	13488	Replacement Universal Wall/Ceiling Large Mounting Bracket (for heaters with size F & G )	3.9	Buy Now Close
KBHS	13486	Replacement Hook Swivel	0.4	Buy Now Close
KBHK	13487	Replacement Hardware Kit	0.1	Buy Now Close

Ordering Information - Bracket Selection Chart

BRACKET #	HEATER KW SIZE USED WITH	L	W	H	A	B	C	D	E	F	X	Y	Z	Purchase
KBB-1	3 to 5 kW (1 phase)	12 1/2"	2 15/16"	10 1/16"	1 3/16"	7"	1 7/8"	1 7/8"	9 1/4"	1 7/8"	3/4"	1"	1/2"	Buy Now Close
KBB-2	7.5 to 10 kW (1 phase) 3 to 20 kW (3 phase)	16 7/8"	2 15/16"	10 1/8"	1 1/4"	7"	1 7/8"	1 5/8"	13 5/8"	1 5/8"	3/4"	1"	1 1/2"	Buy Now Close
KBB-3	25 to 40 kW (3 phase)	19 1/2"	4 3/16"	13 3/16"	15/16"	10"	1 7/8"	1 5/8"	16 1/4"	1 1/8"	11/16"	1"	2"	Buy Now Close

Specifications

Furnish and install King Electric model KB PlatinumX BMS heavy duty electronic unit heater. Unit shall include PlatinumX electronic 1-stage thermostat control, building management system integration capability, built-in provision for any 24V remote thermostat, fan forced air circulation, adjustable discharge louvers, high mass steel fin heat exchanger, fan delay, and Smart Limit Protection. Heater shall include durable steel housing construction, wall or ceiling mounting provisions, and shall be cULus listed and manufactured in the USA.

Electrical

Voltage: 208V / 240V / 480V
Phase: 1Ø / 3Ø
kW Range: 3–40 kW
Control: PlatinumX Electronic 1-Stage Thermostat
Remote Control Provision: Compatible with any 24V remote thermostat or BMS integration

Performance

Application: Commercial and Industrial Heating
Operation: Single Stage Fan Forced Heating
Control Strategy: PlatinumX Electronic Control with BMS Integration
Temperature Accuracy: ±1°F
Modes: Heat / Summer Fan Only / Timer

Mechanical

Construction: Powder Coated Steel Housing
Mounting: Wall or Ceiling Mount
Fan Assembly: Permanently Lubricated Unit Bearing Motor
Airflow: Adjustable Directional Discharge Louvers
Heat Exchanger: High Mass Steel Fin
Safety: Patented Smart Limit Protection
Accessories: Universal Wall/Ceiling Bracket Included

Control

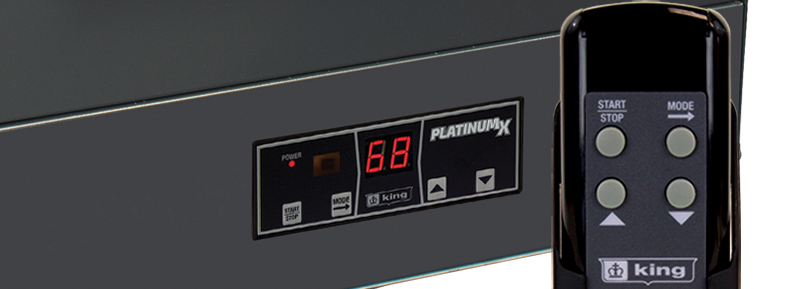

PlatinumX Electronic Controller
40°F to 95°F temperature range
Up/down temperature adjustment
Start/Stop
Fan-only mode
1- to 9-hour timer
Handheld remote control
Auto Memory

24V / BMS Integration

Built-in terminals for optional 24V thermostat
Compatible with Nest and other 24V Wi-Fi thermostats
Compatible with 5-wire BMS systems
Integrated BMS lockout circuit

Compliance

Certification: cULus Listed
Code Compliance: Seattle Energy Code Compliant
Warranty: 5-Year Limited Warranty
Country of Origin: Made in USA
