MODEL LPW COMFORTCRAFT

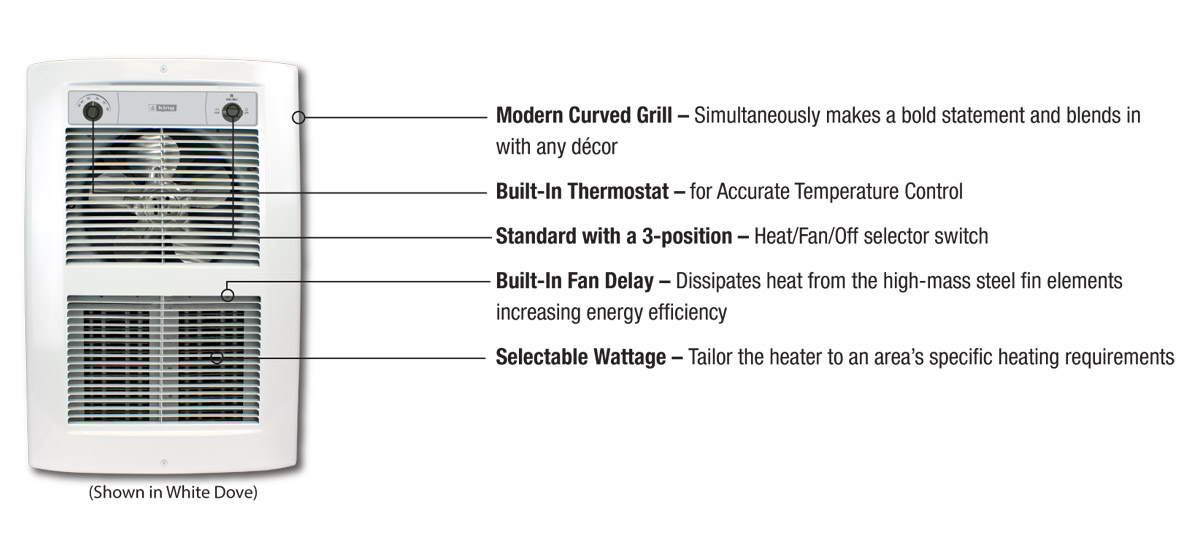

King redefines comfort with a sleek and modern new architectural design. Offering higher output than our industry leading PAW heater. King’s exclusive dual Pic-A-Watt steel fin elements allow customers to select from a range of wattage options, tailoring the heater to an area’s specific heating requirements. With up to 4500W, this is our most popular large wall heater, used in both residential and commercial applications. Standard with a 3-position Heat/Fan/Off Switch and a fan delay to help dissipate heat from the high-mass steel plate fin elements thereby prolonging heater life and increasing energy efficiency. The high quality built-in thermostat has degrees on the label so temperature selection is easy and accurate. Now Available in 4 design colors to match any decor: White Dove, Oiled Bronze, Satin Nickel and Almondine.
The Art of Comfort Heating

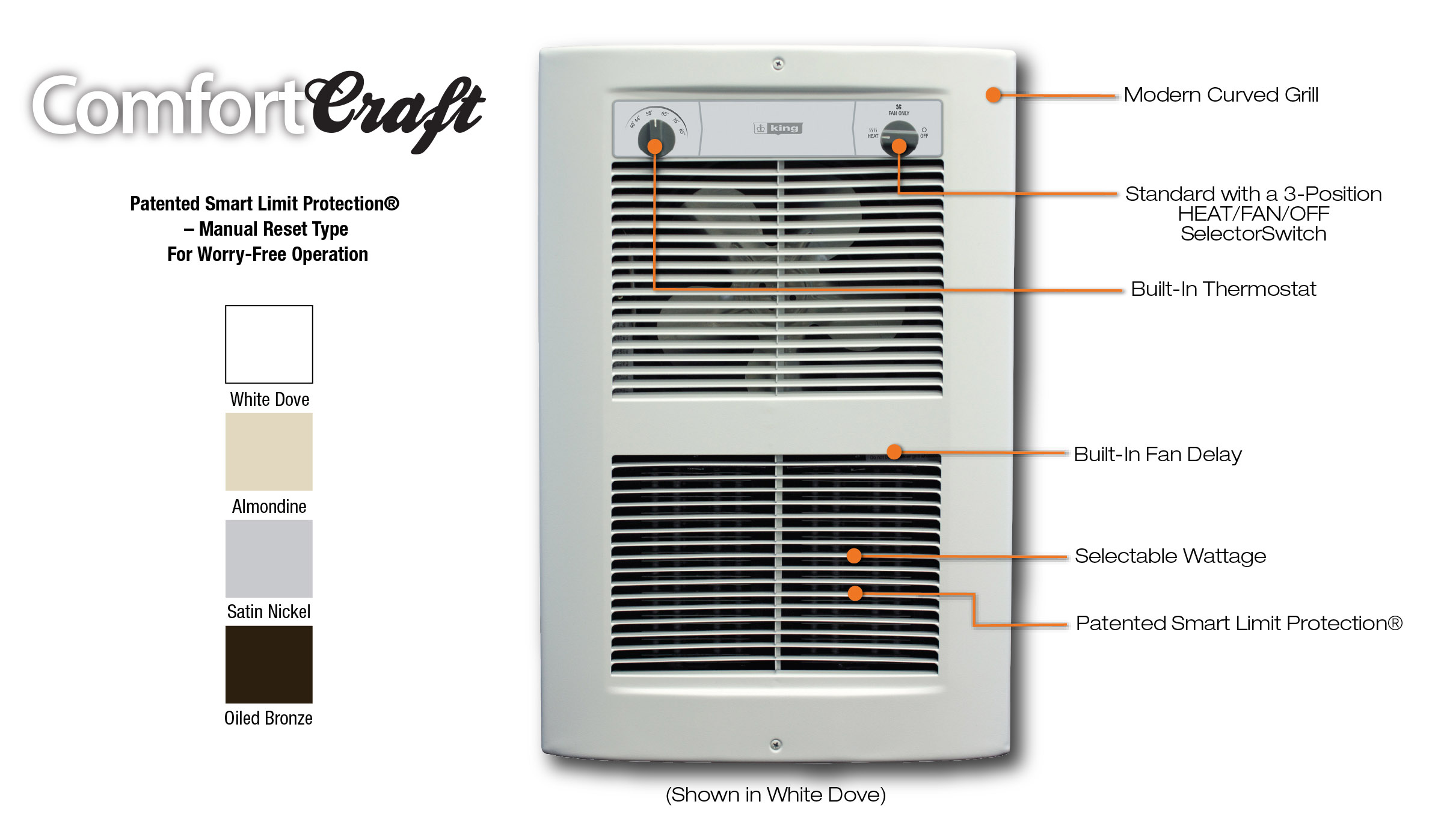

Featuring a modern architectural design and King’s patented Smart Limit Protection®, LPW ComfortCraft offers refined comfort for making Residential and Commercial spaces more comfortable. King’s exclusive Pic-A-Watt element, allow customers to select from a range of wattage options, tailoring the heater to an area’s specific heating needs.
Now That’s Smart!
Freedom of Color

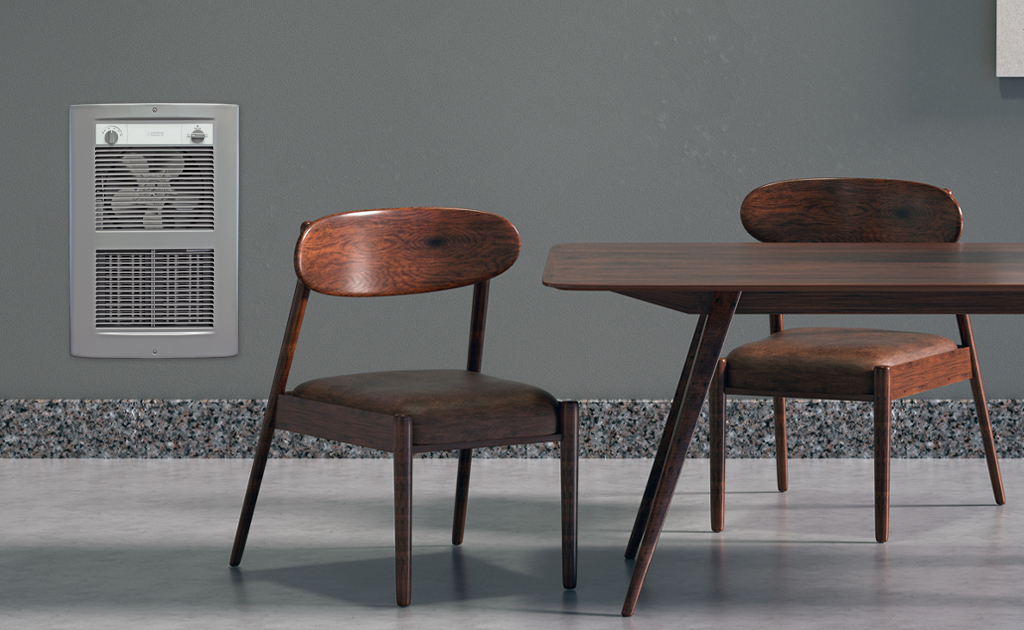

You know what it feels like when you walk into a well-designed building. Combine colors, materials, lighting, and now even designer heating fixtures to achieve the ambiance that fits your building. Choose from one of our dynamic designer colors, inspired by the acrhitecture around us.
White Dove – Almondine – Satin Nickel – Oiled Bronze
The Original Pic-A-Watt Element® Multi-Wattage Element
King’s exclusive Pic-A-Watt element means the heater can easily be tailored to a room’s specific heating requirements. For smaller areas, choose a lower wattage to efficiently heat the room. For larger rooms, choose a higher wattage and maximize comfort. It’s easy as unplugging a wire to select the wattage during installation.
“Complete” Stock Models
|BASE MODEL||VOLTS||COLOR||WATTS||AMPS||SHIP WEIGHT lbs|
|LPW1222T-S2-WD-R||120||White Dove||1250•1500•1750•2000•2250||10.4 - 18.8||19|
|LPW2045T-S2-WD-R||208||White Dove||2250•2750•3000•3250•3500•3750•4000•4500||10.8 - 21.6||19|
|LPW2445T-S2-WD-R||240/208*||White Dove||2250•2750•3000•3250•3500•3750•4000•4500||9.4 - 18.8||19|
|LPW2445T-S2-AD-R||240/208*||Almondine||2250•2750•3000•3250•3500•3750•4000•4500||9.4 - 18.8||19|
|LPW2445T-S2-SN-R||240/208*||Satin Nickel||2250•2750•3000•3250•3500•3750•4000•4500||9.4 - 18.8||19|
|LPW2445T-S2-OB-R||240/208*||Oiled Bronze||2250•2750•3000•3250•3500•3750•4000•4500||9.4 - 18.8||19|
Order A'la Carte Step 1
|ADD SUFFIX||UPC||DESCRIPTION||SHIP WEIGHT lbs|
|LPW1222T-S2-HRC||32594||LPW SERIES 2, 120V 2250W, Heatbox Interior & Recessed Wall Can||11.5|
|LPW2045T-S2-HRC||32636||LPW SERIES 2, 208V 4500W, Heatbox Interior & Recessed Wall Can||11.5|
|LPW2445T-S2-HRC||32637||LPW SERIES 2, 240V 4500W, Heatbox Interior & Recessed Wall Can||11.5|
|LPW2740T-S2-HRC||32644||LPW SERIES 2, 277V 4000W, Heatbox Interior & Recessed Wall Can||11.5|
Order A'la Carte Step 2
|MODEL||UPC||DESCRIPTION||SHIP WEIGHT lbs|
|LPWG-S2-WD||32624||LPW SERIES 2, Grill, White Dove Color||4.5|
|LPWG-S2-AD||32627||LPW SERIES 2, Grill, Almondine Color||4.5|
|LPWG-S2-SN||32625||LPW SERIES 2, Grill, Satin Nickel Color||4.5|
|LPWG-S2-OB||32626||LPW SERIES 2, Grill, Oiled Bronze Color||4.5|
|MODEL||UPC||DESCRIPTION||SHIP WEIGHT lbs|
|LPWSMF-WD||32620||LPW, Surface Mount Frame, White Dove Color||2|
|LPWSMF-AD||32623||LPW, Surface Mount Frame, Almondine Color||2|
|LPWSMF-SN||32621||LPW, Surface Mount Frame, Satin Nickel Color||2|
|LPWSMF-OB||32622||LPW, Surface Mount Frame, Oiled bronze Color||2|
Contractor shall supply and install LPW Series in-wall mounted forced-air electric heaters manufactured by King Electrical Mfg. Company, of the wattage and voltage as indicated on the plans.
Motor: Heavy-duty, cast iron, unit bearing, permanently lubricated with 20cc oil reservoir, 1440 RPM. Enclosed impedance protected with intake air cooling motor for increased bearing life.
Fan: High efficiency, dynamically balanced 5-blade aluminum fan. 185 CFM.
Thermostat: 1-Pole built-in thermostat 45-80°F operating range.
Elements: Element assemblies shall consist of three steel sheathed heating tubes in a furnace-brazed, plate-finned, block design. Each sheathed tube shall contain coiled Ni-Chrome wire, embedded in an insulator of Magnesium Oxide. The element assembly shall provide up to eight (8) possible wattage configurations available for selection during field installation. The use of external resistors, diodes, or other weak links to obtain multiple wattages will not be accepted.
Thermal Overload: Heaters shall be equipped with King’s patented thermal overload Smart Limit Protection®, which disconnects elements and motor in the event normal operating temperatures are exceeded. If thermal overload trips due to abnormal operating temperatures, thermal overload shall remain open until manually reset by turning the heater off for 15 minutes.
Fan / Heat / Off Switch: 3-position switch provides heating and summer fan-only operation. The DPST off switch provides a “positive off” that disconnects all ungrounded conductors.

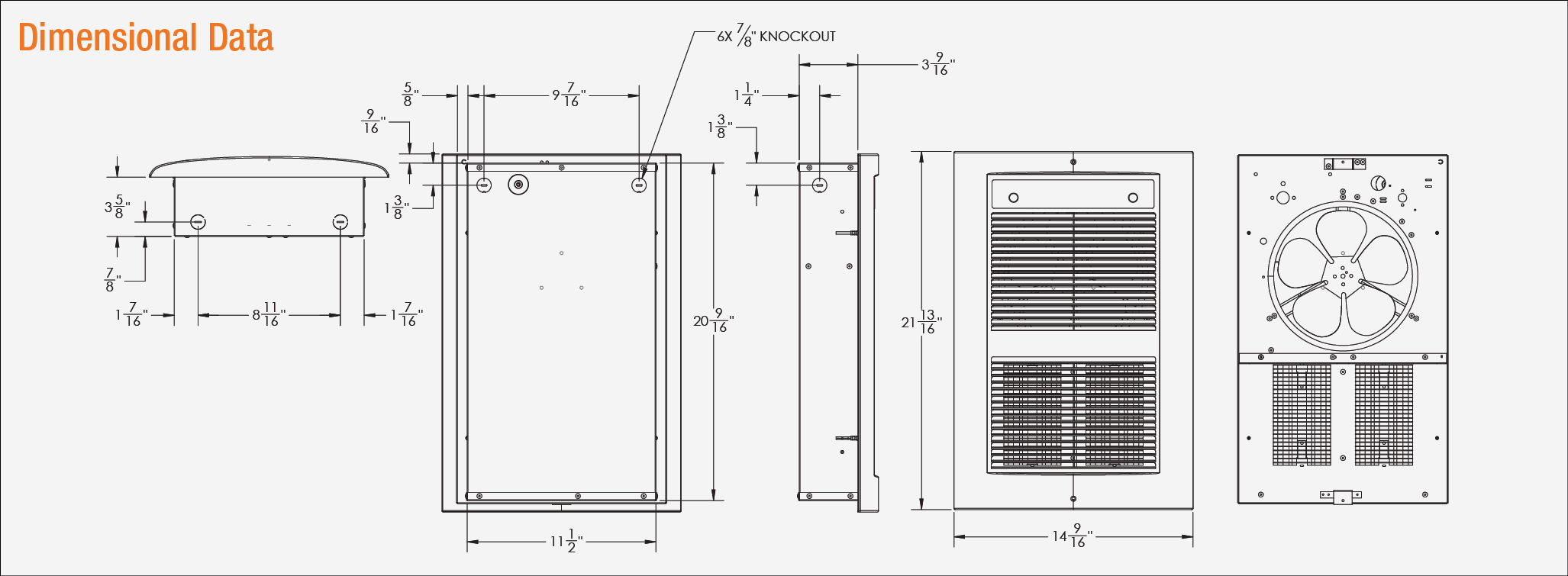

Wall-box: 20 gauge electro-galvanized steel with factory installed ground-wire. Minimum 4”clearance to floors and 6”to sidewalls. Zero clearance to combustibles in the wall. Recommended 10” clearance to floors and 16” to sidewalls.
Grill: 20 gauge steel finished in a gloss white, powder-coated paint.
Options: Retrofit grill, and surface wall-box.
