MODEL PX ECO2S
The PX ECO2S smart heater delivers maximum energy efficiency with automatic 2-stage heating, automatically using the lowest wattage needed to heat the room. In a cold room it utilizes full power to heat the room quickly. Once the desired temperature is achieved, the heater automatically reduces the wattage to maintain the room temperature and save energy.
With the ECO2S Remote Temperature Sensor, your ECO2S heater knows exactly where the room’s cold spot is and works smarter to keep the entire room comfortable. Just place it on a wall or shelf and get the right temperature, right where you want it.
PX ECO2S includes both summer fan only and timer mode options, as well as a remote control for simple operation and a Display Lock feature for high traffic areas. Now Available in 4 design colors to match any decor: White Dove, Oiled Bronze, Satin Nickel and Almondine. In addition, King’s exclusive Pic-A-Watt selectable wattage element allows customers to select from a range of wattage options, tailoring the heater to a room’s specific heating requirements. Now That’s Smart!

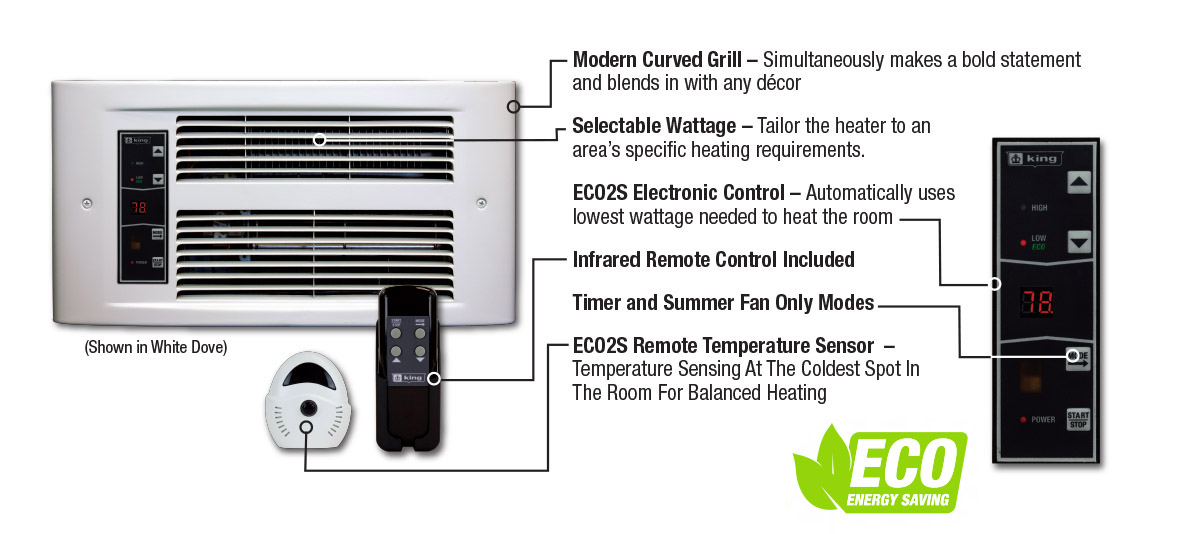

- Smart ECO2S Energy-Saving Design
- 2-Stage Heating: Automatically Uses Lowest Wattage Needed
- Includes ECO2S Remote Temperature Sensor, Your ECO2S Heater Knows Exactly Where the Room's Cold Spot is & Works Smarter to Keep the Entire Room Comfortable. Just Place It On a Wall or Shelf & Get the Right Temperature, Right Where You Want It.
- Hand Held Remote Control & Wall Holder Included
- Auto Memory Feature: Returns Unit To Last Settings After Power Outage
- Multiple Wattage Options, to Tailor to a Room’s Specific Heating Requirements
- Patented Smart Limit Protection®
- Whisper Quiet Squirrel Cage Blower
- Timer & Summer Fan Only Modes
- Display Lock Feature For High Traffic Areas
- Bedroom "Environment" Feature, Turns Off The Display When Not In Use
- Available in (4) New Designer Finishes
- Proudly Made in the USA with U.S. & Global Materials
- 5-Year Limited Warranty

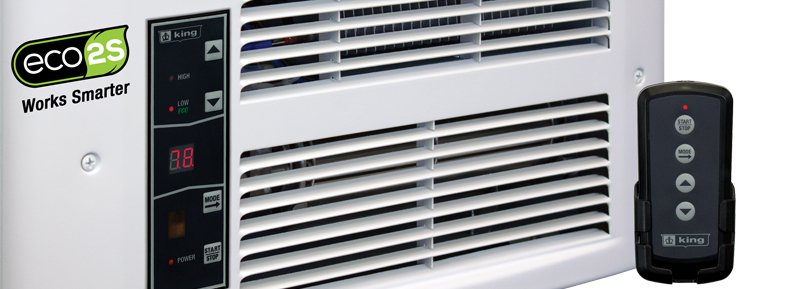

Technology in Comfort Heating
ECO2S Works Smarter Not Harder.
King redefines comfort with the smart series PX ECO2S. Combining a sleek and modern architectural design with the unparalleled performance, energy efficiency and user control of the ECO2S 2-stage electronic controller with remote. The PX ECO2S delivers maximum energy efficiency with automatic 2-stage heating, automatically uses the lowest wattage needed to heat the room. Includes both summer fan only and timer modes for year round comfort, as well as a remote control for simple operation.
Now That’s Smart!
Meet the ECO2S Temperature Sensor
Let’s face it, most rooms have cold spots and don’t ever seem to maintain an even temperature throughout. With the ECO2S Temperature Sensor, your ECO2S heater knows exactly where that cold spot is and works smarter to keep the entire room comfortable. Just place it on a wall or shelf and get the right temperature, right where you want it. Also available is the optional accessory EC02S-5V-PWRSPLY wall adapter that allows the sensor to be plugged into a wall outlet for power.
Display Lock Feature For High Traffic Areas
ECO2S is powerful enough to prevent tampering of the settings in high traffic areas. Simply set the Display Lock mode and it deactivates the button on the display, while the remote control is still functional for the facilities management staff.

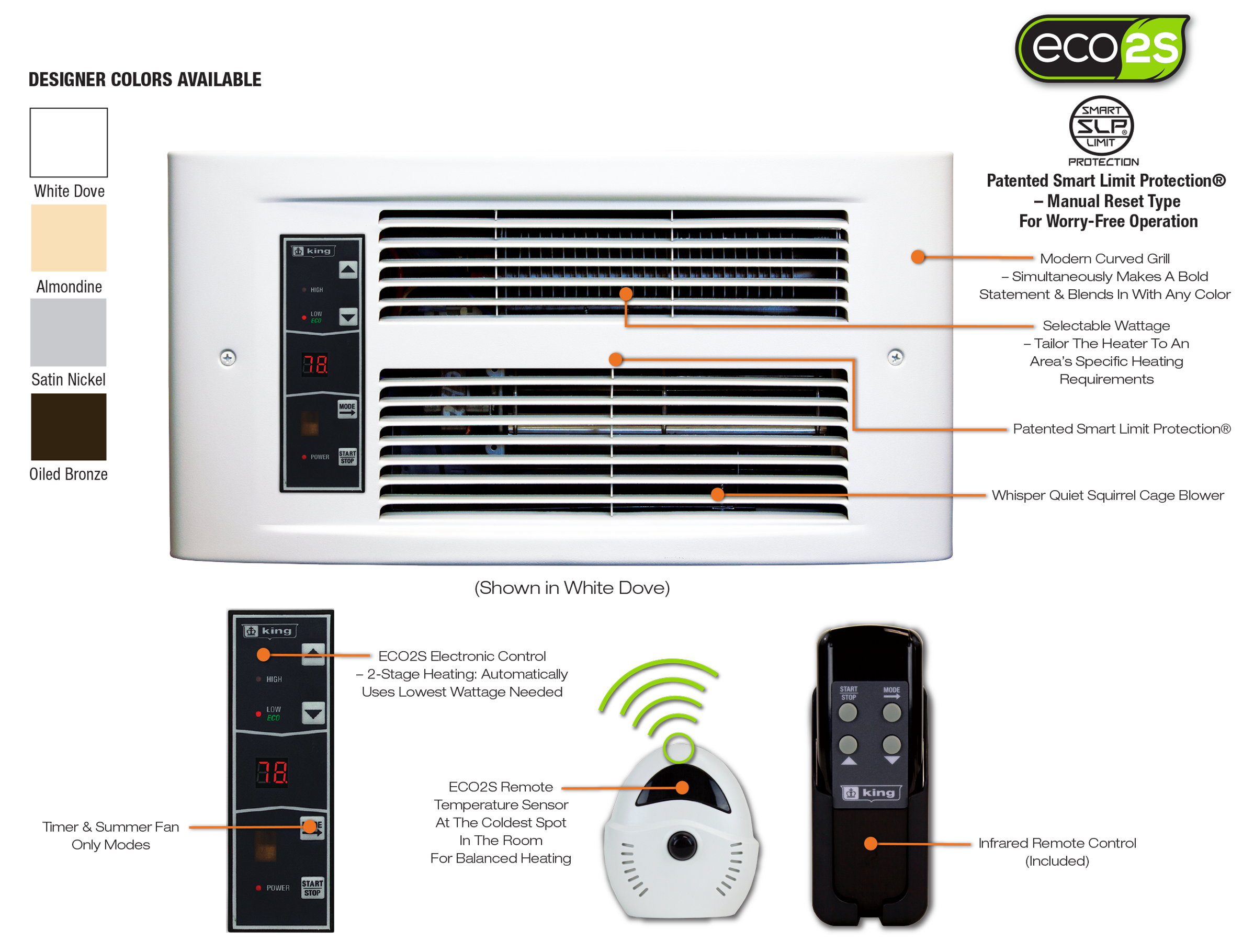

Freedom of Color
You know what it feels like when you walk into a well-designed building. Combine colors, materials, lighting, and now even designer heating fixtures to achieve the ambiance that fits your building. Choose from one of our dynamic designer colors, inspired by the architecture around us.

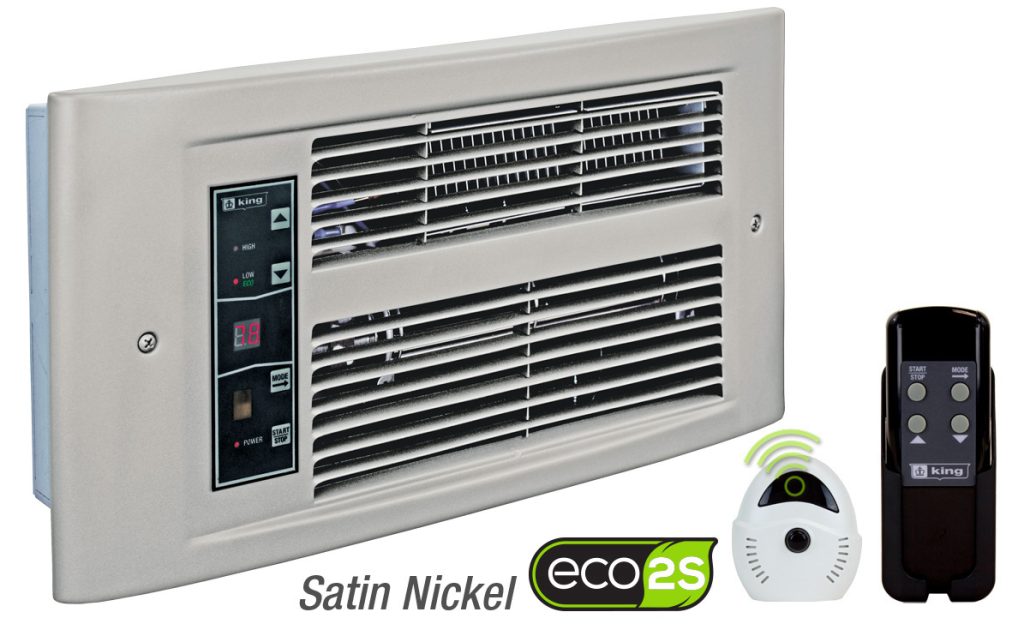

White Dove – Almondine – Satin Nickel – Oiled Bronze
The Original Pic-A-Watt® Multi-Wattage Element
King’s exclusive Pic-A-Watt element means the heater can easily be tailored to a room’s specific heating requirements. For smaller areas, choose a lower wattage to efficiently heat the room. For larger rooms, choose a higher wattage and maximize comfort. It’s easy as unplugging a wire to select the wattage during installation.
Complete Stock Models - Ordering Information
|BASE MODEL||VOLTS||COLOR||WATTS||AMPS||SHIP WEIGHT lbs||Purchase|
|PX1215-ECO-WD-R||120||White Dove||750•1000•1250•1500||6.25 - 12.5||12.5||Buy Now|
|PX1215-ECO-AD-R||120||Almondine||750•1000•1250•1500||6.25 - 12.5||12.5||Buy Now|
|PX1215-ECO-SN-R||120||Satin Nickel||750•1000•1250•1500||6.25 - 12.5||12.5||Buy Now|
|PX1215-ECO-OB-R||120||Oiled Bronze||750•1000•1250•1500||6.25 - 12.5||12.5||Buy Now|
|PX2017-ECO-WD-R||208||White Dove||750•1250•1500•1000•1750||3.6 - 8.4||12.5||Buy Now|
|PX2017-ECO-AD-R||208||Almondine||750•1250•1500•1000•1750||3.6 - 8.4||12.5||Buy Now|
|PX2017-ECO-SN-R||208||Satin Nickel||750•1250•1500•1000•1750||3.6 - 8.4||12.5||Buy Now|
|PX2017-ECO-OB-R||208||Oiled Bronze||750•1250•1500•1000•1750||3.6 - 8.4||12.5||Buy Now|
|PX2417-ECO-WD-R||240/208*||White Dove||750•1250•1500•1000•1750||3.1 - 7.3||12.5||Buy Now|
|PX2417-ECO-AD-R||240/208*||Almondine||750•1250•1500•1000•1750||3.1 - 7.3||12.5||Buy Now|
|PX2417-ECO-SN-R||240/208*||Satin Nickel||750•1250•1500•1000•1750||3.1 - 7.3||12.5||Buy Now|
|PX2417-ECO-OB-R||240/208*||Oiled Bronze||750•1250•1500•1000•1750||3.1 - 7.3||12.5||Buy Now|
Order A'la Carte Step 1 - Ordering Information
|MODEL||UPC||DESCRIPTION||SHIP WEIGHT lbs|
|PX1215-ECO-HRC||32692||PX ECO, 120V 1500W, Heatbox Interior & Recessed Wall Can||10.4|
|PX2017-ECO-HRC||32693||PX ECO, 208V 1750W, Heatbox Interior & Recessed Wall Can||10.4|
|PX2417-ECO-HRC||32694||PX ECO, 240V 1750W, Heatbox Interior & Recessed Wall Can||10.4|
Order A'la Carte Step 2 - Ordering Information
|MODEL||UPC||DESCRIPTION||SHIP WEIGHT lbs|
|PXG-ECO-WD||17242||PX ECO, Grill, White Dove Color||2.1|
|PXG-ECO-AD||17243||PX ECO, Grill, Almondine Color||2.1|
|PXG-ECO-SN||17241||PX ECO, Grill, Satin Nickel Color||2.1|
|PXG-ECO-OB||17240||PX ECO, Grill, Oiled Bronze Color||2.1|
Ordering Information - Accessories
|MODEL||UPC||DESCRIPTION||SHIP WEIGHT lbs|
|PXSMF-WD||32695||PX ECO, Surface Mount Frame, White Dove Color||2.4|
|PXSMF-AD||32696||PX ECO, Surface Mount Frame, Almondine Color||2.4|
|PXSMF-SN||32697||PX ECO, Surface Mount Frame, Satin Nickel Color||2.4|
|PXSMF-OB||32698||PX ECO, Surface Mount Frame, Oiled bronze Color||2.4|
|PX-RP||32699||PX, Rough In Plate - For New Construction||0.5|
|PXIC||32704||PX ECO, Wall Can||3|
|ECO2S-REMOTE||33489||PX ECO, Replacement Infrared Remote Control||0.1|
|ECO2S-REMOTE-BRACKET||33490||PX ECO, Replacement Infrared Remote Control Wall Mount Bracket||0.2|
|ECO2S-REMOTE-SENSOR||33491||PX ECO, Remote Temperature Sensor||0.2|
|EC02S-5V-PWRSPLY||33167||PX ECO, 5V DC Wall Adapter, Optional Accessory||0.4|
Contractor shall supply and install PX ECO2S Series electronic in-wall forced-air electric heaters manufactured by King Electrical Mfg. Company, of the wattage and voltage as indicated on the plans.
Ratings: Heaters shall be available in wattages of 750 to 1,500 at 120 or 750-1750 at 208, or 240 Volts.
ECO2S Electronic Control: Up, Down temperature mode. Automatic 2-Stage heating (High & ECO Modes). Start/Stop. Fan Only and Timer (1-9hours) Modes. Standard on all heaters. The control voltage is equal to the line voltage.
Auto Memory Feature: Returns Unit To Last Settings After Power Outage
ECO2S Remote Temperature Sensor: Wireless remote temperature sensing for balanced heating at the coldest spot in the room. 2.4G wireless protocol. Includes wall mounting bracket.
Blower and Motor: A whisper quiet tangential blower, delivering 75 CFM, shall be driven by a shaded pole, permanently lubricated, C-frame type motor with impedance protection and sealed bearings. Motors shall be the same voltage as the heater.
Elements: Element assemblies shall consist of three steel sheathed heating tubes in a furnace-brazed, plate-finned, block design. Each sheathed tube shall contain coiled Ni-Chrome wire embedded in an insulator of Magnesium Oxide. The element assembly shall provide up to seven (7) possible wattage configurations available for selection during field installation. The use of external resistors, diodes, or other weak links to obtain multiple wattages will not be acceptable.
Thermal Overload: Heaters shall be equipped with King’s patented thermal overload Smart Limit Protection®, which disconnects the elements and motor in the event normal operating temperatures are exceeded. If thermal overload trips due to abnormal operating temperatures, thermal overload shall remain open until manually reset by turning the heater off for 15 minutes. Automatic reset of thermal overloads, which allow the element to continue to cycle under abnormal conditions, will not be accepted.
Grill: The grill shall be a louvered, one-piece curved front design with rounded edges on all four sides, with duct flange outlet to achieve maximum heat transfer. The grill shall be epoxy powder-coated in white dove, almondine, satin nickel or oiled bronze.

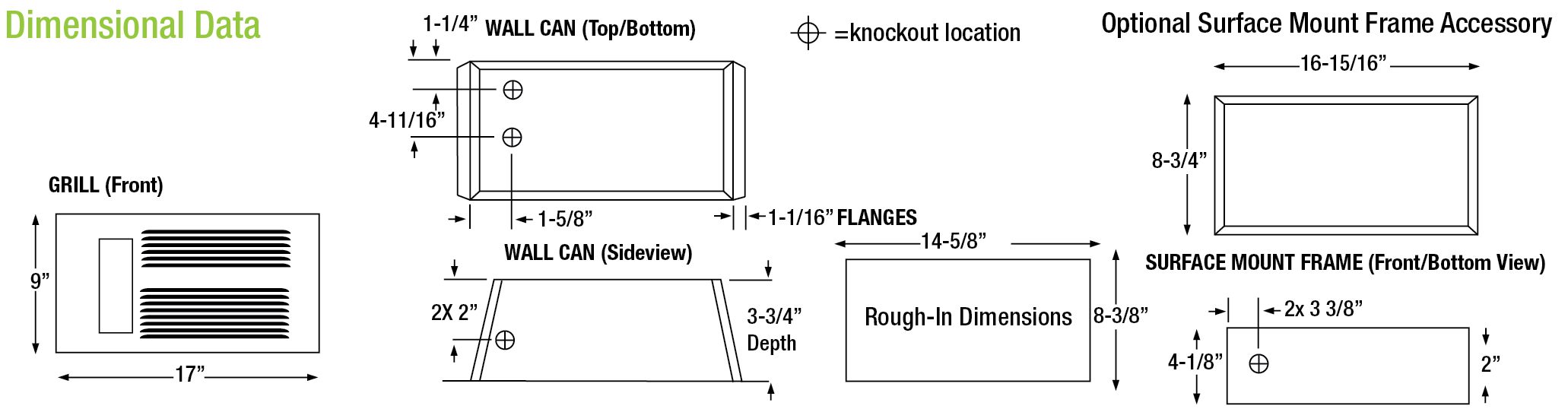

Wall Can: The wall can shall be 20 gauge electro-galvanized steel and shall contain a minimum of three (3) knockouts. The wall can shall have a factory installed, insulated and stranded copper ground-wire. Minimum 4”clearance to floors and 6”sidewalls. Zero clearance to combustibles in the wall.
Approvals: cULus (E41422)
