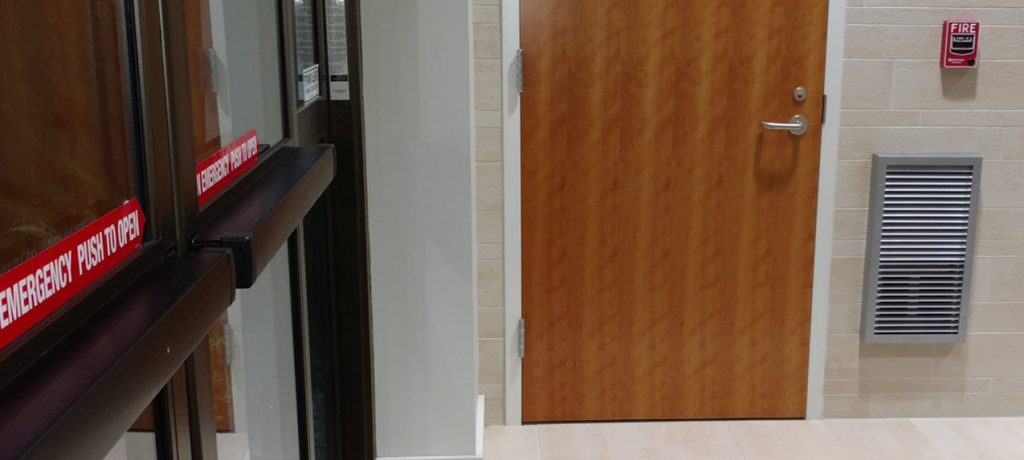

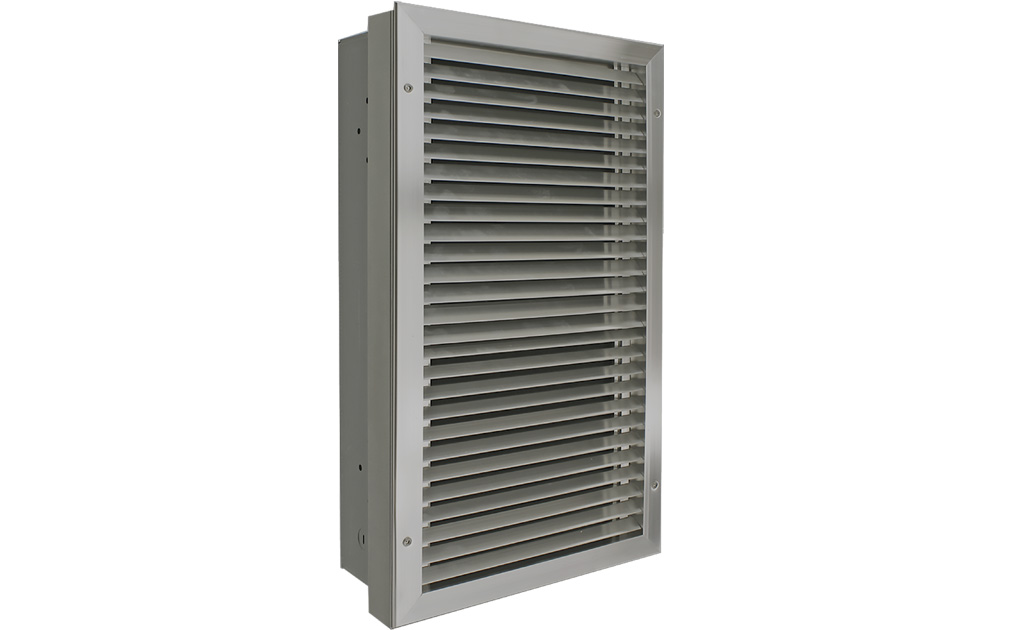

Entryways, corridors and all public areas are best heated with the LPWA Series. King’s exclusive Pic-A-Watt steel fin element allows customers to select from a range of wattage options, tailoring the heater to an area’s specific heating requirements. The heavy duty grill and frame can withstand heavy traffic and abuse. Tamper-resistant screws prevent unauthorized disassembly of the grill. The 3-Position Heat/Fan/Off-Disconnect switch is recessed out-of-reach of fiddling fingers. High wattage and airflow capacities replenish entryways and hallways to prevent drafts from entering the building’s core.
- Architectural Design
- The Original Pic-A-Watt Elements
- Multiple Wattage Options, To Tailor To a Room’s Specific Heating Requirements
- Built-in Tamper-Proof Single Pole Thermostat (40 ̊F to 90 ̊F) preventing unauthorized adjustment.
- Tamper Resistant 3 Position Switch: Heat/Fan/Off-Disconnect
- Extruded Aluminum Grill
- Patented Smart Limit Protection®
- Long Life Unit Bearing Motor

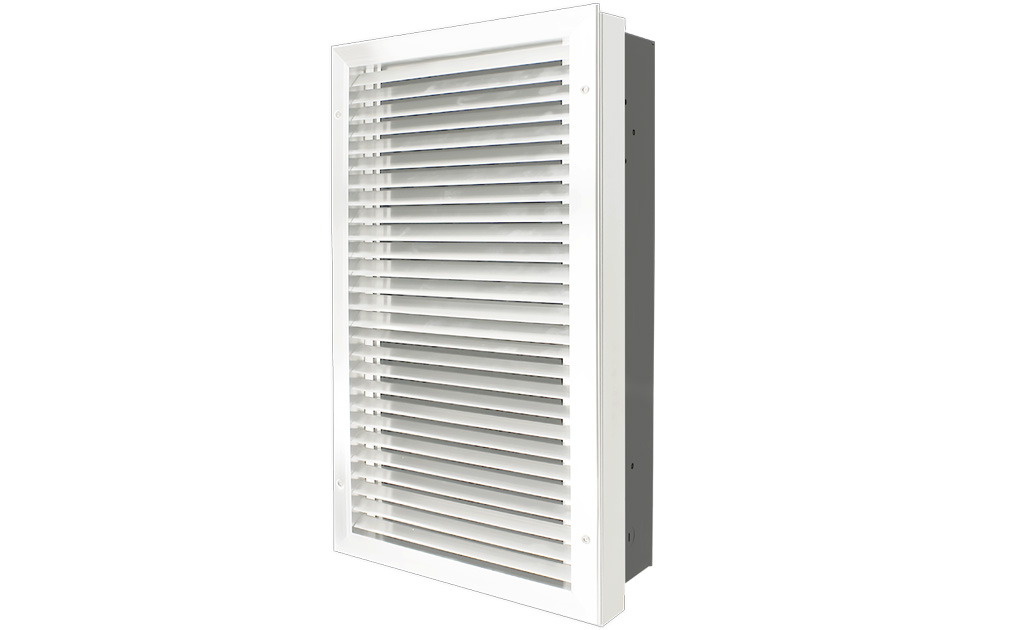

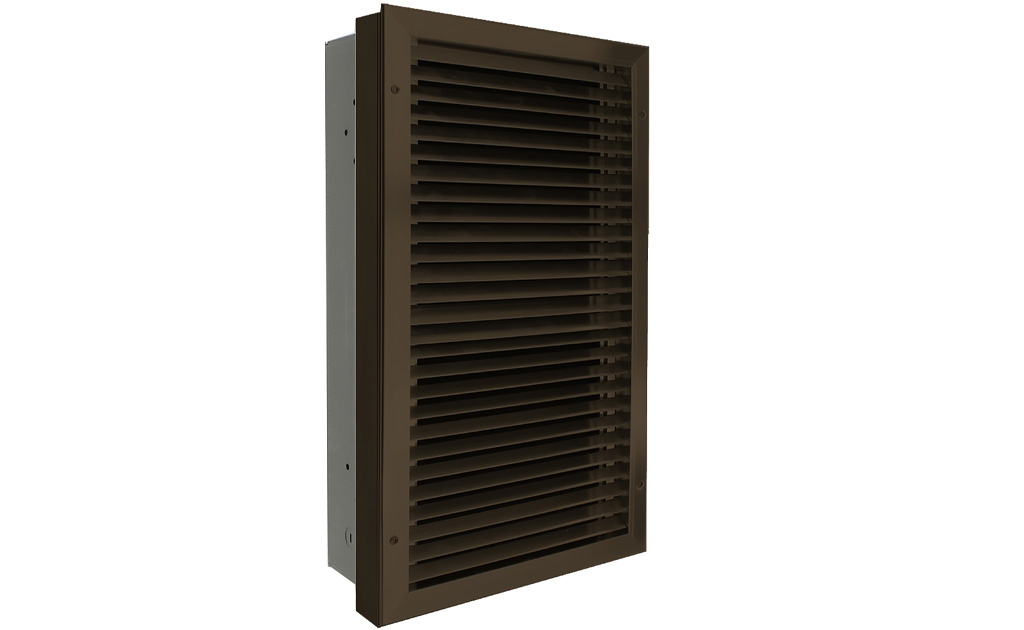

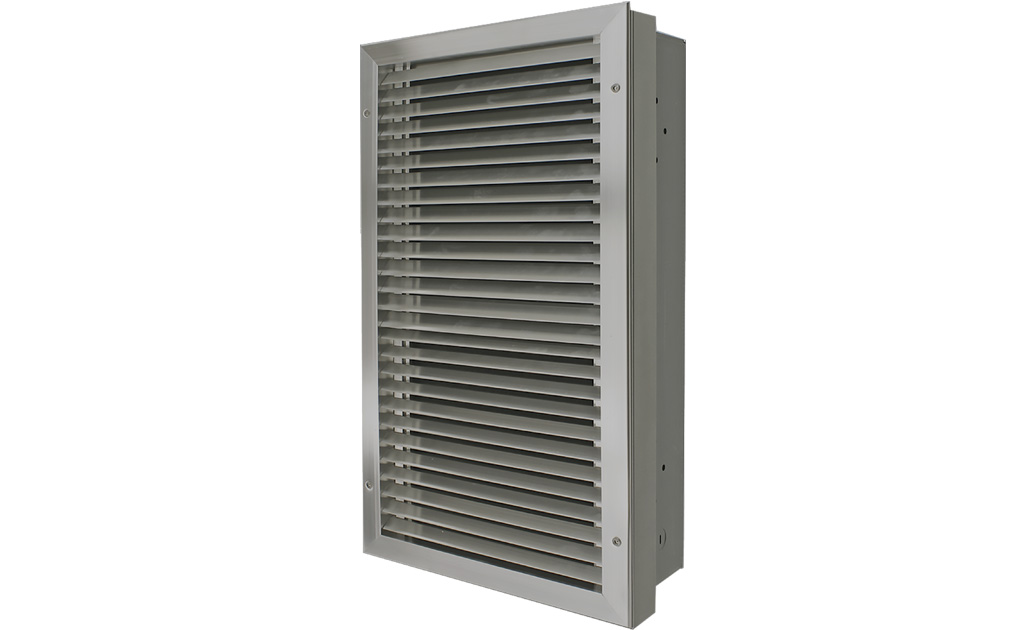

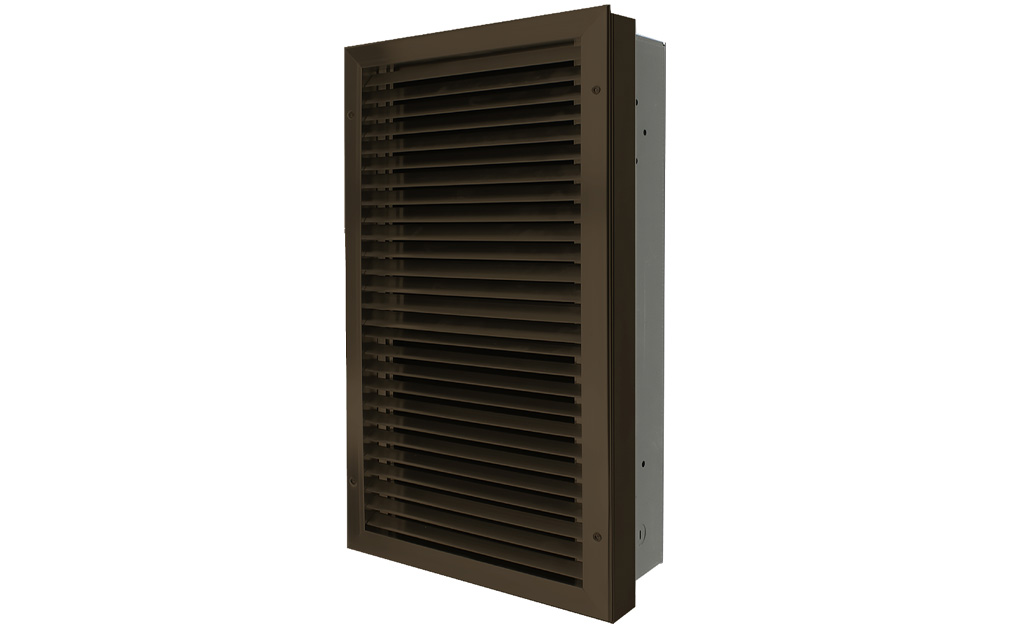

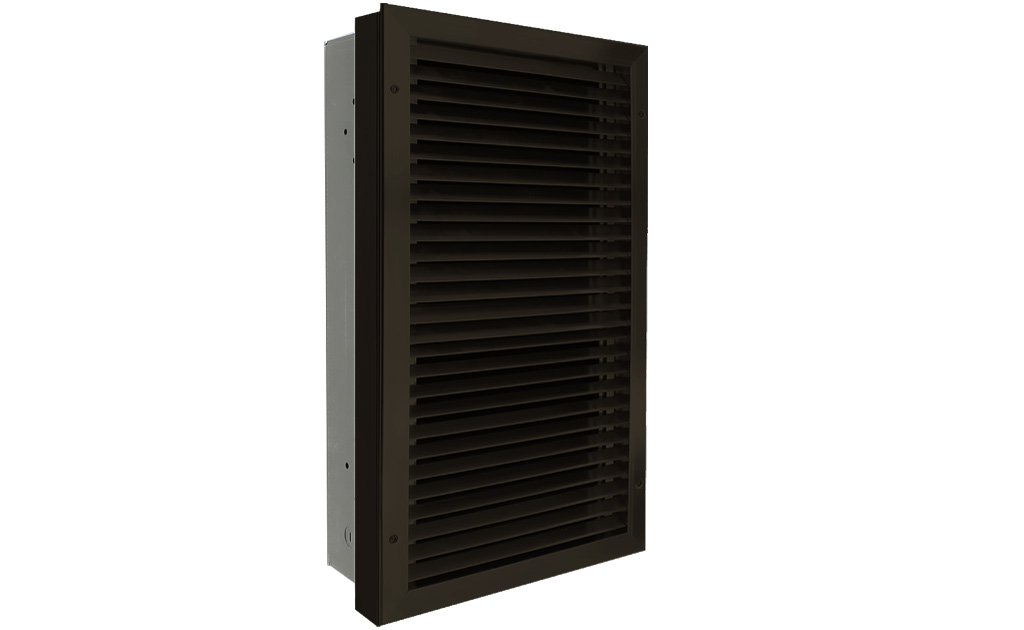

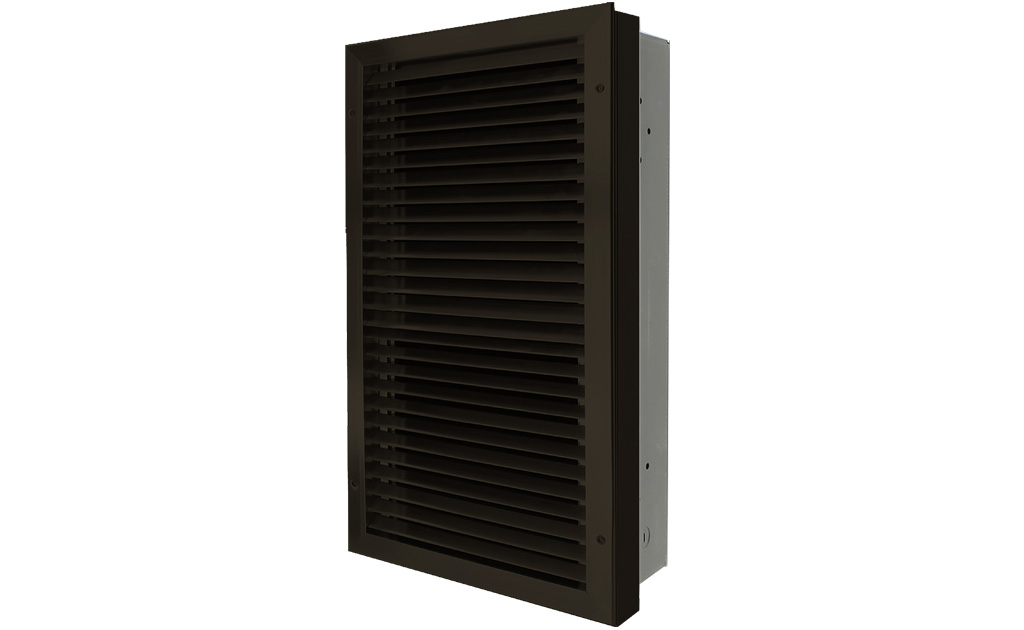

- Available in Silver, Black, Bronze and White Finishes
- Proudly Made in the USA with U.S. & Global Materials
- 5-Year Limited Warranty
The Original Pic-A-Watt Element® Multi-Wattage Element
King’s exclusive Pic-A-Watt element means the heater can easily be tailored to a room’s specific heating requirements. For smaller areas, choose a lower wattage to efficiently heat the room. For larger rooms, choose a higher wattage and maximize comfort. It’s easy as unplugging a wire to select the wattage during installation.
Now That’s Smart!
Durable. Architectural. Elegance.
Heavy-traffic entryways, corridors and all public areas are best heated with the LPWA Series. The heavy duty grill and frame can withstand heavy traffic and abuse.
Now That’s Smart!

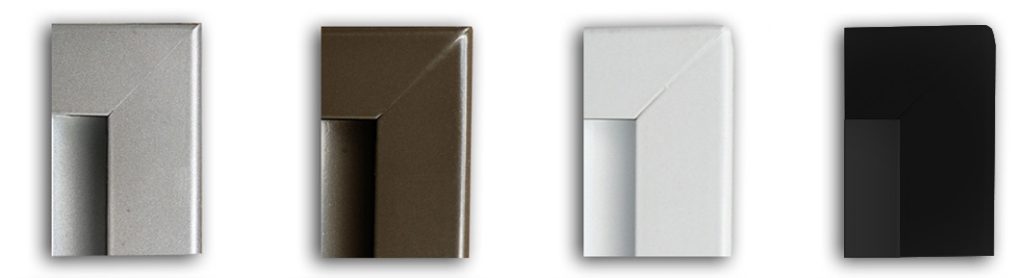

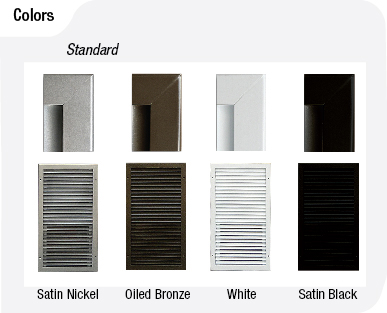

Freedom of Color
You know what it feels like when you walk into a well-designed building. Combine colors, materials, lighting, and now even designer heating fixtures to achieve the ambiance that fits your building. Choose from one of our dynamic designer colors, inspired by the architecture around us.
Available Models
Ordering Information
| king | UPC | COLOR | VOLTS | WATTS | AMPS | SHIP WEIGHT lbs | Purchase |
|---|---|---|---|---|---|---|---|
| LPWA1227-TP-G | 18194 | Silver | 120 | 1250-1500-1750-2000-2750 | 22.9 | 24 | Buy Now |
| LPWA1227-TP-W | 20557 | White | 120 | 1250-1500-1750-2000-2750 | 22.9 | 24 | Buy Now |
| LPWA1227-S-TP-G | 33052 | Silver | 120 | 1250-1500-1750-2000-2750 | 22.9 | 24 | Buy Now |
| LPWA1227-S-TP-W | 20558 | White | 120 | 1250-1500-1750-2000-2750 | 22.9 | 24 | Buy Now |
| LPWA2045-TP-G | 18245 | Silver | 208 | 2250-2750-3000-3250-3500-3750-4000-4500 | 21.6 | 24 | Buy Now |
| LPWA2045-TP-W | 18247 | White | 208 | 2250-2750-3000-3250-3500-3750-4000-4500 | 21.6 | 24 | Buy Now |
| LPWA2045-S-TP-G | 18241 | Silver | 208 | 2250-2750-3000-3250-3500-3750-4000-4500 | 21.6 | 24 | Buy Now |
| LPWA2045-S-TP-W | 18339 | White | 208 | 2250-2750-3000-3250-3500-3750-4000-4500 | 21.6 | 24 | Buy Now |
| LPWA2445-TP-G | 18191 | Silver | 240/208* | 2250-2750-3000-3250-3500-3750-4000-4500 | 18.8 | 24 | Buy Now |
| LPWA2445-TP-W | 18178 | White | 240/208* | 2250-2750-3000-3250-3500-3750-4000-4500 | 18.8 | 24 | Buy Now |
| LPWA2445-S-TP-G | 32962 | Silver | 240/208* | 2250-2750-3000-3250-3500-3750-4000-4500 | 18.8 | 24 | Buy Now |
| LPWA2445-S-TP-W | 32973 | White | 240/208* | 2250-2750-3000-3250-3500-3750-4000-4500 | 18.8 | 24 | Buy Now |
| LPWA2740-TP-G | 18199 | Silver | 277 | 2000-3000-4000 | 14.4 | 24 | Buy Now |
| LPWA2740-TP-W | 20921 | White | 277 | 2000-3000-4000 | 14.4 | 24 | Buy Now |
| LPWA2740-S-TP-G | 18185 | Silver | 277 | 2000-3000-4000 | 14.4 | 24 | Buy Now |
| LPWA2740-S-TP-W | 33019 | White | 277 | 2000-3000-4000 | 14.4 | 24 | Buy Now |
Ordering Information - Options
| ADD SUFFIX | DESCRIPTION | WEIGHT lbs |
|---|---|---|
| -B | Grill - Black | 24 |
| -BZ | Grill - Bronze | 24 |
| -W | Grill - White | 24 |
| -G | Grill - Silver | 24 |
| -CT24* | Transformer/Relay | 24.5 |
| -HLR | Heat Lock Out Relay for BMS Systems | 0.1 |
| -S | Surface Can Included | 24 |
| -CB2 | 20 Amp Double Pole Circuit Breaker / Disconnect | 0.5 |
| -CB3 | 30 Amp Double Pole Circuit Breaker / Disconnect | 0.5 |
Ordering Information - Accessories
| MODEL | UPC | DESCRIPTION | WEIGHT lbs | Purchase |
|---|---|---|---|---|
| LPWAIC | 18200 | Architectural Recess Wall Can | 6.5 | Buy Now |
| LPWASA-B | 17345 | Surface Can Black | 5 | Buy Now |
| LPWASA-BZ | 18202 | Surface Can Bronze | 5 | Buy Now |
| LPWASA-G | 18197 | Surface Can Silver | 5 | Buy Now |
| LPWASA-W | 18201 | Surface Can White | 5 | Buy Now |
| LPWAG-BZ | 18206 | LPWA Series Grill - Bronze | 7 | Buy Now |
| LPWAG-G | 18158 | LPWA Series Grill - Silver | 7 | Buy Now |
| LPWAG-BW | 18387 | LPWA Series Grill - Bright White | 7 | Buy Now |
| LPWA-TP | 18140 | Tamper-proof Thermostat Replacement | 2 | Buy Now |
Engineering Specs
Contractor shall supply and install LPWA Series in-wall mounted forced-air electric heaters manufactured by King Electrical Mfg. Company, of the wattage and voltage as indicated on the plans
Grill: Heavy duty extruded 12 gauge aluminum provides high impact resistance to damage. Grill is attached with tamper-proof screws (hex socket/pinned). All controls are easily accessed through grill with slotted screwdriver. Standard color is anodized silver. Dark bronze or white is available.
Elements: Element assemblies shall consist of steel sheathed heating tubes in a furnace-brazed, plate finned, block design. Each sheathed tube shall contain a coiled Ni-Chrome wire embedded in an insulator of Magnesium Oxide. The element assembly shall provide the specific wattage as indicated.
Built-in Thermostat: Single Pole factory installed hydraulic capillary tube with precision control. Operating range 40 ̊F to 90 ̊F. Thermostat is tamper-proof to prevent unauthorized adjustment.
Fan / Heat / Off-Disconnect Switch: Tamper-proof 3-position switch provides heating and summer fan-only operation. The DPST off switch provides a “positive off” that disconnects all ungrounded conductors. Controls are easily accessed through grill with slotted screwdriver.
Thermal Overload: Heaters shall be equipped with King’s patented thermal overload Smart Limit Protection®, which disconnects elements and motor in the event normal operating temperatures are exceeded. If thermal overload trips due to abnormal operating temperatures, thermal overload shall remain open until manually reset by turning the heater off for 15 minutes.
Fan Delay Switch: The fan continues to operate after the thermostat shuts off in order to remove the residual heat left in the elements.
Motor: Heavy-duty, cast iron, unit bearing, permanently lubricated with 20cc oil reservoir, 1440 RPM. Enclosed impedance protected with intake air cooling motor for increased bearing life.
Fan: High efficiency, dynamically balanced 5-blade aluminum fan. 185 CFM.

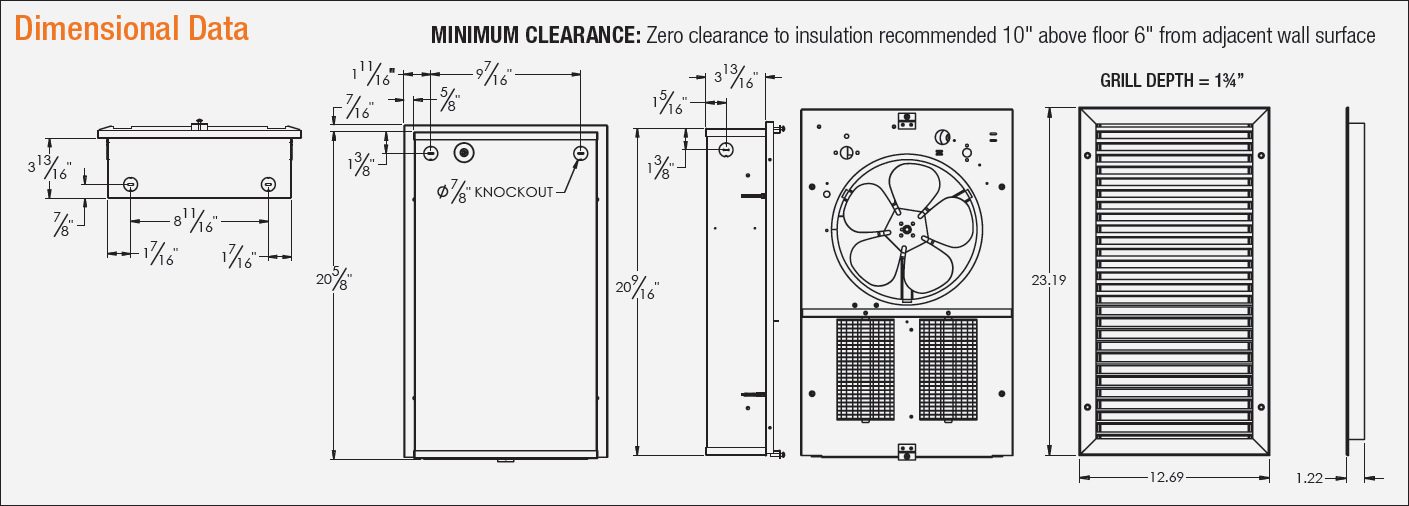

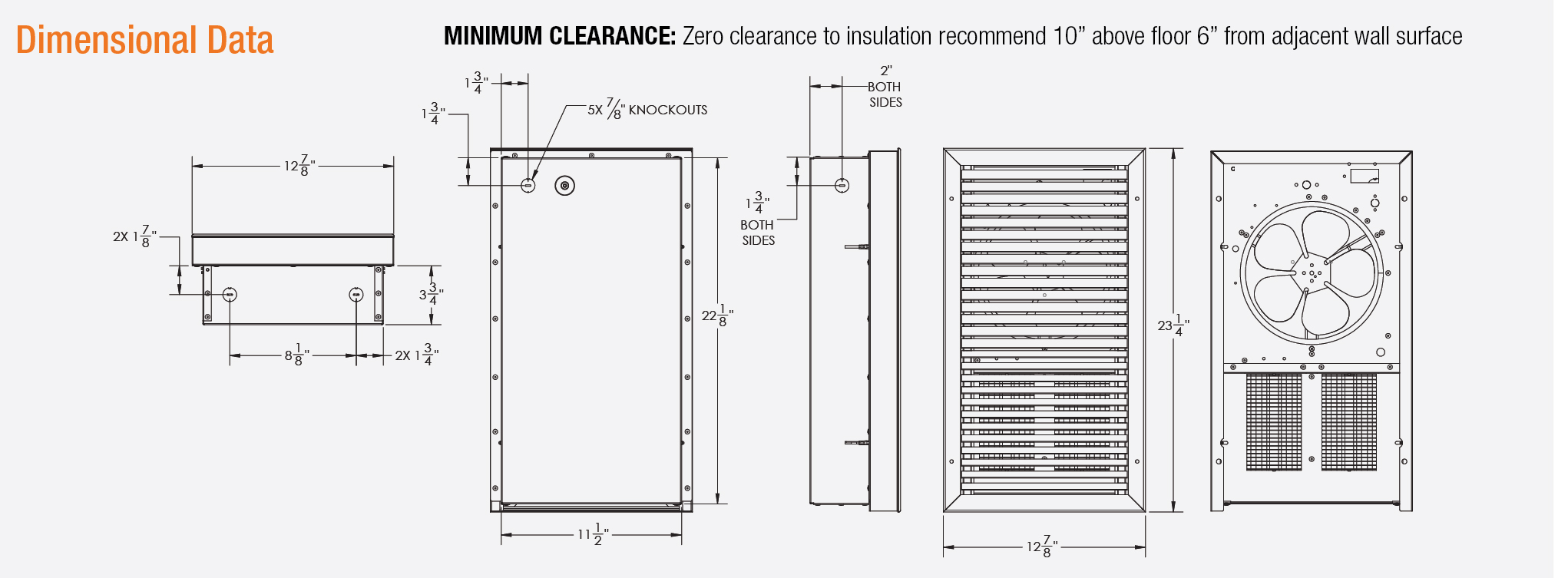

Wall box: 20 gauge electro-galvanized steel. Factory installed ground-wire. Minimum 4” clearance to floors and 6”to sidewalls. Zero clearance to combustibles in the wall. Recommended 10” clearance to floors and 16” to sidewalls.
