High traffic areas, such as detention areas, public rest rooms, rest areas, and any public areas needing vandal resistance are best heated with the LPWV Series. The heavy grill and 3/16″ solid steel frame can withstand heavy impact and abuse. Tamper-resistant screws prevent unauthorized disassembly of the grill. Controls are recessed out of reach of fiddling fingers. Moderate wattage and high airflow capacities replenish entryways and hallways to prevent drafts from entering the building’s core. Minimum and maximum secutirty level 3 & 4.
- Impact/Vandal Resistant
- The Original Pic-A-Watt Elements
- Multiple wattage options, to tailor to a room’s specific heating requirements
- Tamper Resistant 3 Position Switch: Fan/Heat/Off
- 3/16” Plate Steel Grill
- Patented Smart Limit Protection®
- Long Life Unit Bearing Motor
- Available in White and Bronze Finishes
- Proudly Made in the USA with U.S. & Global Materials
- 5-year warranty
Tough Enough To Stand Up To The Bad Guys
The heavy grill and 3/16″ solid steel frame can withstand heavy impact and abuse. Tamper-resistant screws prevent unauthorized disassembly of the grill. Controls are recessed out of reach of fiddling fingers.
Smart Enough To Outwit The Brightest Minds
Moderate wattage and high airflow capacities replenish entryways and hallways to prevent drafts from entering the building’s core.
Available Models
Ordering Information
| MODEL | UPC | VOLTS | WATTS | AMPS | SHIP WEIGHT lbs | Purchase |
|---|---|---|---|---|---|---|
| LPWV1215 | 18286 | 120 | 1250 • 1500 | 10.4-12.5 | 24 | Buy Now |
| LPWV2015 | 18287 | 208 | 500•750•1000•1500 | 2.4-7.2 | 24 | Buy Now |
| LPWV2415 | 18288 | 240/208* | 500•750•1000•1500 | 2.1-6.3 | 24 | Buy Now |
| LPWV2715 | 18289 | 277 | 500•750•1000•1500 | 1.8-5.4 | 24 | Buy Now |
Ordering Information - Options/Accessories
| ADD SUFFIX | DESCRIPTION | WEIGHT lbs |
|---|---|---|
| -BZ | Grill - Bronze | 24 |
| -W | Grill - White | 24 |
| -CT24 | Transformer that converts 208, 240 and 277 Volts to 24 Volt Control Circuit {add power contactor (-CX) for 3kW - 5kW 1-Phase models} | 24.5 |
| -TP | Factory Installed Tamper-proof Thermostat | 24 |
| -CB | Circuit Breaker / Disconnect 20A | 0.5 |
Engineering Specs
Contractor shall supply and install LPWV Vandal Resistant Series in-wall mounted forced-air electric heater manufactured by King Electrical Mfg. Company, of the wattage and voltage as indicated on the plans.

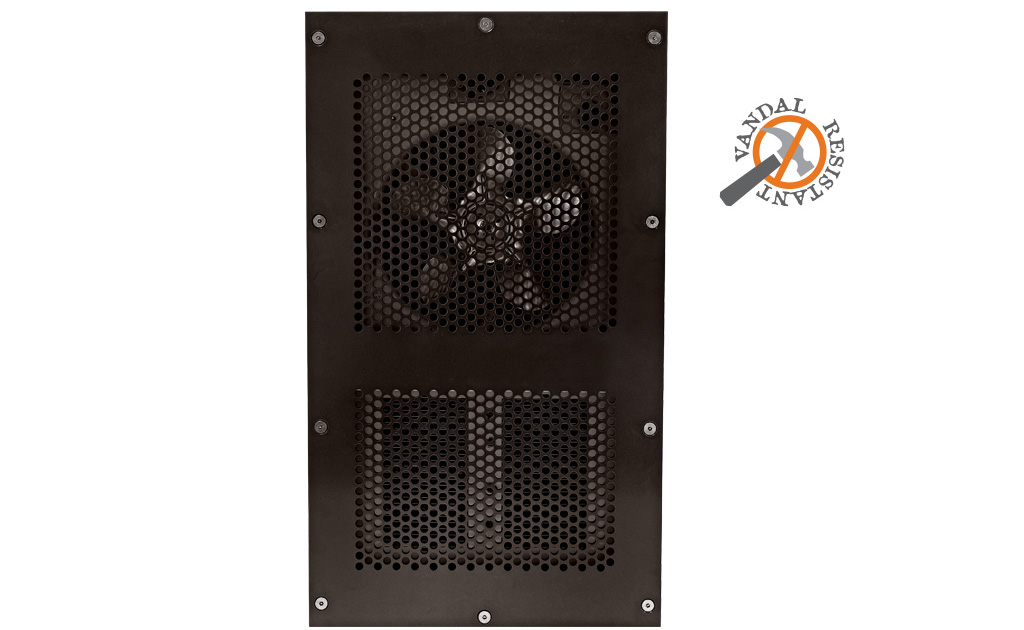

Grill: Heavy 3/16″ thick plate with 5/16″ hole pattern grille provides high impact resistance to damage. Grill is attached with tamper-proof 1/4”-20 screws (hex socket/pinned). All controls are accessed through grill with slotted screwdriver. Standard color is white. Optional dark bronze available.
Elements: Element assemblies shall consist of steel sheathed heating tubes in a furnace brazed, plate-finned, block design. Each sheathed tube shall contain coiled Ni-Chrome wire embedded in an insulator of Magnesium Oxide. The element assembly shall provide wattage configurations available for selection during field installation. The use of external resistors, diodes, or other weak links to obtain multiple wattages will not be accepted.
Optional Built-in Thermostat: Single Pole factory installed hydraulic capillary tube with precision control. Operating range 40oF to 90oF. Thermostat is tamper-proof to prevent unauthorized adjustment.
Fan Delay Switch: The fan continues to operate after the thermostat shuts off in order to remove the residual heat remaining in the elements.
Fan / Heat / Off Switch: Tamper-proof 3-position switch provides heating and summer fan-only operation. The DPST off switch provides a “positive off” that disconnects all ungrounded conductors. Controls are accessed through grill with slotted screwdriver.
Unit Bearing Motor: Permanently lubricated cast iron motor with enclosed rotor provides long-lasting, trouble-free operation and a 20cc oil reservoir. Thermally protected. 1300 RPM.
Thermal Overload: Heaters shall be equipped with King’s patented thermal overload Smart Limit Protection®, which disconnects elements and motor in the event normal operating temperatures are exceeded. If thermal overload trips due to abnormal operating temperatures, thermal overload shall remain open until manually reset by turning the heater off for 15 minutes.

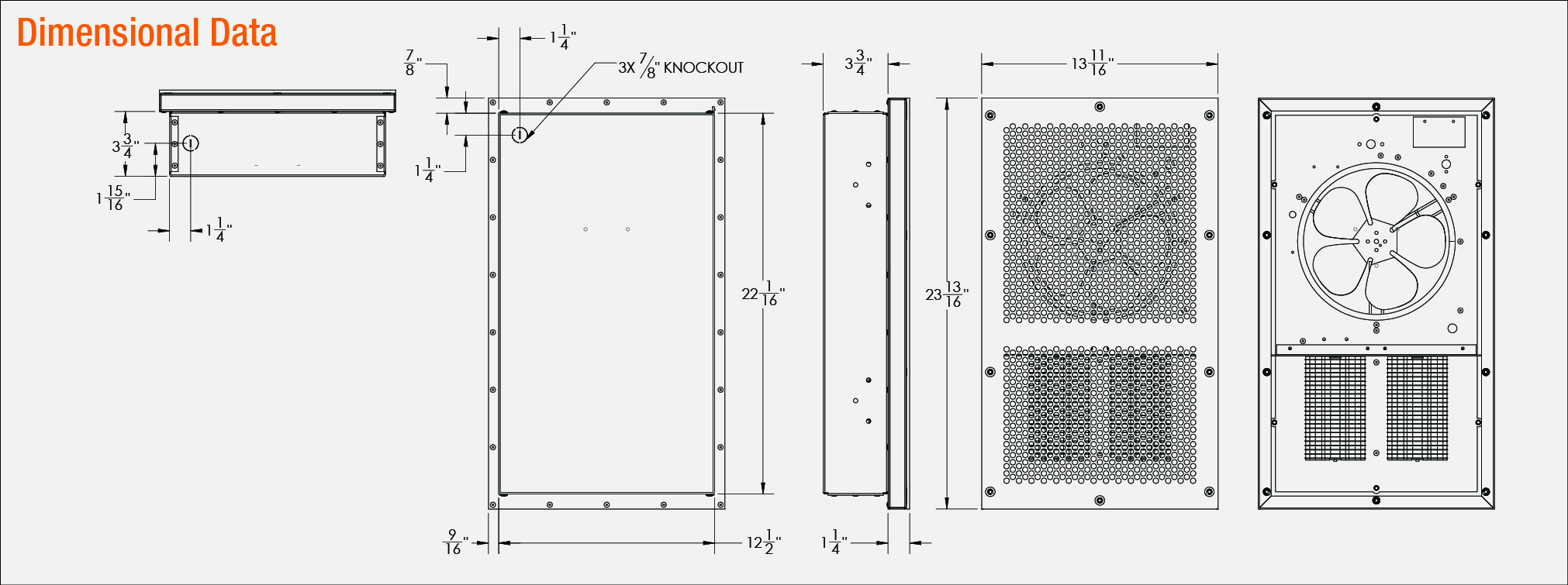

Wall-box: 20 gauge electro-galvanized steel with 18 gauge reinforcements. Factory installed ground-wire. Minimum 4” clearance to floors and 6” to sidewalls. Zero clearance to combustibles in the wall. Recommended 10” clearance to floors and 16” to sidewalls.Optional Circuit Breaker / Disconnect
Approvals: cULus
