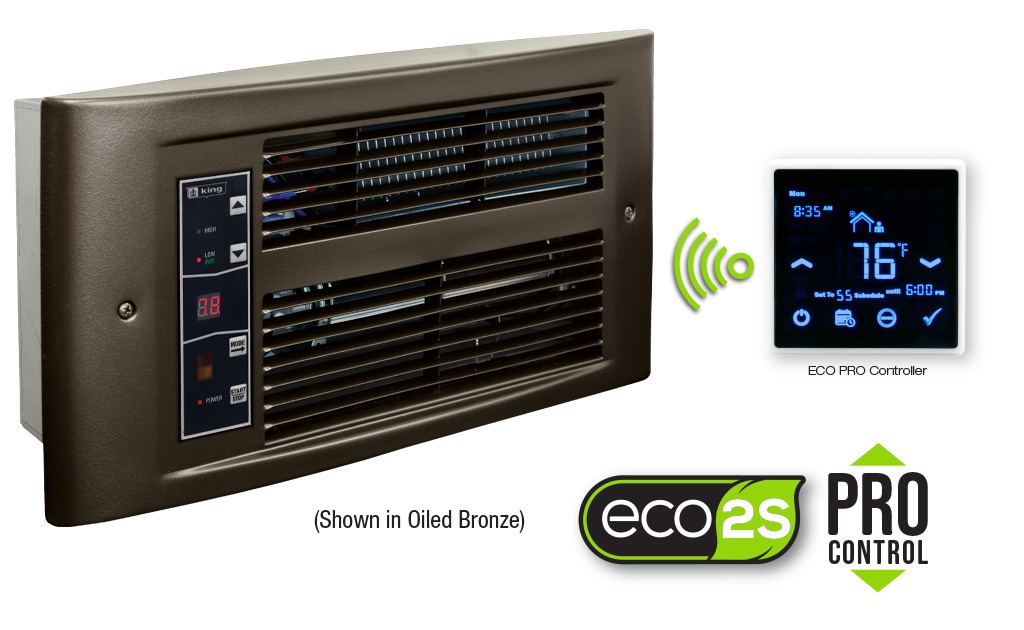

The PX ECO2S PRO Smart Wall Heater, delivers next-level comfort control with the powerful ECO PRO Remote Thermostat, featuring a 7-day programmable heating schedule that puts personalized comfort right at your fingertips. Simply set different heating profiles for each day of the week, aligning comfort with daily routines while optimizing energy efficiency.
At the core of the system is the original ECO2S electronic controller, which ensures consistent warmth by minimizing temperature swings. During colder periods, it delivers full power to heat the room quickly, then automatically reduces wattage to maintain the set temperature while saving energy.
The ECO PRO Remote Thermostat, equipped with an integrated temperature sensor, can be placed anywhere in the room to eliminate cold spots and ensure precise temperature control exactly where it’s needed. Additional smart features include summer fan-only and timer modes, remote temperature adjustments, and King’s exclusive Pic-A-Watt heating element, allowing installers to easily select the ideal wattage during setup. An integrated BMS lockout circuit enables seamless integration with Building Management Systems, preventing the heater from operating during cooling cycles.
The PX ECO2S PRO is also compatible with optional wired or wireless RF window/door and occupancy sensors, automatically setting back temperatures when windows are open or when the room is unoccupied. With its intuitive programming, energy-saving design, and advanced sensing capabilities, the PX ECO2S PRO redefines smart electric heating with comfort that adapts to your life.
Now That’s Smart!

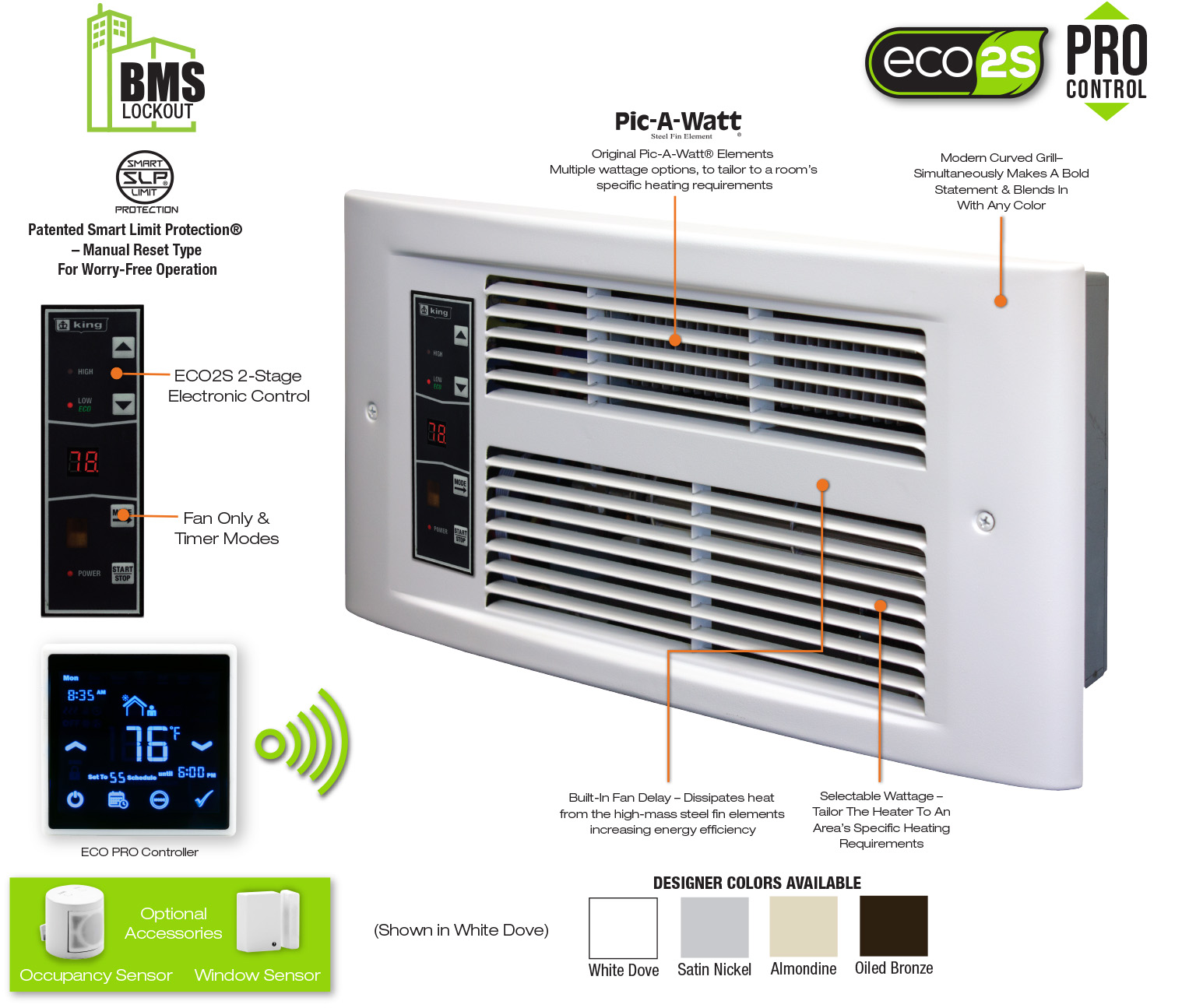

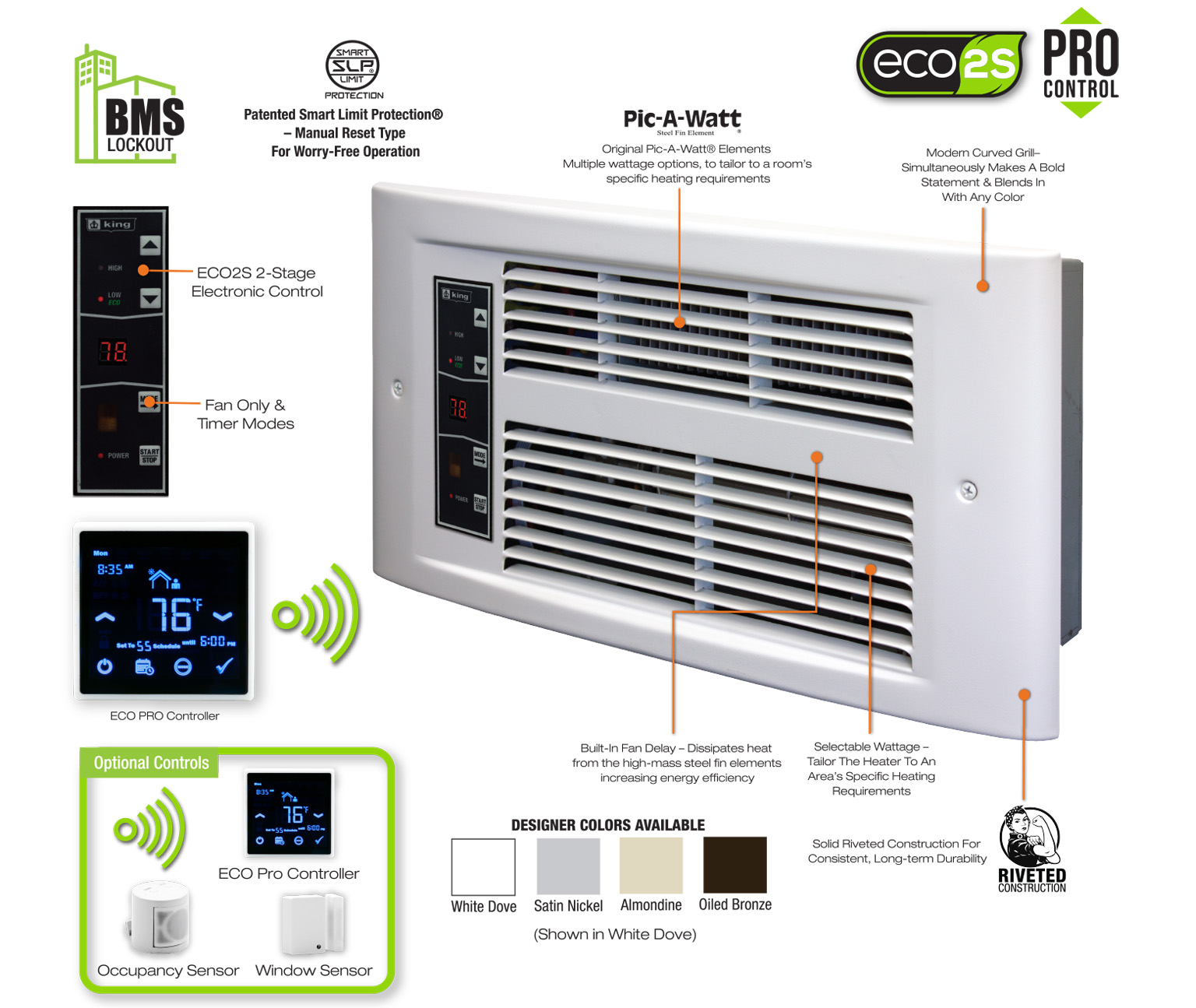

- Smart ECO2S® Energy-Saving Design
- 2-Stage Heating: Automatically Uses Lowest Wattage Needed
- Eco Pro Controller with 7-Day Programmable Heating Schedule
- Thermostat Temperature Range: 40℉ to 95℉
- Eco Pro Controller Features Integrated Temperature Sensor, So Your ECO2S Heater Knows Exactly Where the Room's Cold Spot is & Works Smarter to Keep the Entire Room Comfortable. Just Place It On a Wall or Shelf & Get the Right Temperature, Right Where You Want It.
- Integrated BMS Lockout Circuit
- Auto Memory Feature: Returns Unit To Last Settings After Power Outage
- Pic-A-Watt® Selectable Wattage Element
- Multiple Wattage Options, to Tailor to a Room’s Specific Heating Requirements
- Patented Smart Limit Protection®
- Whisper Quiet Squirrel Cage Blower
- Timer & Summer Fan Only Modes
- Compatible With Optional Wired Or Wireless RF Window/Door/Occupancy Sensors
- Display Lock Feature For High Traffic Areas
- Bedroom "Environment" Feature, Turns Off The Display When Not In Use
- Available in (4) New Designer Finishes
- Proudly Made in the USA with U.S. & Global Materials
- 5-Year Limited Warranty

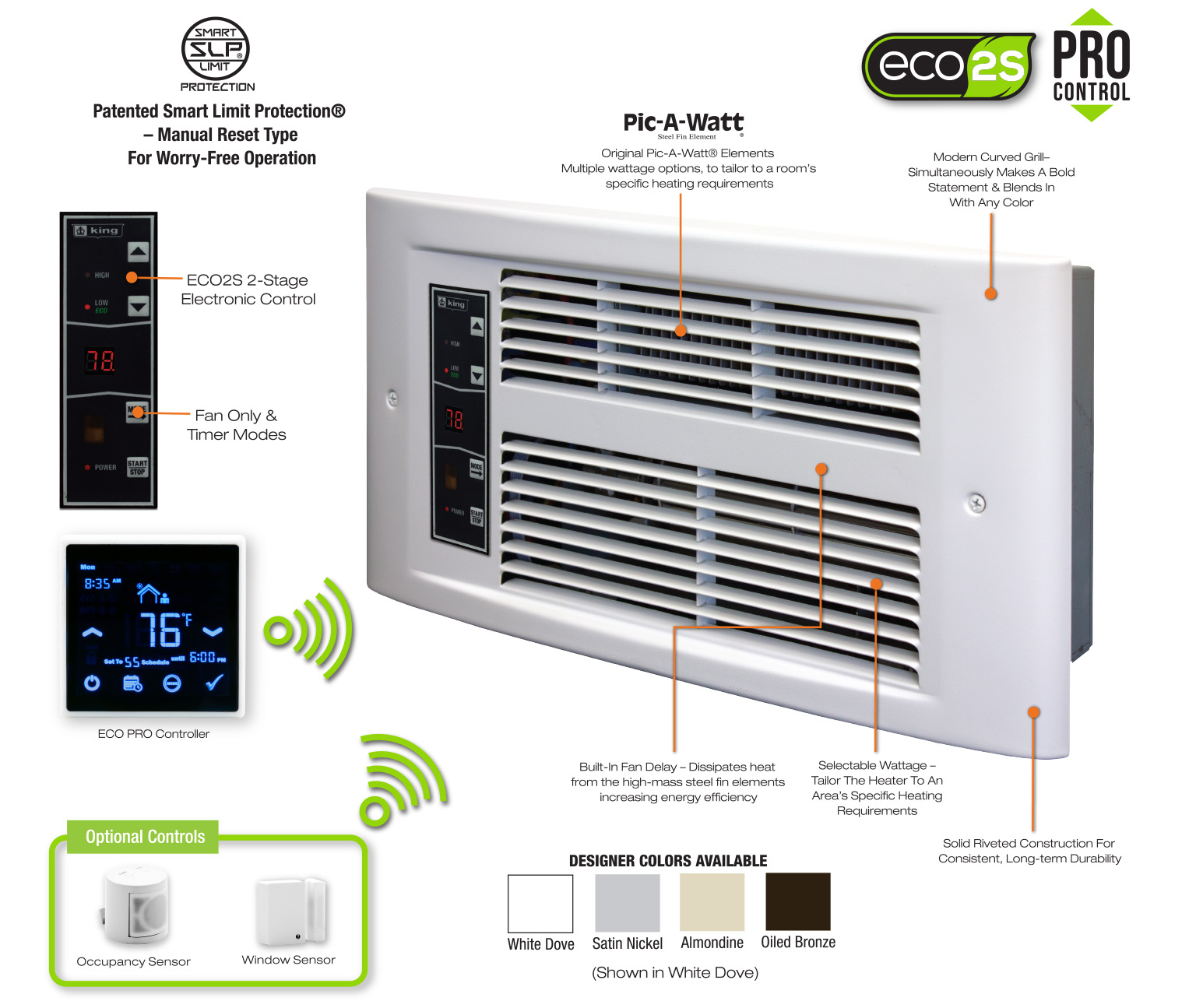

Product Features
Meet The ECO PRO Controller & Schedule Your Comfort Within Ease
With the new ECO PRO Controller, users gain the flexibility of an RF Wireless 7-Day Programmable Thermostat with an integrated temperature sensor. The heater monitors room conditions, detects cold spots, and automatically adjusts to maintain consistent comfort. Simply place on a wall or shelf to ensure the ideal temperature exactly where you need it
Expand Control With Optional Window/Door & Occupancy Sensors
Compatible with both optional wired or wireless window/door and occupancy sensors, reducing energy waste by setting back the temperature when a space is unoccupied or when a window or door is left open. Multiple heaters can also be paired to a single ECO PRO Controller, creating smart heating zones within a space for optimal comfort and control.
Display Lock Feature For High Traffic Areas
ECO2S is powerful enough to prevent tampering of the settings in high traffic areas. Simply set the Display Lock mode and it deactivates the button on the display, while the remote control is still functional for the facilities management staff.
Freedom of Color
You know what it feels like when you walk into a well-designed building. Combine colors, materials, lighting, and now even designer heating fixtures to achieve the ambiance that fits your building. Choose from one of our dynamic designer colors, inspired by the architecture around us.

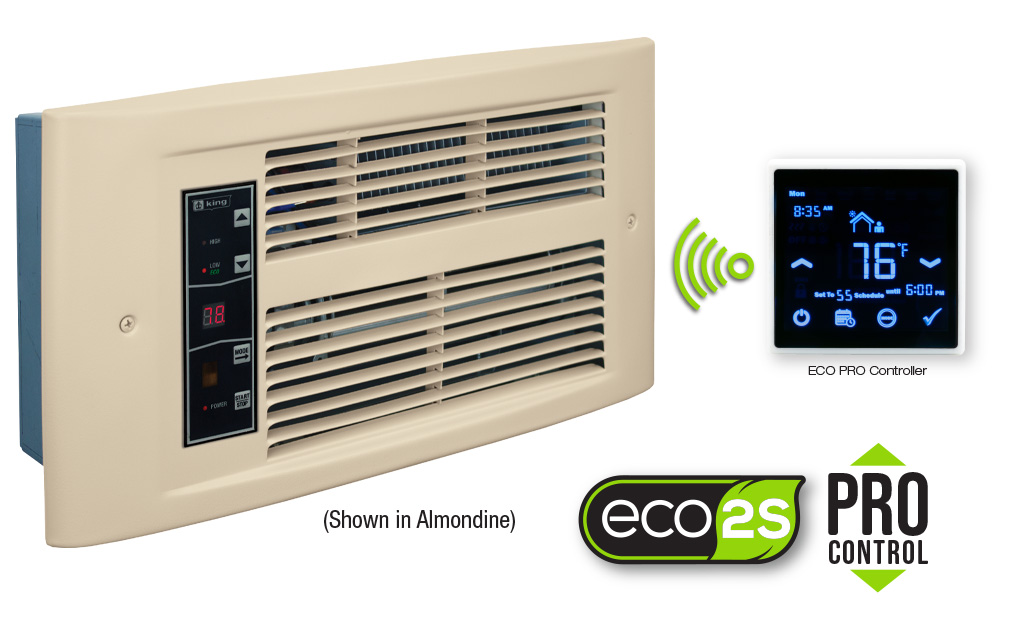

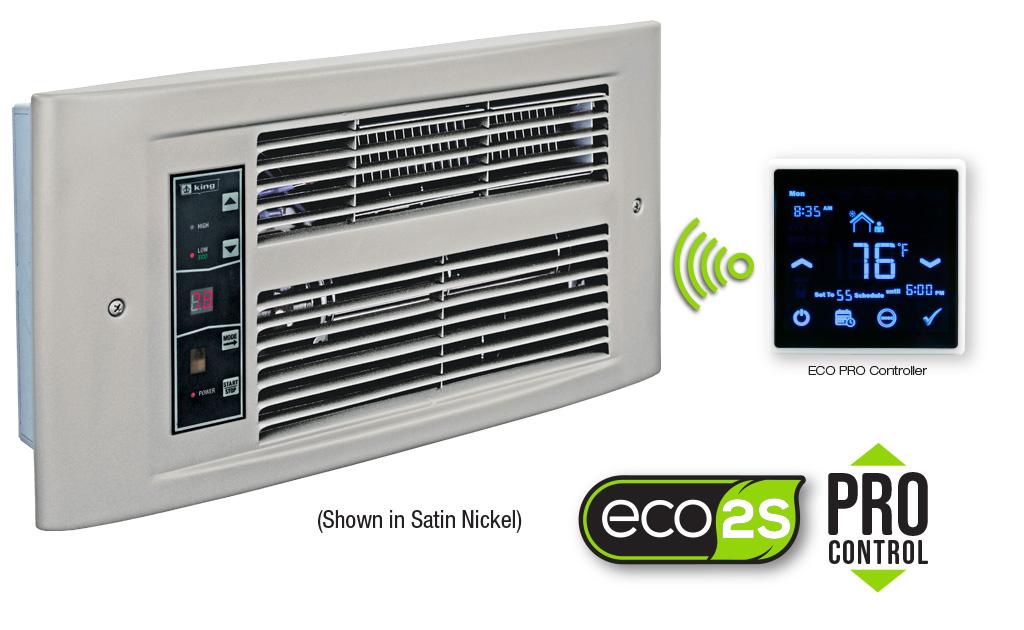

White Dove – Almondine – Satin Nickel – Oiled Bronze
The Original Pic-A-Watt® Multi-Wattage Element
King’s exclusive Pic-A-Watt element means the heater can easily be tailored to a room’s specific heating requirements. For smaller areas, choose a lower wattage to efficiently heat the room. For larger rooms, choose a higher wattage and maximize comfort. It’s easy as unplugging a wire to select the wattage during installation.
Available Models
Complete Stock Models - Ordering Information
| BASE MODEL | UPC | PRO CONTROLLER | VOLTS | COLOR | WATTS | AMPS | SHIP WEIGHT lbs |
|---|---|---|---|---|---|---|---|
| PX1215-ECO2S-PRO- WD | 70411 | Included | 120 | White Dove | 750-1000-1250-1500 | 6.25 - 12.5 | 12.5 |
| PX2017-ECO2S-PRO-WD | 70412 | Included | 208 | White Dove | 750-1000-1250-1500-1750 | 3.6 - 8.4 | 12.5 |
| PX2417-ECO2S-PRO-WD | 70413 | Included | 240/208* | White Dove | 750-1000-1250-1500-1750 | 3.1 - 7.3 | 12.5 |
Factory Installed Options
| ADD SUFFIX | DESCRIPTION |
|---|---|
| -WD | White Dove Color |
| -SN | Satin Nickel Color |
| -AD | Almondine Color |
| -OB | Oiled Bronze Color |
Ordering Information - Optional Control Accessories
| MODEL | UPC | DESCRIPTION | SHIP WEIGHT lbs |
|---|---|---|---|
| ECO-PRO-RF-PIR-SENSOR | 70422 | Optional, RF Battery Powered PIR Occupancy Sensor for ECO Models | 0.2 |
| ECO-PRO-RF-WINDOW-SENSOR | 70423 | Optional, RF Battery Powered PIR Window or Door Sensor for ECO Models | 0.2 |
| ECO-PRO-CONTROLLER | 70421 | Replacement Pro Controller - 7-Day Programmable Thermostat/Remote Sensor/Remote | 0.2 |
Ordering Information - Accessories
| MODEL | UPC | DESCRIPTION | SHIP WEIGHT lbs | Purchase |
|---|---|---|---|---|
| PX-RP | 32699 | PX ECO2S, Rough-In Plate for New Construction, (10 sets per Box) | 6 | Buy Now |
| PXSMF-WD | 32695 | PX ECO2S, Surface Mount Frame, White Dove Color | 2.4 | Buy Now |
| PXSMF-AD | 32696 | PX ECO2S, Surface Mount Frame, Almondine Color | 2.4 | Buy Now |
| PXSMF-SN | 32697 | PX ECO2S, Surface Mount Frame, Satin Nickel Color | 2.4 | Buy Now |
| PXSMF-OB | 32698 | PX ECO2S, Surface Mount Frame, Oiled bronze Color | 2.4 | Buy Now |
| PXIC | 32704 | PX ECO2S, Wall Can | 3 | Buy Now |
Engineering Specs
Contractor shall supply and install PX ECO2S PRO Series electronic in-wall forced-air electric heaters manufactured by King Electrical Mfg. Company, of the wattage and voltage as indicated on the plans.
Ratings: Heaters shall be available in wattages of 750 to 1,750 at 120 or 750-1750 at 208, or 240 Volts.
ECO2S Electronic Thermostat Control: Thermostat Temperature Range: 40℉ to 95℉. Up, Down temperature mode. Automatic 2-Stage heating (High & ECO Modes). Start/Stop. Fan Only and Timer (1-9hours) Modes. Standard on all heaters. The control voltage is equal to the line voltage.
ECO2S PRO Remote 7-Day Thermostat: RF 2.4G RF Wireless Protocol. 7-day programmable touch sensitive thermostats with an integrated temperature sensor for balanced heating at the coldest spot in the room.. Enables custom 7-day programmable heating schedules, functions as both a remote temperature sensor and a handheld remote control for heater operation.
Auto Memory Feature: Returns Unit To Last Settings After Power Outage
Blower and Motor: A whisper quiet tangential blower, delivering 75 CFM, shall be driven by a shaded pole, permanently lubricated, C-frame type motor with impedance protection and sealed bearings. Motors shall be the same voltage as the heater.
Elements: Element assemblies shall consist of three steel sheathed heating tubes in a furnace-brazed, plate-finned, block design. Each sheathed tube shall contain coiled Ni-Chrome wire embedded in an insulator of Magnesium Oxide. The element assembly shall provide up to seven (7) possible wattage configurations available for selection during field installation. The use of external resistors, diodes, or other weak links to obtain multiple wattages will not be acceptable.
Thermal Overload: Heaters shall be equipped with King’s patented thermal overload Smart Limit Protection®, which disconnects the elements and motor in the event normal operating temperatures are exceeded. If thermal overload trips due to abnormal operating temperatures, thermal overload shall remain open until manually reset by turning the heater off for 15 minutes. Automatic reset of thermal overloads, which allow the element to continue to cycle under abnormal conditions, will not be accepted.
Grill: The grill shall be a louvered, one-piece curved front design with rounded edges on all four sides, with duct flange outlet to achieve maximum heat transfer. The grill shall be epoxy powder-coated in white dove, almondine, satin nickel or oiled bronze.
Wall Can: The wall can shall be 20 gauge electro-galvanized steel and shall contain a minimum of three (3) knockouts. The wall can shall have a factory installed, insulated and stranded copper ground-wire. Minimum 4”clearance to floors and 6”sidewalls. Zero clearance to combustibles in the wall.
Approvals: cULus (E41422)
