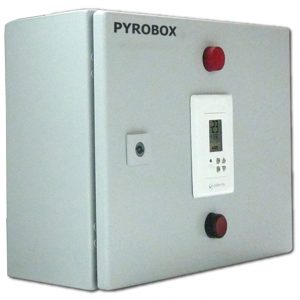

A smart, user friendly, efficient controller for Ice and Snow melt applications. Upon receiving a signal from the snow sensor/s, activate up to 5 electrical heating elements. A DIP switches configuration, activate the 5 zones, either continuously or according to a customized zones sequencing.
Integration to B.M.S. by BACNET or MODBUS over RS485 communication line.
- Main Pyro Pipe Trace Controller & User Interface
- Up to 5 Zones Activation
- Interface to B.M.S and Smart-Home Using BACNET and MODBUS Over RS495
- For Industrial or Residential Use
- Imported to King Specifications
Available Models
Ordering Information - Pyro Pipe Trace Controls
| MODEL | UPC | Description |
|---|---|---|
| PYROBOX3C/19 TRACE | 33768 | 3 Zone Controller, 2-50A/3P Contactors, 3-Phase, 600V Max +1 Zone Aux Controller, 1-30A/1P Contactor, 1-Phase, 300V Max |
| PYROCON19 TRACE | 33763 | Controller and User Interface panel |
* Controls and thermostats should always be used with King heating systems.
