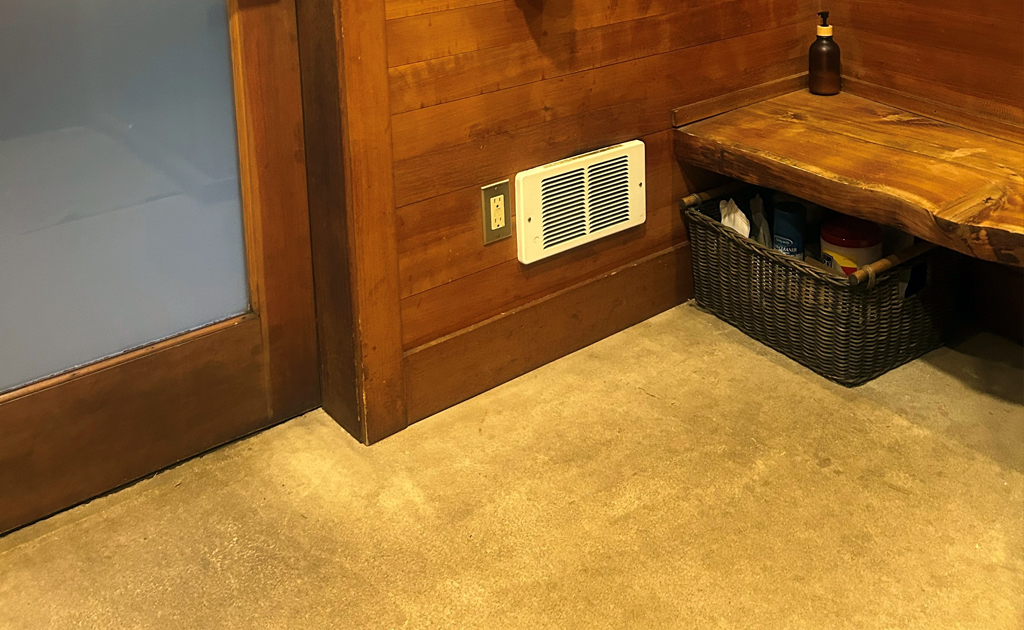

The Original Multi-Watt steel fin heater and our most popular heater for single family residences and upscale condominiums. King’s exclusive Pic-A-Watt steel fin element allows customers to select from a range of wattage options, tailoring the heater to an area’s specific heating requirements. Perfect for large living areas yet whisper quiet enough for bedrooms. The premium combination of an efficient high-mass steel element and whisper quiet squirrel cage blower, offers top of the class performance and years of trouble-free operation. PAW comes with five year warranty and 30+ year history of reliability.
- Original Pic-A-Watt® Element
- Multiple Wattage Options, to Tailor to a Room’s Specific Heating Requirements
- Patented Smart Limit Protection®
- Whisper Quiet Squirrel Cage Blower
- Wall Can w/ QuickSet™ Stud Tabs
- Proudly Made in the USA with U.S. & Global Materials
- 5-Year Limited Warranty
Product Features

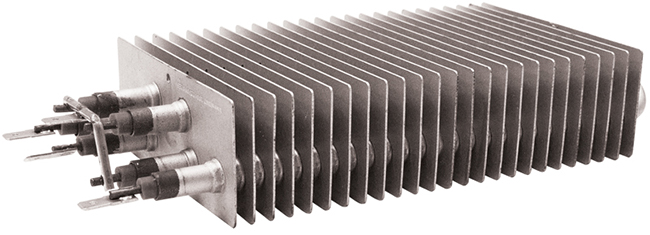

The Original Pic-A-Watt Element® Multi-Wattage Element
King’s exclusive Pic-A-Watt element means the heater can easily be tailored to a room’s specific heating requirements. For smaller areas, choose a lower wattage to efficiently heat the room. For larger rooms, choose a higher wattage and maximize comfort. It’s easy as unplugging a wire to select the wattage during installation.
Now That’s Smart!
Durability
American Made Comfort Since 1958.
Now That’s Smart!
Available Models
Ordering Information
| BASE MODEL | VOLTS | WATTS | AMPS | SHIP WEIGHT lbs | Purchase |
|---|---|---|---|---|---|
| PAW1215-W | 120 | 250-500-750-1000-1250-1500 | 2.1 - 12.5 | 9.5 | Buy Now |
| PAW1215-SS | 120 | 250-500-750-1000-1250-1500 | 2.1 - 12.5 | 9.6 | Buy Now |
| PAW2022-W | 208 | 500-750-1000-1250-1500-1750-2250 | 2.4 - 10.8 | 9.5 | Buy Now |
| PAW2422-W | 240/208* | 500-750-1000-1250-1500-1750-2250 | 2.1 - 9.4 | 9.5 | Buy Now |
| PAW2720-W | 277 | 1000-2000 | 3.6 - 7.2 | 9.5 |
Ordering Information - Factory Installed Options
| ADD SUFFIX | DESCRIPTION | SHIP WEIGHT lbs |
|---|---|---|
| -W | White Color | |
| -A | Almond Color | |
| -SS | Stainless Steel Grill | |
| -H | Interior Only (no can or grill) | 7.5 |
| -I | Interior and Grill Only (no wall can) | 7.5 |
Order A'la Carte Step 1 - Ordering Information
| ADD SUFFIX | DESCRIPTION | SHIP WEIGHT lbs |
|---|---|---|
| -I | Heatbox Interior and Grill | 7 |
| -H | Heatbox Interior | 7 |
Order A'la Carte Step 2 - Ordering Information
| MODEL | UPC | DESCRIPTION | SHIP WEIGHT lbs | Purchase |
|---|---|---|---|---|
| PAWIC | 515 | Recess Wall Can | 2.5 | Buy Now |
| PAWIC-RF | 14033 | Recess Wall Can - Right Hand Feed | 2.5 | |
| PAWF | 16319 | Recess Can with Flange (remodel) | 2 | |
| PAWS-W | 16305 | Surface Can - White - 13.5" L x 4.5" W x 7.5" H (Zero Clearance to Floor) | 5.5 | Buy Now |
| PAWS-A | 19298 | Surface Can - Almond - 13.5" L x 4.5" W x 7.5" H (Zero Clearance to Floor) | 5.5 | |
| PAWF-SS | 16318 | Marine Recess Can with Flange - Stainless Steel (remodel) | 2 | Buy Now |
| PAWS-SS | 16317 | Surface Can - Stainless Steel- 13.5" L x 4.5" W x 7.5" H (Zero Clearance to Floor) | 5.5 | Buy Now |
Order A'la Carte Step 3
| MODEL | UPC | DESCRIPTION | SHIP WEIGHT lbs |
|---|---|---|---|
| PAWG-W | 16304 | Grill - White | 1 |
| PAWG-A | 16335 | Grill - Almond | 1 |
| PAWG-BLACK | 16355 | Grill - Black | 1 |
| PAWG-SS | 16330 | Grill - Stainless Steel | 1 |
| PAWOG-A-W | 555 | 13" H x 13.5" W x .5" D Retrofit Grill -White (Size A) | 3 |
| PAWOG-B-W | 560 | 8.5" H x 17" W x .5" D Retrofit Grill -White (Size B) | 3 |
| PAWOG-A-A | 0 | 13" H x 13.5" W x .5" D Retrofit Grill -Almond (Size A) | 3 |
| PAWOG-B-A | 562 | 8.5" H x 17" W x .5" D Retrofit Grill -Almond (Size B) | 3 |
Ordering Information - Accessories
| MODEL | UPC | DESCRIPTION | SHIP WEIGHT lbs | Purchase |
|---|---|---|---|---|
| TKIT-1BW | 20654 | Built-in Single Pole Single Throw Thermostat Kit, Bright White | 0.5 | Buy Now |
| TKIT-2BW | 20655 | Built-in Double Pole Single Throw Thermostat Kit, Bright White | 0.5 | Buy Now |
| TKIT-1B | 17346 | Built-in Single Pole Single Throw Thermostat Kit, Black | 0.5 | Buy Now |
| TKIT-2B | 17347 | Built-in Double Pole Single Throw Thermostat Kit, Black | 0.5 | Buy Now |
| TKIT-1A | 20613 | Built-in Single Pole Single Throw Thermostat Kit, Almond | 0.5 | Buy Now |
| TKIT-2A | 20614 | Built-in Double Pole Single Throw Thermostat Kit, Almond | 0.5 | Buy Now |
| TKIT-1-TP | 11056 | Built-in Tamper Proof Single Pole Single Throw Thermostat Kit | 0.4 | Buy Now |
| TKIT-2-TP | 11057 | Built-in Ramper Proof Double Pole Single Throw Thermostat Kit | 0.4 | Buy Now |
| DS15 | 13824 | Disconnect Switch, Field Installed Kit, 10Amp 240V/15A 120V | 0.5 | Buy Now |
Engineering Specs
Contractor shall supply and install PAW Series in-wall forced-air electric heaters manufactured by King Electrical Mfg. Company, of the wattage and voltage as indicated on the plans.
Ratings: Heaters shall be available in wattages of 250 to 2,250 at 120, 208, 240, or 277 Volts.
Blower and Motor: A whisper quiet tangential blower, delivering 75 CFM, shall be driven by a shaded pole, permanently lubricated, C-frame type motor with impedance protection and sealed bearings. Motors shall be the same voltage as the heater.
Elements: Element assemblies shall consist of three steel sheathed heating tubes in a furnace-brazed, plate-finned, block design. Each sheathed tube shall contain coiled Ni-Chrome wire embedded in an insulator of Magnesium Oxide. The element assembly shall provide up to seven (7) possible wattage configurations available for selection during field installation. The use of external resistors, diodes, or other weak links to obtain multiple wattages will not be acceptable.
Thermal Overload: Heaters shall be equipped with King’s patented thermal overload Smart Limit Protection®, which disconnects elements and motor in the event normal operating temperatures are exceeded. If thermal overload trips due to abnormal operating temperatures, thermal overload shall remain open until manually reset by turning the heater off for 15 minutes. Automatic reset of thermal overloads, which allow the element to continue to cycle under abnormal conditions, will not be accepted.
Grill: The grill shall be a louvered, one-piece design with rounded edges on all four sides, with rounded corners to prevent snags from contact with other materials. The grill shall be epoxy powder-coated in white or almond.
Wall Can: The wall can shall be 20 gauge electro-galvanized steel and shall contain a minimum of three (3) knockouts. The wall can shall have a depth gauge indicator, and a factory installed, insulated and stranded copper ground-wire. Minimum 4”clearance to floors and 6” sidewalls. Zero clearance to combustibles in the wall.
Approvals: cULus (E41422)
